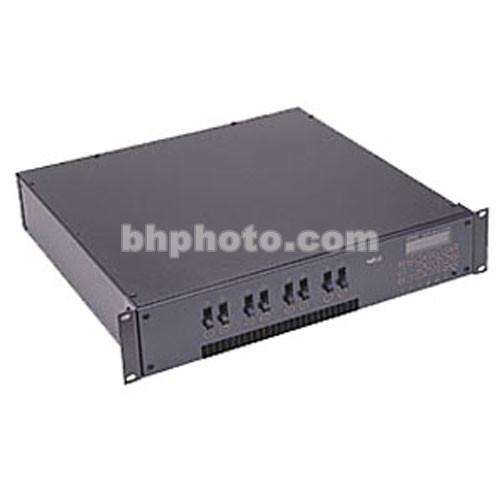

User Manual for NSI Leviton DS8-12 8 Channel Dimmer Pack, 1200W Per Channel - 9600W - Edison Connector Click to enlarge the picture
Contents of the user manual for the NSI Leviton DS8-12 8 Channel Dimmer
- Product category: Dimmers NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Dimmers
|
User manual for the NSI Leviton DS8-12 8 Channel Dimmer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description The NSI/Leviton DS8-12 8 Channel Dimmer Pack, 1200W Per Channel - 9600W - Edison Connector (120VAC) has a 20 button function keypad, programmable time fade presets and programmable bump buttons. It has dual control input: NSI Microplex (3 pin XLR), and DMX512 (5 pin XLR) for full versatility. A termination switch is mounted on the front panel. This 120 volt, 40 amp model has Edison Plug terminals for light fixtures. Suggested users include touring groups, or theatres where complete pack removal is difficult or impossible. - Easy Maintenance
- Dimmer and Control Modules are easily serviced using removable front panel while dimmer remains in rack.
- Easy to Read Display
- 16 Character X 2 line backlit liquid crystal display.
- Safety
- Magnetic circuit breakers and voltage regulation
- Digitally Controlled
- Valid DMX and NSI Microplex Signal Indicators
- Analog Control
- 0-10VDC Analog Control Inputs
- Calibration
- Full On Test/Focus
- Compact
- Occupies only 2- 19" wide rack spaces
In the Box NSI / Leviton DS8-12 8 Channel Dimmer Pack, 1200W Per Channel - 9600W - Edison Connector (120VAC) DMX512 Control Input (5 Pin XLR) NSI Micro-Plex Control Input (3 pin XLR) NSI Luma-Net Architectural Control Input 0-10VDC Analog Control Input 120VAC Power Cord 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton DS8-12 8 Channel Dimmer Pack, 1200W Per Channel - 9600W - Edison Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton NDS084001E0 Specs Channels | 8x 1200W | Maximum Power | 9,600W 2 Pole 40 amp power feed | Filtering | 400 Microsecond toroidal filtering | Presets | 400 Programmable time fade presets | Dimming | 10,000 AIC branch rated fully magnetic circuit breakers 8 Channel/single phase power operation 1 Output per dimmer | Display | Liquid crystal display (2 line backlit 16 character) | Keypad | 20 Button function keypad | Input Power | 120VAC | Rack Space | 2x 19" (48.26 cm) | Dimensions | 17.2 (Chassis width) x 17.15 x 3.5" (43.69 x 43.56 x 8.89 cm) 19 (Total width) x 17.15 x 3.5" (43.69 x 43.56 x 8.89 cm) | Weight | Not specified by manufacturer | | Box Dimensions (LxWxH) | 23.25 x 21.25 x 8.38" |
