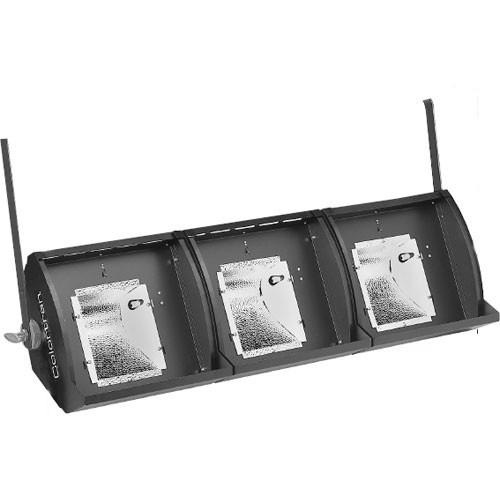

Product description

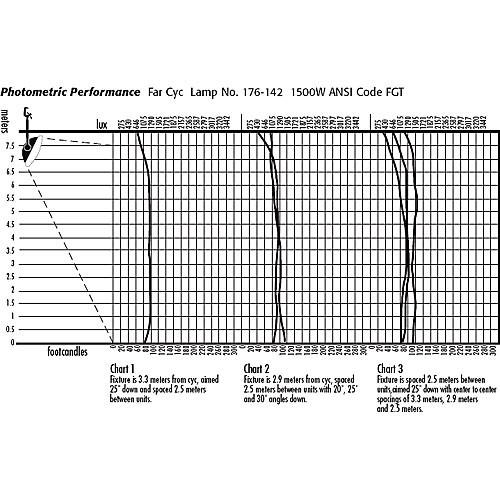

The NSI/Leviton Far Cyc series is a 1500 watt maximum per section theatrical light designed to provide a broad wash of light. Often, a Cyc Light is used in pairs -- one as a footlight, one as a hanging fixture, to provide even light coverage.Each Far Cyc section will uniformly illuminate 40 vertical feet of cyc on 12' (3.6 m) centers,
10' (3.3 m) from the cyc.
    Efficient
  • Power consumption is 50% less than other brands of cyc lights.
    Safe
  • Socket assembly is UL listed, steatite insulated, rated for 600 volts, 3000 watts,
    200°C continuous operation
    Housing
  • Constructed of sheet steel with black enamel finish, with a heavy steel yoke,
    malleable painted iron C-Clamp with 2" jaw.
    Color Frame
  • Unique design permits uniform radiation over your gels. Uneven fading is eliminated.
In the Box NSI / Leviton Far Cyc - Four Sections (120VAC)
  • 3' Cable, Stage Pin Plug
  • 2" C-Clamp
  • One Year Manufacturer's Warranty
  • Note: Bulbs not included Table of Contents




    Upload User Manual

    Have you got an user manual for the NSI Leviton Far Cyc - Four Sections in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    NSI / Leviton Far Cyc Specs

    Rating Each Section: 1500 watts max, 220VAC
    Socket (Lampholder) R7s, double-ended
    Lens (Condenser) Not Applicable
    Reflector (Mirror) Specular random patterned aluminum
    Mounting C-Clamp with 2" jaw
    Yoke Heavy iron
    Cable 3' wire, Stage Pin Plug
    Focusing Not Applicable
    Weight 38 lbs (17.2 kg)

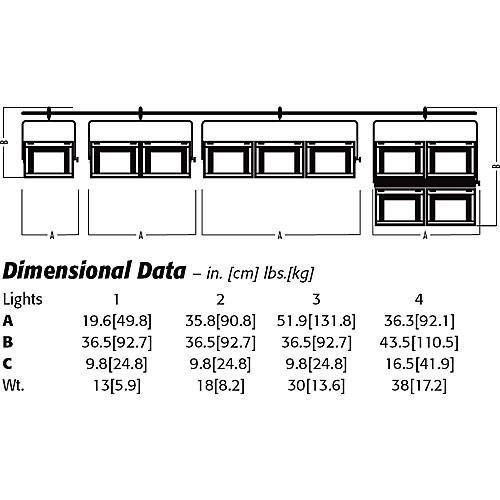

    Dimensions 36.3 x 43.5 x 16.5" (92 x 110.5 x 42 cm)
