User Manual for NSI Leviton Far Cyc - One Circuit Click to enlarge the picture
Contents of the user manual for the NSI Leviton Far Cyc - One
- Product category: Stage & Studio NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Stage & Studio
|
User manual for the NSI Leviton Far Cyc - One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|

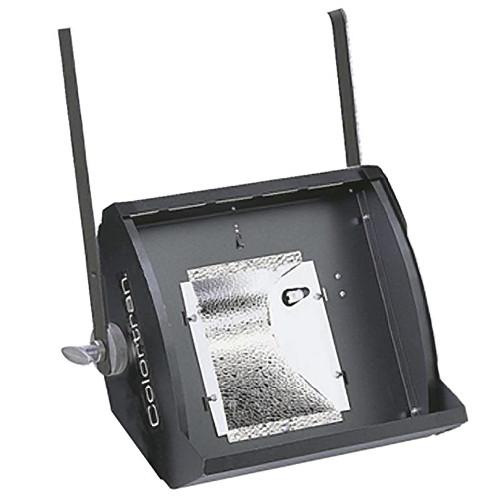

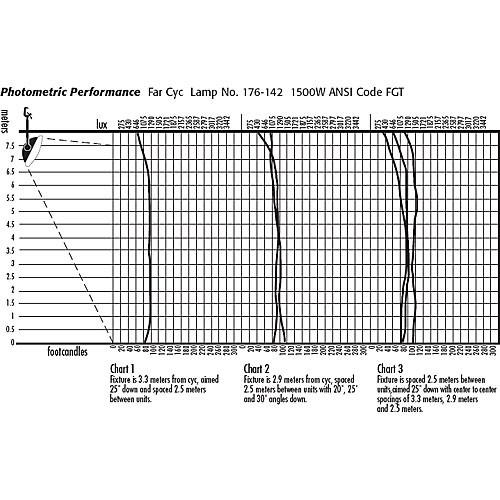

Product description The NSI/Leviton Far Cyc series is a 1500 watt maximum per section theatrical light designed to provide a broad wash of light. Often, a Cyc Strip is used in pairs -- one as a footlight, one as a hanging fixture -- to provide even light coverage.Each Far Cyc section will uniformly illuminate 40 vertical feet of cyc on 12' (3.6 m) centers, 10' (3.3 m) from the cyc. - Efficient
- Power consumption is 50% less than other brands of cyc lights.
- Safe
- Socket assembly is UL listed, steatite insulated, rated for 600 volts, 3000 watts,
200°C continuous operation - Housing
- Constructed of sheet steel with black enamel finish with a heavy steel yoke,
malleable painted iron C-Clamp with 2" jaw. - Color Frame
- Unique design permits uniform radiation over your gels. Uneven fading is eliminated.
In the Box NSI / Leviton Far Cyc - One Circuit (120VAC) 3' Cable, Bare Leads 2" C-Clamp One Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Far Cyc - One Circuit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

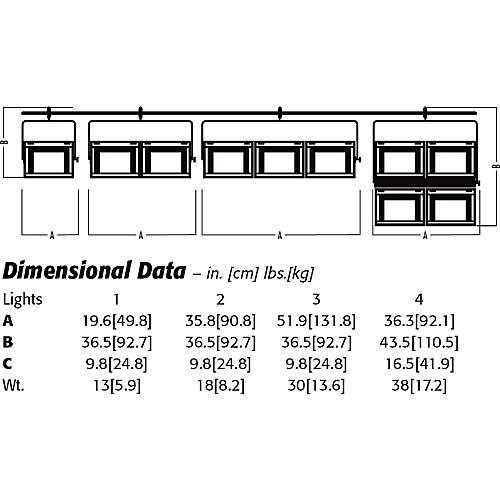

Technical parametersNSI / Leviton Far Cyc Specs Rating | 1500 watts max, 120VAC | Socket (Lampholder) | R7s, double-ended | Lens (Condenser) | Not Applicable | Reflector (Mirror) | Specular random patterned aluminum | Mounting | C-Clamp with 2" jaw | Yoke | Heavy iron | Cable | 3' wire, bare leads | Focusing | Not Applicable | Weight | 13 lbs (5.9 kg) | Dimensions | 19.6 x 36.5 x 9.8" (49.8 x 92.7 x 24.8 cm) |
