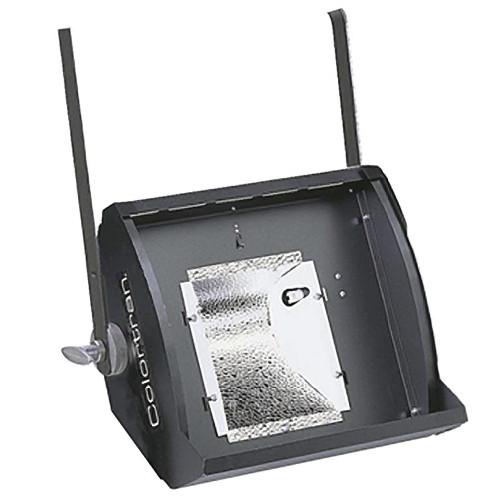

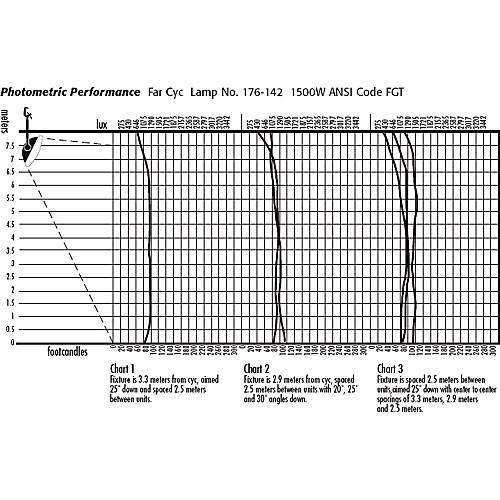

Product description The NSI/Leviton Far Cyc series is a 1500 watt maximum per section theatrical light designed to provide a broad wash of light. Often, a Cyc Strip is used in pairs -- one as a footlight, one as a hanging fixture -- to provide even light coverage.Each Far Cyc section will uniformly illuminate 40 vertical feet of cyc on 12' (3.6 m) centers,
10' (3.3 m) from the cyc. - Efficient
- Power consumption is 50% less than other brands of cyc lights.
- Safe
- Socket assembly is UL listed, steatite insulated, rated for 600 volts, 3000 watts,
200°C continuous operation - Housing
- Constructed of sheet steel with black enamel finish with a heavy steel yoke,
malleable painted iron C-Clamp with 2" jaw. - Color Frame
- Unique design permits uniform radiation over your gels. Uneven fading is eliminated.
In the Box NSI / Leviton Far Cyc - One Circuit (220VAC) 3' Cable, Bare Leads 2" C-Clamp One Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Far Cyc - One Circuit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

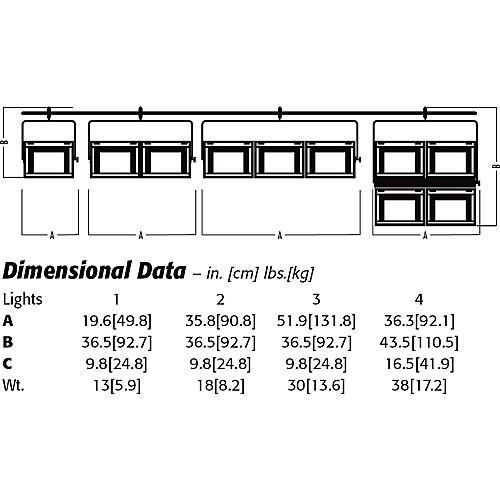

Technical parametersNSI / Leviton Far Cyc Specs | Rating | 1500 watts max, 220VAC, 20A | | Socket (Lampholder) | R7s, double-ended | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Specular random patterned aluminum | | Mounting | C-Clamp with 2" jaw | | Yoke | Heavy iron | | Cable | 3' wire, bare leads | | Focusing | Not Applicable | | Weight | 13 lbs (5.9 kg) | | Dimensions | 19.6 x 36.5 x 9.8" (49.8 x 92.7 x 24.8 cm) | | | | Package Weight | 14.75 lb | | Box Dimensions (LxWxH) | 21.9 x 21.9 x 12.6" |
