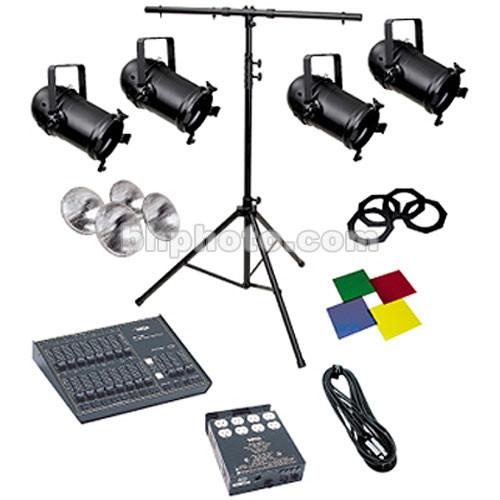

User Manual for NSI Leviton Hands-On PAR 38 4 Light System Click to enlarge the picture
Contents of the user manual for the NSI Leviton Hands-On PAR 38 4
- Product category: Tungsten Lights NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Tungsten Lights
|
User manual for the NSI Leviton Hands-On PAR 38 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description The NSI Hands-On PAR 38 System is an 8-channel, programmable 4 Par light system. It features an NS3008 console, which has 8 individual channels with scene memory and several chase options.This system comes with a DDS 3600 Relay/Dimmer Pack, which has 600 watts per channel and 2400 watts of maximum power. The 4 Par 38's are rugged black PAR fixtures that accept flood or spot bulbs, up to 250 watts. Four 150-watt bulbs are included. Also included is a stand with crossbar for mounting the fixtures, color frames, and gels. Suggested applications: Small theaters, houses of worship, clubs. - Versatile Dimmer-Relay Pack
- The DDS 3600R relay pack may be assigned by channel to act as a dimmer, or as a relay switch for on/off operation of lights or motorized devices.
It has 4 channels. Plug in single, or ganged lights, up to 2400 watts total. Its circuit breaker is external, on the front panel. - Programmable
- It provides eight channels of control, scene memory, and several chase options. These features provide easy lighting effects at the touch of a button.
- Smooth Fades
- Dual split cross-faders allow even fades from scene to scene.
Master slide level, plus blackout button built-in. - Reduced Interference
- Toroidal choke filtering for reduced audio interference and a 100 micro-second rise time.
- Proprietary Cable Control
- Supplied with NSI Micro-Plex (3-Pin XLR) control. Optional DMX512 (5-Pin XLR) control available.
- Easily Expandable
- Add more of your own dimmers and lights.
In the Box NSI / Leviton Hands-On PAR 38 4 Light System (120V) 4 x Par 38, Black (120 VAC) ftteeryvbazabqturztqssrtuwtatcrbxtbxvr 3008 Dimmer DMX Control Console ftteeryvbazabqturztqssrtuwtatcrbxtbxvr Digital Relay Pack, 15 Amps (120V) 25' Connector Cable (FGP-DMX3P-025) Light Stand with Crossbar Gel Pack 4 x 150 Watt Flood Lamp for Par 38 Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Hands-On PAR 38 4 Light System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton Par 38 Specs | Rating | Each Fixture: 150-250 W | | Socket (Lampholder) | 2-pin | | Lens (Condenser) | In bulb of choice | | Reflector (Mirror) | None | | Mounting | C-clamp or Baby stud | | Yoke | Twin flat blade | | Cable | 3' with household Edison plug | | Focusing | Depends on bulb in use | | Weight | Each Fixture: Not specified by manufacturer
Control Board: 7 lb / 3.2 kg
Relay Pack: 7 lb / 3.2 kg | | Dimensions | Each Fixture: Not specified by manufacturer
Control Board: 10.5 x 8.6 x 2.5" / 27 x 22 x 6.4 cm
Relay Pack: 6.5 x 2 x 8.5" / 16.5 x 5.1 x 21.6 cm | | Kit Weight | ~45 lb / 20.5 kg | | | | Box Dimensions (LxWxH) | 57.0 x 24.0 x 13.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
