User Manual for NSI Leviton Hands-On Par 56 4 Light System Click to enlarge the picture
Contents of the user manual for the NSI Leviton Hands-On Par 56 4
- Product category: Tungsten Lights NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Tungsten Lights
|
User manual for the NSI Leviton Hands-On Par 56 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description The NSI Hands-On Par 56 System is an 8-channel, programmable 4-light system. It features an MC7008, which has 2-scene operation and is configurable to 8 individual channels with 8 sub-master sliders. This system comes with a DDS 5600 Dimmer Pack which has 600 watts per channel, 2400 watts maximum power. The 4 Par 56's are rugged black Par fixtures that accept flood or spot bulbs up to 500 watts. 300-watt bulbs are included. Also included is a stand with crossbar for mounting the fixtures, color frames, and gels. Suggested applications: Small theaters, houses of worship, clubs. - Upgradable Dimmer Pack
- Equipped for NSI 128 channel Micro-Plex (3-pin XLR) operation. Optional DMX512 (5-pin) control is available.
- Programmable
- 2 user-programmable 32 step chase patterns, 16 individual control channels, 8 flash memory scenes in wide mode.
- Smooth Fades
- Dual split cross-faders allow even fades from scene to scene.
Master slide level, plus blackout button built-in. - Reduced Interference
- Toroidal choke filtering for reduced audio interference and a 100 microsecond rise time.
- Easily Expandable
- Add more of your own dimmers and lights.

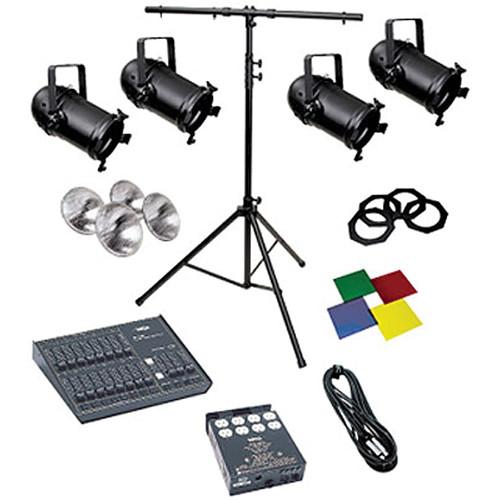

In the Box NSI / Leviton Hands-On Par 56 4 Light System (120V) 4 x PAR 56 Head (Black) sebfdrcyeadcsqvzcxcaaetqzdwaexytxaaav Controller Console sebfdrcyeadcsqvzcxcaaetqzdwaexytxaaav Digital Dimmer, Four Channels (120VAC) 25' Connector Cable (FGP-DMX3P-025) 4 x 300W/120V NSP Lamp for Par 56 Light Stand with Crossbar Gel Pack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Hands-On Par 56 4 Light System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton Par 56 Specs | Rating | Each Fixture: 300 W | | Socket (Lampholder) | 2-pin | | Lens (Condenser) | In bulb of choice | | Reflector (Mirror) | None | | Mounting | C-clamp or Baby stud | | Yoke | Twin flat blade | | Cable | 3' / 1 m with household Edison plug | | Focusing | Depends on bulb in use | | Weight | Each Fixture: Not specified by manufacturer
Control Board: 7 lb / 3.2 kg
Dimmer: 10 lb / 4.54 kg | | Dimensions | Each Fixture: Not specified by manufacturer
Control Board: 10.5 x 8.6 x 2.5" / 27 x 22 x 6.4 cm
Dimmer: 7.5 x 2.3 x 9.5" / 19 x 6.6 x 24 cm | | Kit Weight | ~50 lb / 22.7 kg | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 58.0 x 23.5 x 13.5" |
