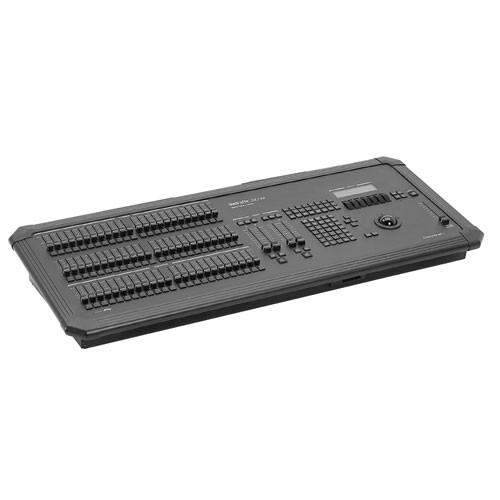

User Manual for NSI Leviton Innovator 24 48 Channel Control Console Click to enlarge the picture
Contents of the user manual for the NSI Leviton Innovator 24 48 Channel
- Product category: Lighting Consoles & Controllers NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Lighting Consoles & Controllers
|
User manual for the NSI Leviton Innovator 24 48 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More The NSI/Leviton Innovator Lighting Control Console can make the difference between a good show and a spectacular event. The Innovator provides the powerful unification of advanced theatrical functions and sophisticated intelligent device control for capabilities never before available at such an economical price. Easy-to-use display and control features seamlessly link intelligent and standard light fixtures to help you create any look you desire. Multiple fixture attributes may be controlled at once with its unique trackball and encoder inputs, while complete information is visible with the LCD display and up to two (of your) monitors. This Intelligent Console is capable of 24- two-scene, or 48 single-scene fixture control. It has 384 control channels for conventional dimmers. It can store up to 600 programmed cues. With your VGA monitor(s), you can view Stage, Preview, Device, Cue Sheets, Playback, Patch and Setup. This console provides 24 submaster sliders, 2000 macros, with a capacity for 1024 dimmers. It has two pairs of manual cross faders, a master fader, rate, bump, go and blackout buttons, as well as seven encoder wheels for intelligent device personality traits. The Innovator has up to 600 level sensitive effects with programmable step times. The effects may be loaded to cue or submaster. - Connectivity
- Midi In/Out/Thru, SMPTE via MIDI, DMX512, 2- VGA, and 3 1/2" Disk Drive
- High Capacity Control
-
- 384 maximum channels
- 600 Cues per show
- 500 Groups per show
- 512 Moving light channels
- 48 Channel faders
- 24 Submaster faders with 8 pages
- 1536 Dimmers
- 256 Automated devices
- Versatile
- Controls any DMX512 device and a variety of manufacturers' instruments simultaneously
- Pre-Programmed Library
- Recognizes many popular fixtures
- Real-Time Event Programmable
- Up to 500 event capability options
- Two-Monitor Capable
- Requires at least one VGA color monitor (available separately); it has the capability of two-monitor output.
In the Box NSI / Leviton Innovator 24/48 Channel Control Console (100-240VAC) Two Year Manufacturer's Warranty Free Software upgrades during warranty period Note: DMX Control Cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Innovator 24 48 Channel Control Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton CTP-7-0048 Specs | Ports | 1- DMX512 in (5 pin XLR, male)
3- DMX512 independent patch ports out (5 pin XLR female)
1- DMX512 switch selectable out (3 pin XLR to A,B, or C)
MIDI in/out/through (5 pin DIN)
Colornet RJ45 and AUI
Remote go macro (9 pin D-Sub/DB9 female)
Printer
2- VGA Monitor outputs (HD 15 pin DS/DB15 female)
Hand held remote (6 pin XLR female)
Keyboard input (5 pin DIN)
2- AC convenience outlets 2- Worklight (BNC) for optional worklights | | Dimensions | 45 x 19 x 5.8" (114.3 x 48.2 x 14.8 cm) | | Weight | Shipping: 45 lbs (20.4 kg) | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 57.0 x 27.0 x 10.0" |
