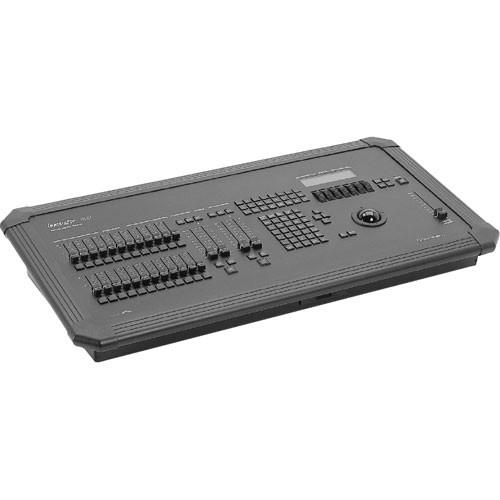

Product description What You Need to Know When Working with DMX Read More The NSI/Leviton Innovator 600 Lighting Control Console provides the powerful unification of advanced theatrical functions and sophisticated intelligent device control for capabilities never before available at such an economical price. It links intelligent and standard light fixtures to help you create any look you desire. Multiple fixture attributes may be controlled at once with its unique trackball and encoder inputs, while complete information is visible with its LCD display and up to two (of your) monitors. This Intelligent Console is capable of controlling 600 stage or 512 moving light channels. It can store up to 600 programmed cues/groups per show. With your VGA monitor(s), you can view Stage, Preview, Device, Cue Sheets, Playback, Patch and Setup. This console provides 24 submaster sliders, 500 macros, with a capacity for 1536 dimmers. It has two pairs of assignable cross faders, a master fader, rate, bump, go and blackout button, as well as seven encoder wheels for intelligent device personality traits. The Innovator has up to 600 level sensitive effects with programmable step times. The effects may be loaded to cue or submaster. - Connectivity
- MIDI In/Out/Thru, SMPTE via MIDI, 3- DMX512 Universes, 2- VGA, and 3 1/2" Disk Drive
ColorNet RJ45 and AUI compatible
On-Line help available - High Capacity Control
-
- Grandmaster fader
- Go-to Cue key for executing cues out of order
- 384 maximum channels
- 600 Cues/groups per show
- 600 stage, 512 Moving light channels
- 48 Channel faders
- 24 Submaster faders with 8 pages, max to 192 submasters
- 1536 Dimmers
- 8 programmable macro keys
- 8 screen function (soft) keys
- 256 Automated devices
- Versatile
- Controls any DMX512 device, and a variety of manufacturers' instruments simultaneously
- Pre-Programmed Library
- Recognizes many popular fixtures
- Real-Time
- Up to 500 event programmable options
Real-time clock - Two-Monitor Capable
- Requires at least one VGA color monitor (available separately); it has the capability of two-monitor output.
In the Box NSI / Leviton Innovator 600 Control Console (100-240 VAC) Two Year Manufacturer's Warranty Free Software upgrades during warranty period Note: DMX Control Cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Innovator 600 Control Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton CTP-7-0600 Specs | Ports | 1 x DMX512 in (5 pin XLR, male)
3 x DMX512 independent patch ports out (5 pin XLR female)
1 x DMX512 switch selectable out (3 pin XLR to A,B, or C)
MIDI in/out/through (5 pin DIN)
Colornet RJ45 and AUI
Remote go macro (9 pin D-Sub/DB9 female)
Printer
2 x VGA Monitor outputs (HD 15 pin DS/DB15 female)
Hand held remote (6 pin XLR female)
Keyboard input (5 pin DIN)
2 x AC convenience outlets
2 x Worklight (BNC) for optional worklights | | Dimensions | 36 x 19 x 5.8" (91.4 x 48.2 x 14.8 cm) (WxDxH) | | Weight | Shipping: 40 lbs (18.1 kg) |
