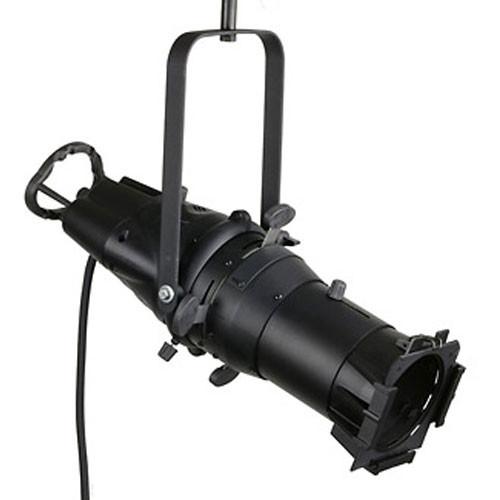

User Manual for NSI Leviton Leo Ellipsoidal Spotlight - 15 Degrees Click to enlarge the picture
Contents of the user manual for the NSI Leviton Leo Ellipsoidal Spotlight -
- Product category: Stage & Studio NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Stage & Studio
|
User manual for the NSI Leviton Leo Ellipsoidal Spotlight - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description The NSI/Leviton Leo Ellipsoidal theatrical spotlight features an enhanced optical system that breaks through the barriers and pitfalls commonly associated with ellipsoidal reflector spotlights. Leo's optical system makes efficient use of light emitted from several choices of bulbs of different wattages and voltages (available separately).Leo features outstanding soft-focus capability -- allowing peak focus, appropriate beam uniformity, and a consistent falloff at the edge. This is useful for both single and multi-fixture/zone overlap applications. The Leo series also features an industry exclusive repositional lens, enabling the user to change field angles, in the field, in the same barrel. Click on "more images" for detailed illumination specifications. - Superior Optical Features
-
- Faceted glass reflector with dichroic coating
- Quick-Center, locking lamp centering technology
- Peak/Cosine adjustment separate from lamp centering
- Removable and interchangeable lens barrels
- Rugged, Intelligent Construction
-
- Cast, or extruded aluminum housing
- Durable textured powder-coat finish
- Steel Yoke permits >360° rotation of fixture body
- EasyGlide lens tube - no metal-to-metal contact for ease of movement
- Heavy stainless steel shutters in quad-plane assembly
- All parts are user-replaceable.
- Accepts Accessories
-
- Two industry-standard size accessory slots
- Two locking gel/media/accessory slots
- Supports motorized gobo rotators
- Accepts Size A or B (3" gate) glass or steel gobos
- Cool Handling
-
- 91% of heat is absorbed by the reflector.
- Insulated Cool-Grip handles
- Easy Lamp Replacement
- Lamp housing separates from fixture body
In the Box NSI / Leviton Leo Ellipsoidal Spotlight - 15 Degrees (115-240VAC) - 36" 3-Wire cable, 20 Amp NEMA Twist-Lock Plug
- C-Clamp
- Gel Frame
- One Year Manufacturer's Warranty
Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Leo Ellipsoidal Spotlight - 15 Degrees in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton Leo Ellipsoidal Specs | Rating | 750 watts max, 115-240VAC | | Socket (Lampholder) | G9.5 ceramic, metal bi-pin | | Lens (Condenser) | Precision-molded, low-expansion borosilicate glass | | Reflector (Mirror) | Faceted glass, with dichroic coating | | Mounting | Hole in yoke, C-Clamp | | Yoke | Steel, twin flat blade | | Cable | 36" 3-wire, sleeved, 20 Amp NEMA Twist-Lock Plug | | Focusing | Lens barrel adjustment knob, framing shutters | | Weight | 17 lbs (7.7 kg) | | Dimensions | 27 x 8.4 x 16.25" (68.5 x 41.2 x 41.3 cm)
Fully extended, including yoke | | | | Box Dimensions (LxWxH) | 32.25 x 12.5 x 11.5" |
