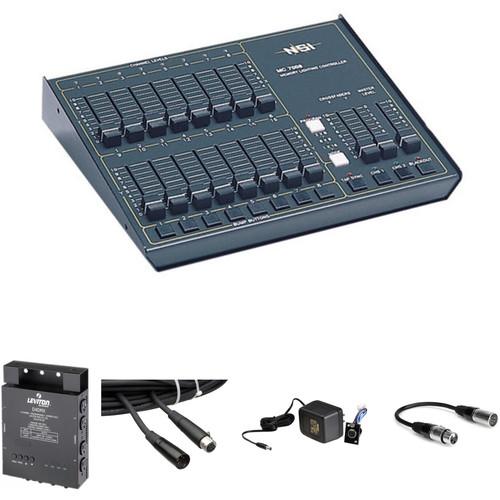

Product description What You Need to Know When Working with DMX Read More sertsxsa This NSI/Leviton Lighting Console and Dimmer Pack Kit from B&H gives you all the components for a working lighting console, including a dimmer pack. You get a 4-channel, programmable DMX dimmer pack; a control board with DMX512 control built in, two user-programmable 32-step chase patterns, 16 individual control channels, and 8 flash memory scenes in wide mode; a 50' DMX 5-pin cable for connecting the dimmer pack to the control board; and a 6" DMX 5-pin XLR male to 3-pin XLR female cable. This is a great lighting control solution for clubs, small theaters and houses of worship. - NSI / Leviton D4-DMX 4 Channel Programmable Dimmer Pack - 3-Pin XLR (120V) Leviton combines cutting edge technology and performance with this D4-DMX 4 Channel Programmable Dimmer Pack - 3-Pin XLR (120V).Features include resettable circuit breakers instead of fuses, and one-button setup of DMX addressing via a user-friendly LED panel, eliminating dip-switch settings. Sturdy metal chassis makes it ideal for stationary or portable applications.
- May operate as a stand-alone chaser function with 16 pre-programmed patterns with chase speed and output level controls.
- Controls up to 600 watts per channel using 4 channels, or 1200 watts per channel using 2 channels, 2400 watts total.
- Output channel selector permits choice of 1, 2 or 4 channel operation.
- Bright LED display for easy, menu-driven programming.
- Built-in mounting bracket.
UPC: 078477242537 - NSI / Leviton MC7008 8-16 Channel Digital Controller (120VAC) The NSI/Leviton MC7008 Lighting Console is simple and flexible, with three operating modes. It provides two-scene preset operation, single scene wide mode for double channel capacity, and memory scene operation. Easy to program and operate; instructions are silkscreened on the back of the units. Suggested applications: Small theaters, houses of worship, clubs.Note to the Novice: This is a control board only. Dimmer pack(s) required, and not included.
- DMX512 (5-Pin XLR) control is built-in -- also supplied with NSI Micro-Plex (3-Pin XLR) control.
- Two user-programmable 32 step chase patterns, 16 individual control channels, 8 flash memory scenes in wide mode.
- 8 x 8 individual control channels in 2-scene mode
- Eight individual control channels, eight user-programmable memory scenes in memory mode.
- Tap sync button allows chase rate to be adjusted on-the-fly.
- Dual split cross-faders allow even fades from scene to scene.
- Master slide level, plus blackout button are built-in.
- NSI / Leviton Cable - DMX 5 Pin - 50' This is a 50 ft DMX, 5 pin cable for connecting an NSI, or any other standard 5-pin dimmer pack to its intended control board. Other lengths are available, from 3 to 100 feet. To see them, type: NSCDMX5P in the main search window, click enter. UPC: 078477122808
- NSI / Leviton DMX512 Upgrade for MC-7008, 7016, 7024 Upgrades the NSI MC-7008, 7016, 7024 control boards to DMX512 protocol.
- Hosa Technology 5-Pin XLR Male to 3-Pin XLR Female DMX Cable - 6" This Hosa DMX 5-Pin XLR Male to 3-Pin XLR Female Cable is a 6" long adapter cable ideal for use with sound and lighting control boards. Shielded, with durable connectors. UPC: 728736001749
In the Box - D4-DMX 4 Channel Programmable Dimmer Pack - 3-Pin XLR (120V) sertsxsa
- Built-in mounting bracket
- 1 Year Manufacturer's Warranty
- MC7008 8-16 Channel Digital Controller (120VAC)
- DMX512 Upgrade for MC-7008, 7016, 7024 Control Boards (120V AC)
- Hosa Technology - 5-Pin XLR Male to 3-Pin XLR Female DMX Adapter Cable - 6"
Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Lighting Console and Dimmer Pack Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - NSI / Leviton D4-DMX 4 Channel Programmable Dimmer Pack - 3-Pin XLR (120V)
| Dimensions | 7.5 x 10.23 x 2.7" (19 x 26 x 68 cm) | | Weight | 8 lbs (3.6 kg) | | | | Box Dimensions (LxWxH) | 14.9 x 9.25 x 4.15" | - NSI / Leviton MC7008 8-16 Channel Digital Controller (120VAC)
| Dimensions | 10.5 x 8.6 x 2.5" (27 x 22 x 6.4 cm) | | Weight | 7 lbs (3.2 kg) | | | | Box Dimensions (LxWxH) | 12.95 x 11.55 x 9.2" | - NSI / Leviton Cable - DMX 5 Pin - 50'
| | | Box Dimensions (LxWxH) | 10.25 x 7.95 x 4.3" | - NSI / Leviton DMX512 Upgrade for MC-7008, 7016, 7024
| | | Box Dimensions (LxWxH) | 5.85 x 5.15 x 3.65" | - Hosa Technology 5-Pin XLR Male to 3-Pin XLR Female DMX Cable - 6"
| | | Connector 1 | 5-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Shielding | 85% Tinned Copper Braid | | Cable Length | 6' / 1.83 m | | | | Box Dimensions (LxWxH) | 7.1 x 3.2 x 1.3" |
