User Manual for NSI Leviton Multi-Lens PAR with 4 Lenses and Stage Pin Connector Click to enlarge the picture
Contents of the user manual for the NSI Leviton Multi-Lens PAR with 4
- Product category: Tungsten Lights NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Tungsten Lights
 |
User manual for the NSI Leviton Multi-Lens PAR with 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|

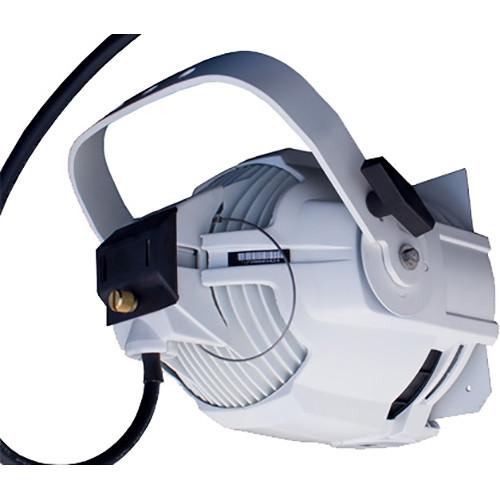

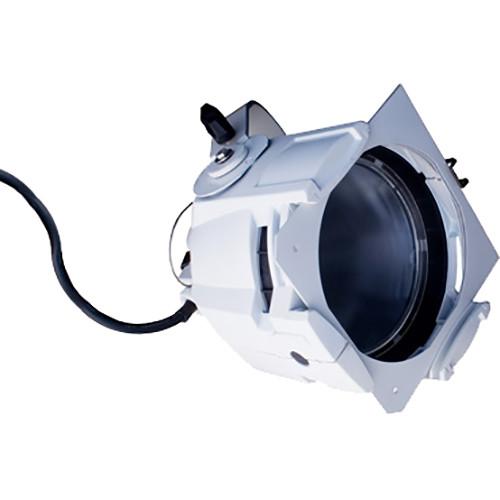

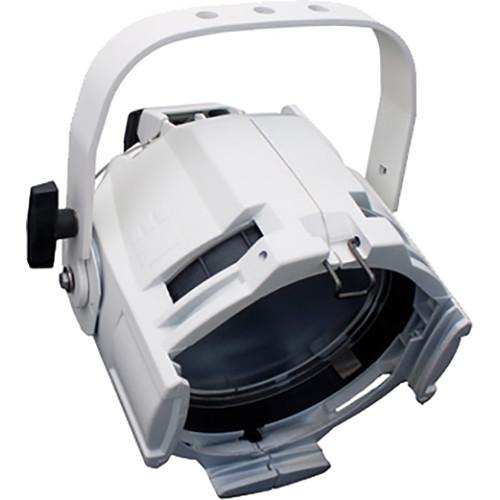

Product description The white Multi-Lens PAR with 4 Lenses and Stage Pin Connector from NSI/Leviton is a rugged die cast aluminum fixture commonly used in theaters and other architectural projects. The light will accept up to a 750W bulb. That, with its mirror-polished reflector, guarantees maximum output for long-throw use. Instead of a zoom function, the Multi-Lens PAR uses interchangeable lenses. Four lenses are provided: Very Narrow Spot (round beam), Narrow Spot (round beam), Medium Flood (oval beam), and Wide Flood (oval beam). Swapping out the lenses is quick and tool-free. The fixture also accepts 10" accessories. The Multi-Lens PAR is ready for worldwide use via its multi-voltage AC adapter. The light comes with a gel holder and a C-clamp. - Benefits
-
- Rugged die cast aluminum construction
- Tool-free access to reflector, lens, and lamp replacement
- Thermally insulated knobs
- Gel frame retainer clip
- ETL listed
- 120-240 VAC, 50/60 Hz
- Accepts up to 750W bulbs
- Tool-free lens changes
- Insulated lens rotating ring
- 36" high temperature lead

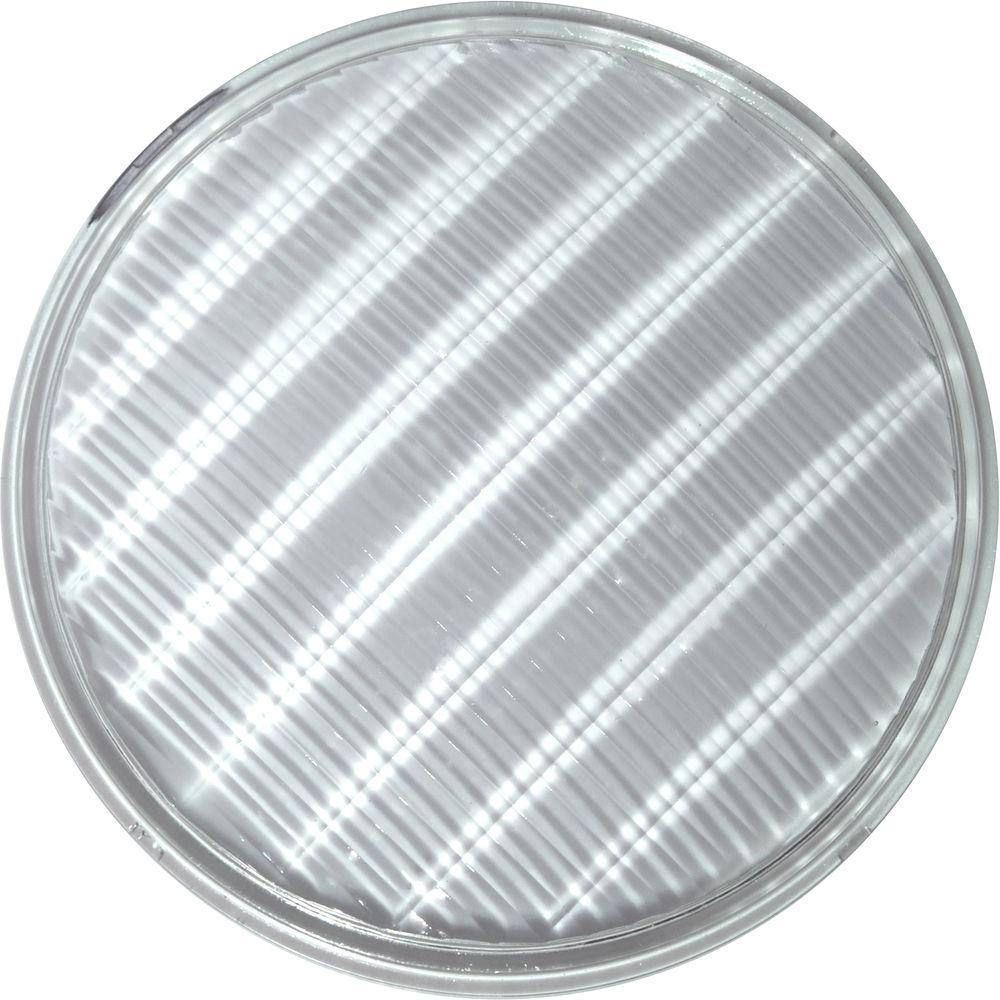

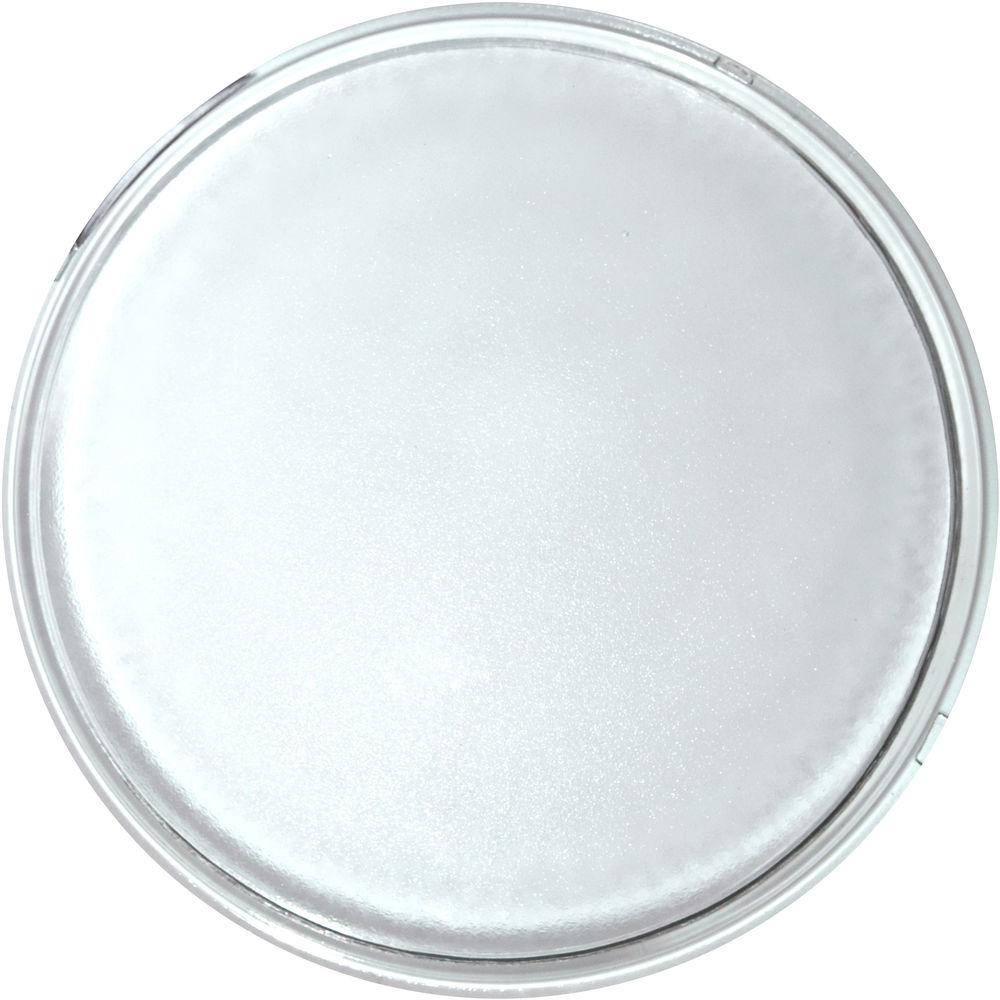

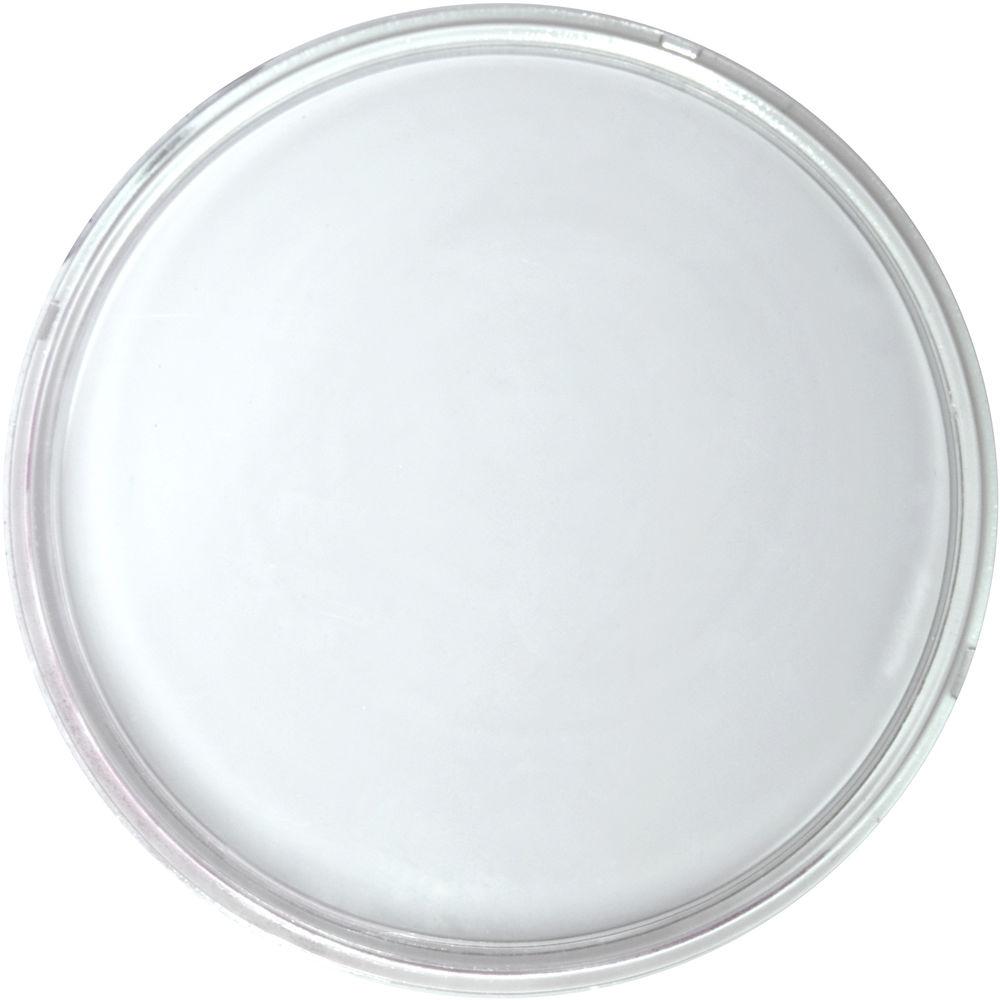

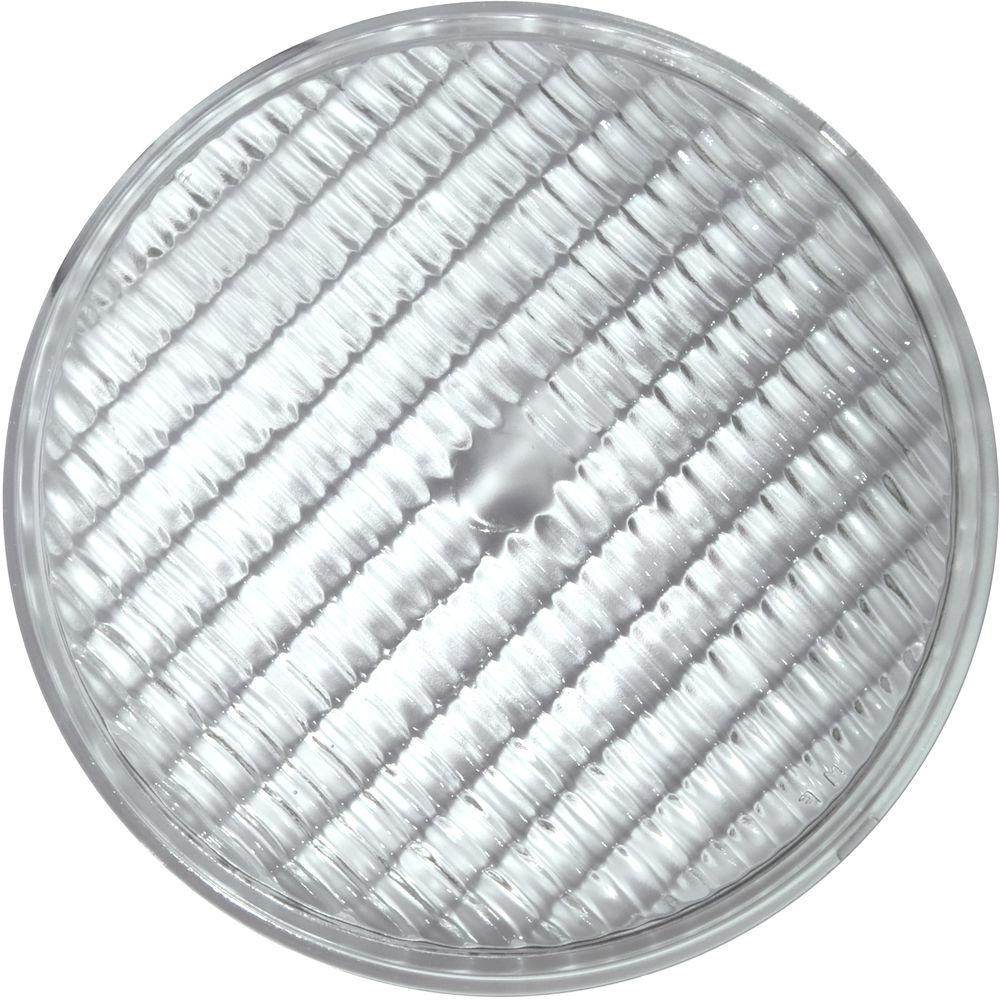

- Four lenses provided: Very Narrow Spot (round beam), Narrow Spot (round beam), Medium Flood (oval beam), and Wide Flood (oval beam)
- The removable, two-slot accessory holder has a self-closing, self-locking latch for safety
- Parabolic reflector made of high-grade aluminum, polished to a mirror finish
- Positive locking dog on yoke
- G9.5 Medium two-pin lamp holder accepts a wide variety of non-proprietary lamps
- Lower wattage lamps drastically reduce power consumption while simultaneously increasing dimmer capacity
- Accepts standard 10" accessories

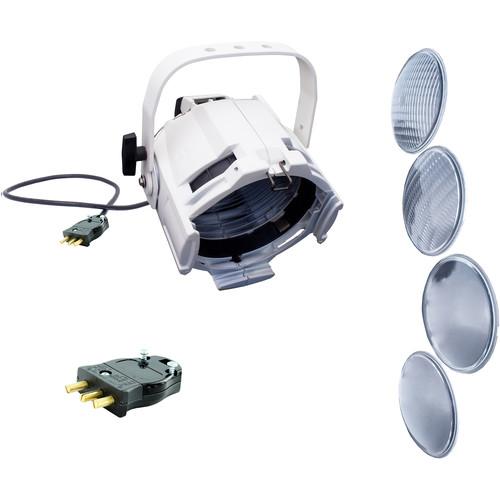

In the Box NSI / Leviton Multi-Lens PAR with 4 Lenses and Stage Pin Connector (White) Gel Frame C-Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Multi-Lens PAR with 4 Lenses and Stage Pin Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton Multi-Lens PAR Specs | Light Source | Tungsten (PAR) optional lamp up to 75 W | | Socket (Lampholder) | G9.5 | | Lenses | Very Narrow Spot (round beam), Narrow Spot (round beam), Medium Flood (oval beam), and Wide Flood (oval beam) | | Reflector | Parabolic reflector polished to a mirror finish | | Mounting | Yoke with included C-clamp | | Plug | Stage pin connector | | Electrical | 120-240 VAC, 50/60 Hz | | Focusing | Interchangeable lenses | | Material of Construction | Aluminum | | Finish | White | | Listings | ETL | | Dimensions | 8.5 x 8.3 x 10.6" (22 x 21 x 27 cm) | | Weight | 13.3 (6.0 kg) |
