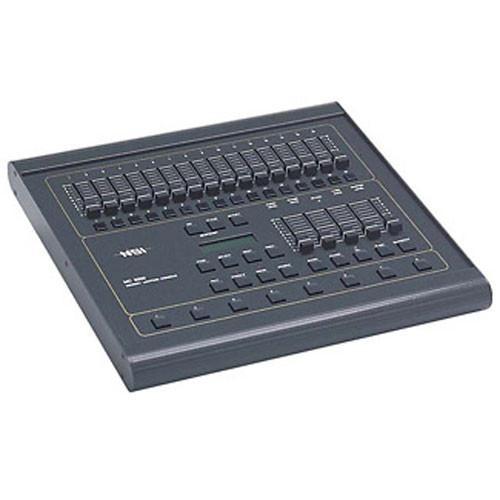

User Manual for NSI Leviton N6300-D00 16 Channel DMX Digital Controller Click to enlarge the picture
Contents of the user manual for the NSI Leviton N6300-D00 16 Channel DMX
- Product category: Lighting Consoles & Controllers NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Lighting Consoles & Controllers
|
User manual for the NSI Leviton N6300-D00 16 Channel DMX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More With the NSI/Leviton N6300 DMX DigitalController, you are entering a new era of microprocessor controlled stage lighting technology. The powerful NSI Micro-Plex designs involve the electrical marriage of microprocessor technology and digitally controlled multiplexing. The result is a control package with the flexibility for a variety of innovative applications. This NSI N6300 Series Lighting Console features an advanced microprocessor based design containing many benefits found in today's personal computers. This technology provides for the option of adding programmable memory scene masters and chase effects to the simplicity of a familiar two scene console. 6300 is capable of storing 128 scenes in internal memory. These scenes are completely user-programmable and may be reprogrammed at any time. The memory scenes are organized into 16 pages of eight. Eight memory scene access buttons are available on the controller to bring up any of the eight scenes within the page indicated on the LCD display. Scenes that have been programmed can be recalled at any time by pressing the desired Memory Scene button when the proper Page is active. Pressing the button a second time will cause the scene to fade out. All programming is stored in non-volatile memory which retains information for at least ten years, even when power is removed. Connectivity - Simple Micro-Plex: Connect a single three conductor audio cable (standard microphone cable with 3-pin XLR connectors) or equivalent shielded cable to the Micro-Plex output jack on the back of the console. The other end of the cable is then connected to the first NSI dimmer pack. Another three conductor cable is used to connect the first dimmer pack to the second dimmer pack. Additional NSI dimmer packs may be connected in the same manner.
- DMX 512 is a digital signal that provides the highest speed, precision, and noise immunity.
Multitude of Controls - The Channel Level, Master Level
Audio, Chase, Fade Rate
Stack, Channel Bumps, Program Pile
Snapshot, Snapshot Clear
Blind, Blackout, Configuartion
Select, Next, Previous UPC: 078477121542 In the Box NSI / Leviton N6300-D00 16 Channel DMX Digital Controller (120VAC) Integral DMX512 Control One Year Manufacturer's Warranty Note: DMX512 Control Cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton N6300-D00 16 Channel DMX Digital Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton N6300401D00 Specs | Rating | 12-15VDC from your NSI dimmer system, or 120VAC | | Dimensions | 4 x 15.25 x 15" (10.2 x 38.7 x 38.1cm) (HxWxD) | | Weight | 9 lbs (4kg) | | | | Box Dimensions (LxWxH) | 17.25 x 17.25 x 6.875" |
