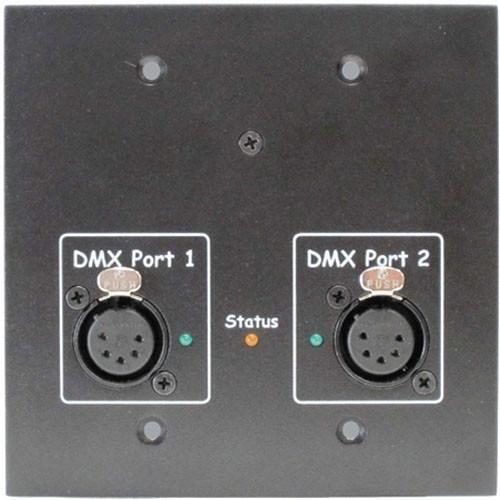

User Manual for NSI Leviton NPC2D-MF 2 Port Network Protocol Converter Click to enlarge the picture
Contents of the user manual for the NSI Leviton NPC2D-MF 2 Port Network
- Product category: DMX Devices NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton DMX Devices
|
User manual for the NSI Leviton NPC2D-MF 2 Port Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description The NSI/Leviton NPC2D-MF 2 Port Network Protocol Converter offers exceptionally cost-effective DMX-over-Ethernet connectivity in a package well suited for integration with permanently installed stage, studio, and architectural lighting systems. The extensive protocol support enables input and output for the majority of today's entertainment, as well as architectural, lighting control systems, show controllers, and visualizers.The two DMX ports are bi-directional for maximum flexibility so that any port, independent of the XLR connector gender, can be configured as an input or output. NPC2D supports 10BaseT and 100BaseT for unparalleled throughput and easy integration with any network topology. Auto MDI/MDI-X eliminates the need to worry about straight vs. cross-over cabling. Power over Ethernet provides effortless power via readily available PoE switches or mid-span power injectors. This unit offers 1-female, 1-male 5-pin XLR receptacle. - Applications
-
- DMX distribution over Ethernet
- Theaters
- Cafetoriums
- Places of assembly
- Features
-
- Ports configurable as Inputs or Outputs
- Protocols supported:
ACN, 8700/HydraNet, SandNet, ColorNet II, Pathport
- Power over Ethernet - IEEE 802.3af
- Fits in deep 2-gang device back box
- Specialty back boxes available for surface, pipe, C-clamp mounting
- Pipe/Thru other port for protocol conversion
- Standard NEMA 2-gang wall-plate for installed systems
- Self-healing ESD and transient protection
- Available with male or female XLRs or combination
- LEDs indicate Ethernet and DMX port activity
- Dedicated area for permanent labeling
- Supports both 10BaseT and 100BaseT
- Supports 8700 console, Piccolo, Piccolo Scan, NPC, and other Colornet devices
- RDM ready with user configurable EOL and RDM termination
- Free software for configuration, testing, and management
- Auto MDI-MDI-X for straight or cross-over CAT5/6 cabling
In the Box NSI / Leviton NPC2D-MF 2 Port Network Protocol Converter 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton NPC2D-MF 2 Port Network Protocol Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton NPC2D0020MF Specs | Dimensions | 4.5 x 4.5 x 1.6" (11.4 x 11.4 x 4 cm) |
