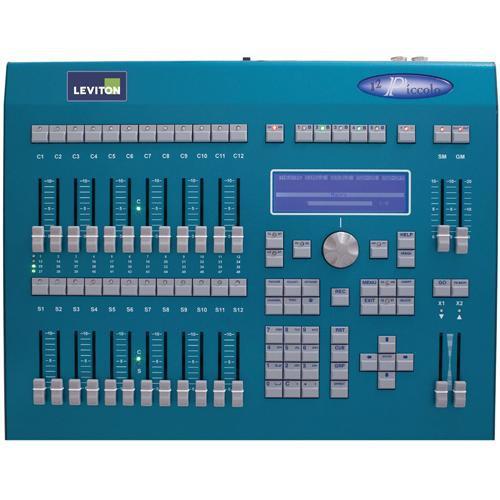

User Manual for NSI Leviton Piccolo 48 Channel Lighting Controller Click to enlarge the picture
Contents of the user manual for the NSI Leviton Piccolo 48 Channel Lighting
- Product category: Lighting Consoles & Controllers NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Lighting Consoles & Controllers
|
User manual for the NSI Leviton Piccolo 48 Channel Lighting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More The NSI/Leviton Piccolo Lighting Controller is a compact lighting console with advanced functions normally not found on consoles of similar size. It is very simple to use, yet offers many functions for complex procedures expected from such a device in the lighting entertainment field. Piccolo is an ideal control console for use in theaters, schools, music and corporate venues, houses of worship and TV studios. The video ready models have the ability to connect to a VGA monitor. Modes - Single
- All console faders operate as direct access control channels
- Double
- Upper faders control the same channels as the lower faders, allowing for manual crossfades between upper and lower fader rows
- Theater
- Upper faders operate as channel faders while the lower faders operate as submaster faders
- Manual
- Operates same as Theatre Mode except upper channel faders contribute to output levels on a HTP basis
Submasters - Accept Cues, Groups and Effects
- Channel and Submaster Flash keys
- Submaster Flash keys can be configured in three different modes: GO, FLASH and SOLO
Functions - Modify function: For modification of memory items such as Cues, Groups and Submasters
- Exam function: For examining console memory items
- Four arrow keys for cursor placement in menus and data cells
- Five interactive softkeys
- Numeric editor for creating cues and groups by entering levels via the alphanumeric keypad or level encoder
- MIDI and time controls to synchronize console with other consoles and external devices
- Personalize user setup
- Operates in several user languages
- Storage and transfer of show data to your external USB memory stick
- Printout of show data in text format
- OLE (Off Line Editor) simulates the console -- allows you to edit shows on a PC, also functions as a backup console
In the Box NSI / Leviton Piccolo 48 Channel Lighting Controller (120VAC) Dust cover 120VAC Convertor Power Supply Two Year Manufacturer's Warranty Note: DMX board to dimmer pack cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Piccolo 48 Channel Lighting Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton PPIC0000012 Specs | Channels | 12 Subs/48 Channels | | Dimensions | 19.3 x 15.75 x 2" (49 x 40 x 5cm) | | Weight | 7.7 lbs (3.5kg) |
