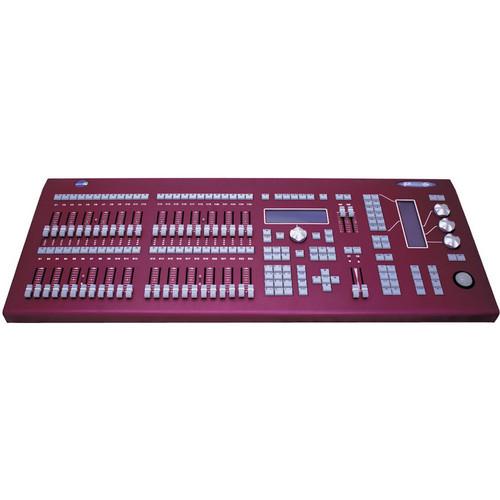

Product description What You Need to Know When Working with DMX Read More The NSI/Leviton Piccolo 96 Channel Lighting Controller (PPICS-V24) is a compact lighting console with advanced functions normally not found on consoles of similar size. It is very simple to use, yet offers many functions for complex procedures expected from such a device in the entertainment lighting field.
The Piccolo is an ideal control console for use in theaters, schools, music and corporate venues, houses of worship and TV studios. This video-ready model has the ability to connect to a VGA monitor. - Operating Modes
-
- Two Scene - traditional two-scene mode; autofader becomes cross fader
- Single Scene - all faders are channel faders; autofader becomes cue list
- Submaster "Theater" Mode - 1/2 faders are channel faders; the other 1/2 are dedicated Submasters; autofader becomes cue list
- 96 Dimmer Channels for Automated Devices
- Full Access to All Channels via Faders
- Match & Take control with audible or visual indication of match
- 352 Real Output Channels with Proportional Soft Patch to All 512 DMX Channels
- 256 Parameters and up to 128 Fixtures
- User Interface
-
- Channel Faders
- Keypad
- Two Displays (240 x 64)
- Attribute Encoder/Data Entry Wheel
- General encoder and 3 dedicated encoders
- Autofader with Go, Pause, Back, and Rate controls, manual or automatic mode
- Multi-Purpose Fader
- Effect Master
- DMX Input Master
- Grand Master & Blackout Key
- Channel Flash and Master Flash. Master Flash can be configured in different modes: Go, Flash and Solo
- Arrow Keys
- Soft Keys
- Trackball
- Cues
-
- Fade Up
- Fade Down
- Delay Up
- Delay Down
- Wait
- Follow
- Jump
- Loop
- Effects (999)
-
- No practical limit on number of steps
- Cues, Groups, Channels
- Level
- Speed
- Ramp
- Direction
- Mode
- Base Cue
- Submasters
-
- 999 Pages of Submasters
- Assigned to Submaster, Group, Cue, Effect
- Shapes
- Automatic shape creation adjustment for:
- Amplitude
- Velocity
- Offset
- Pallets
- Pallet library for quick recall of:
- Position
- Color
- Gobo
- Dimmer
- Beam
- Extra
- LED Indicators
-
- One per channel to show channel level
- Console "Mode" Indication
- Active channel range
- Software Features
-
- Hardware Test
- Exam
- Modify
- Spreadsheet style list navigation: Cues, Groups, Effects
- Text Labeling of any consoles item
- 5 dimmer curves
- Personalities
- Multi-language
- For use with or without external VGA
- Print show data to text file
- Off Line Editor
-
- Console screen view from any PC
- External Power Supply +12V DC, 1A
In the Box NSI / Leviton Piccolo 96 Channel Lighting Controller Dust Cover 120V AC Convertor Power Supply 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Piccolo 96 Channel Lighting Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton PPICS001V24 Specs | Channels | 96
DMX channels: 512 | | Attributes | Attribute channels: 256, Sub masters: 24 | | Handles | 48 | | Pages | Sub master pages: 999 | | I/O Connections | DMX Output DMX Input Ethernet - 10/100-Base-T USB Host (connect to PC) USB Device (connect to USB Memory Stick or external hard drive for show file storage and device library) Worklight MIDI In/Out LT-Link VGA Output | | Other | Cues: 10,000 (0.0-999.9)
Effects: 999
Max Shows: virtually unlimited | | Dimensions | Without faders: 37.4 x 15.7 x 2.0" (950 x 400 x 50)
Including faders: 37.4 x 15.7 x 3.9" (950 x 400 x 100 mm) | | Weight | 13.8 lb (6.26 kg) | | | | Box Dimensions (LxWxH) | 35.5 x 21.5 x 9.75" |
