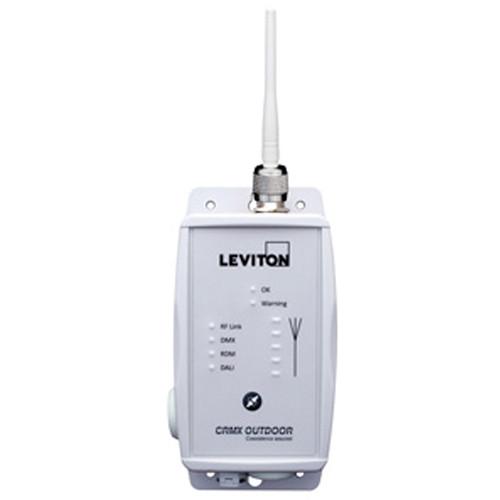

User Manual for NSI Leviton WCRMX-C1T Wireless DMX Transmitter Click to enlarge the picture
Contents of the user manual for the NSI Leviton WCRMX-C1T Wireless DMX Transmitter
- Product category: DMX Devices NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton DMX Devices
|
User manual for the NSI Leviton WCRMX-C1T Wireless DMX Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description This Cognitive Radio Multiplexer (CRMX) WCRMX-C1T Indoor Wireless DMX Transmitter by NSI/Leviton for installation into Piccolo and Piccolo scan consoles is the first automated/adaptive wireless technology that was expressly developed for the lighting industry. Transmissions from CRMX wireless devices don't disturb, nor are they disturbed by, various other types of wireless equipment. This fully automated attribute is worth many times its purchase price in peace of mind and freedom from costly downtime. The WCRMX-C1T supports 1 full DMX universe of up to 512 channels maximum. It includes an antenna and 5.75 coaxial cable. - Automated Cognitive Coexistence
- CRMX wireless transmissions never disturb, or are disturbed by, other wireless equipment. This fully automated feature offers unrivaled convenience and peace of mind during operation.
- Synchronization, Error Correction and Low Latency
- Precision timing mechanism guarantees synchronized frame delivery. Advanced algorithms recreate corrupt or lost radio packages. Latency is industry best; below 5ms in multi-universe system.
- Fidelity
- The DMX frame output is identical to the frame input.
- Security
- 128 bit encryption ensures no hacker intrusion.
- Ease of Mounting
- Indoor models offer multiple mounting options to facilitate easy rigging or rack mounting.
- Upgradeable
- Software and firmware easily upgradable.
- Listings
- FCC and ETSI certificates, CE approved, (low voltage supply) UL power supplies available if requested.
- Applications
-
- Wireless DMX distribution
- Theatres
- Houses of worship
- Performing arts centers
- Convention centers
In the Box NSI / Leviton WCRMX-C1T Wireless DMX Transmitter 2dbi RP-TNC Antenna 5.75' (1.75 m) 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton WCRMX-C1T Wireless DMX Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton WCRMX004C1T Specs | Protocol Support | USITT DMX512 and DMX512-A | | Conversion | DMX to DALI conversion: No | | Firmware Upgrade | TIA/EIA-485 | | DMX Interface | Number of universes supported: 1
Full DMX fidelity and frame integrity: Yes
Error correction and packet recovery: Yes
Frame synchronization < 0 .01ms
End-to-end DMX latency < 5ms
Auto sensing of DMX frame rate and frame size: Yes
Supported DMX frame rates: 0.8 - 7352Hz
Number of DMX channels supported: 0 - 512
Loss of DMX input behavior: timeout after 1.25s
ESD protected interfaces: Yes
W-DMX compatibility: No | | Power | High voltage input: N/A
Low Voltage input: N/A
Transient protected power inputs: N/A | | RF Characteristics | Automated cognitive coexistence: Yes
Dynamic adaptive frequency hopping: Yes
Recoverable radio packet error rate: 30%
Operational frequency range: 2402-2480MHz
RF output: 100mW (20dBm)
RF modulation: GFSK
Sensitivity at 0.1% packet error rate: -96dBm
Tested link range using standard antenna in urban area: 500m
Recovery time upon loss of signal: Less than 1s | | Approvals | FCC: 15.247 and 68 Class B; Canada ICES 003
CE, EN 301 489-1, EN 301 489-17, EN 300-328-1, EN 300-328-2, EN 60 950 | | Environment | Operating temperature range (ambient) -4.0 - 122°F (-20 - +50°C)
Humidity: 0-90% non-condensing | | Connectors | Antenna connectors: RP-TNC
DMX connectors: N/A
DC input: N/A
AC input: N/A
DALI: N/A | | Supplied Accessories | AC power cord, DC power connector, 2dbi RP-TNC antenna | | Material | Enclosure: N/A | | Dimensions | 1.1 x 0.47 x 2.6" (2.79 x 1.2 x 6.6 cm) | | Weight | 0.02 lb (10g) |
