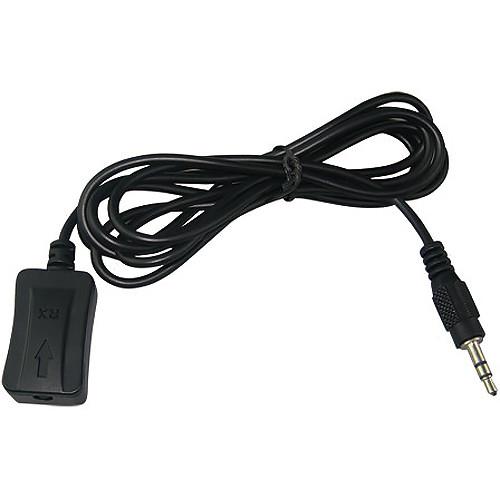

User Manual for NTW IR Transmission Kit with Sender & Receiver Click to enlarge the picture
Contents of the user manual for the NTW IR Transmission Kit with Sender
- Product category: Other Accessories NTW
- Brand: NTW
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NTW Other Accessories
|
User manual for the NTW IR Transmission Kit with Sender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NTW product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NTW user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NTW product will considerably shorten its lifespan!
|
Product description The NTW IR Transmission Kit features an IR transmitter and IR receiver. It allows the user to transmit IR and remote control signals over distance, which affords the consolidation and storage of equipment in discreet locations - creating a cluster free environment. - Kit contains IR Sender and IR Receiver
- Embedded IR receiver module supports 38 kHz carrier wave and all data formats
- 4.9' (1.5 m) cables with 1/8" (3.5 mm) plug
- Supports typical 38K infrared receiver/transmitter and distant range IR passes through
- Power obtained from interfacing devices
- IR function can be manual configured
UPC: 678138181467 In the Box NTW IR Transmission Kit with Sender & Receiver IR Sender IR Receiver 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NTW IR Transmission Kit with Sender & Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNTW NHDMI-AP-IRKIT Specs | Cable Type | IR Sender: 1/8" (3.5 mm) IR Receiver: 1/8" (3.5 mm) | | Cable Length | IR Sender: 4.9' (1.5 m) IR Receiver: 4.9' (1.5 m) | | Voltage | 0 - 6 V | | Operating Temperature | -13 to 176°F (-25 to 80°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Consumption Current | Typical: 0.8 mA Maximum: 1.0 mA | | Frequency | B.P.F. Center Frequency: 38 kHz | | Peak Wavelength | 940 nm | | Transmission Distance | 19.7 - 26.3' (6 - 8 m) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 6.0 x 4.1 x 1.0" |
