User Manual for NuForce uDAC5 High-Resolution DAC and Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the NuForce uDAC5 High-Resolution DAC and Headphone
- Product category: DACs NuForce
- Brand: NuForce
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NuForce DACs
 |
User manual for the NuForce uDAC5 High-Resolution DAC and Headphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NuForce product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NuForce user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NuForce product will considerably shorten its lifespan!
|

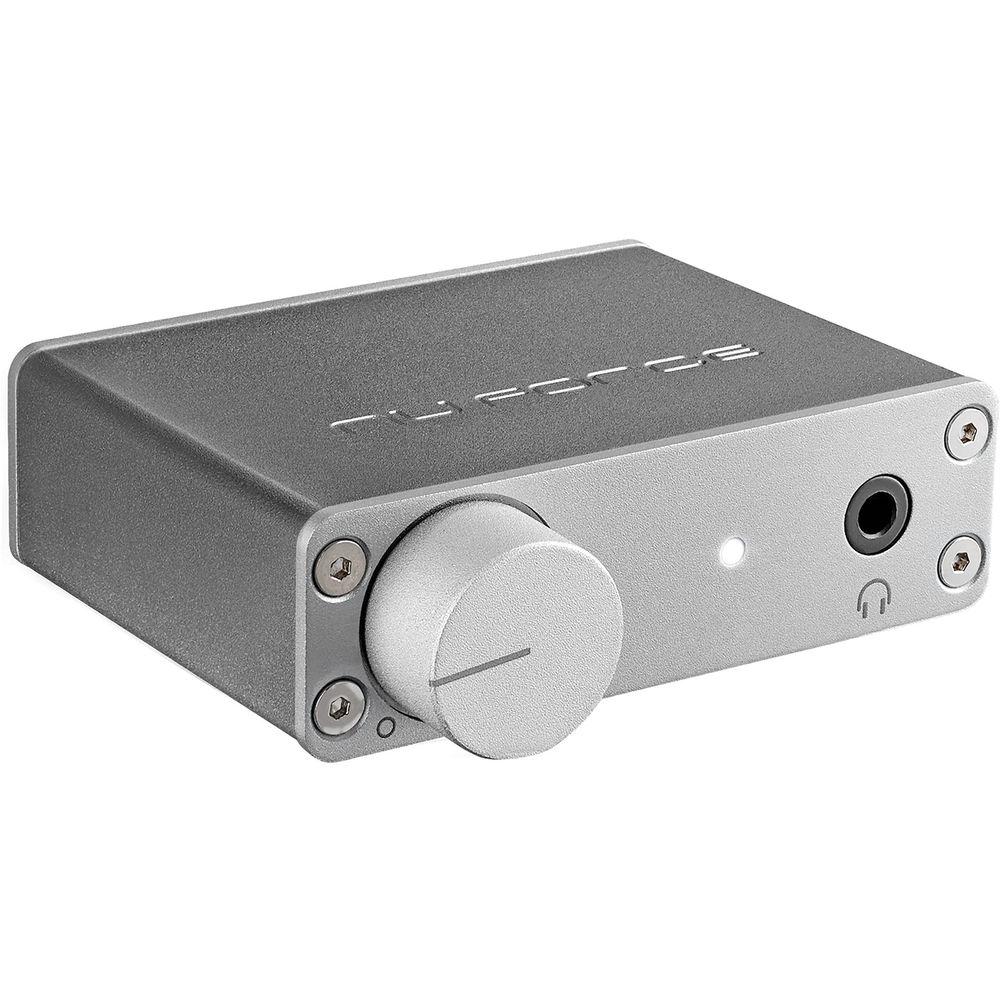

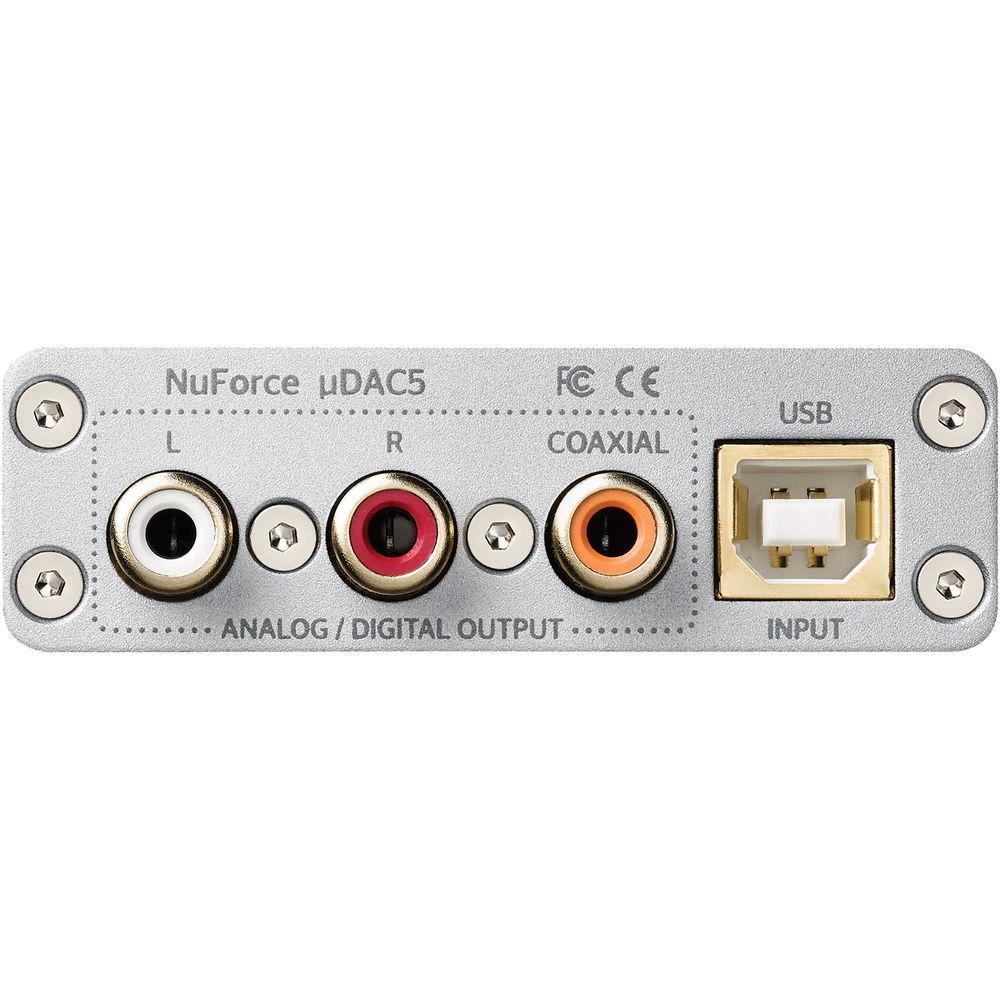

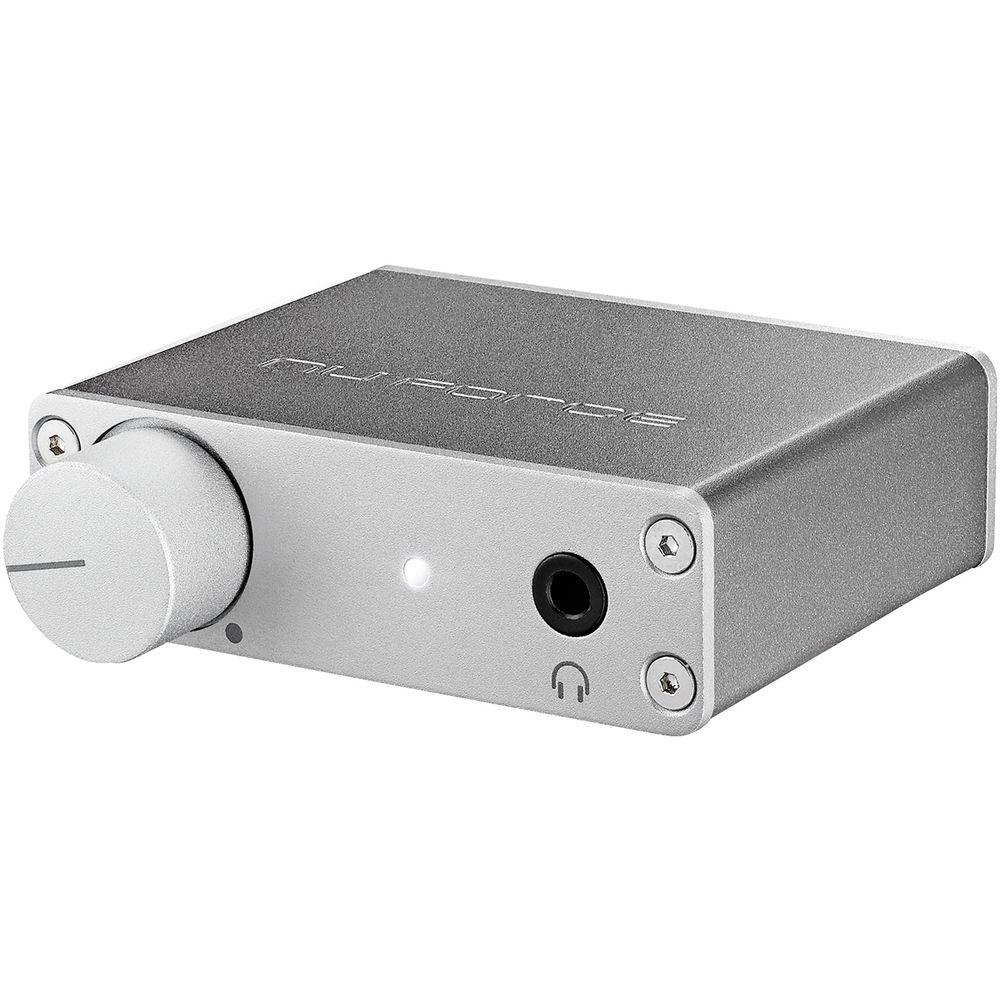

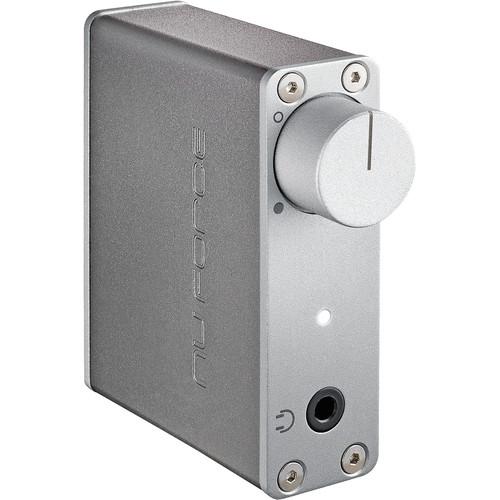

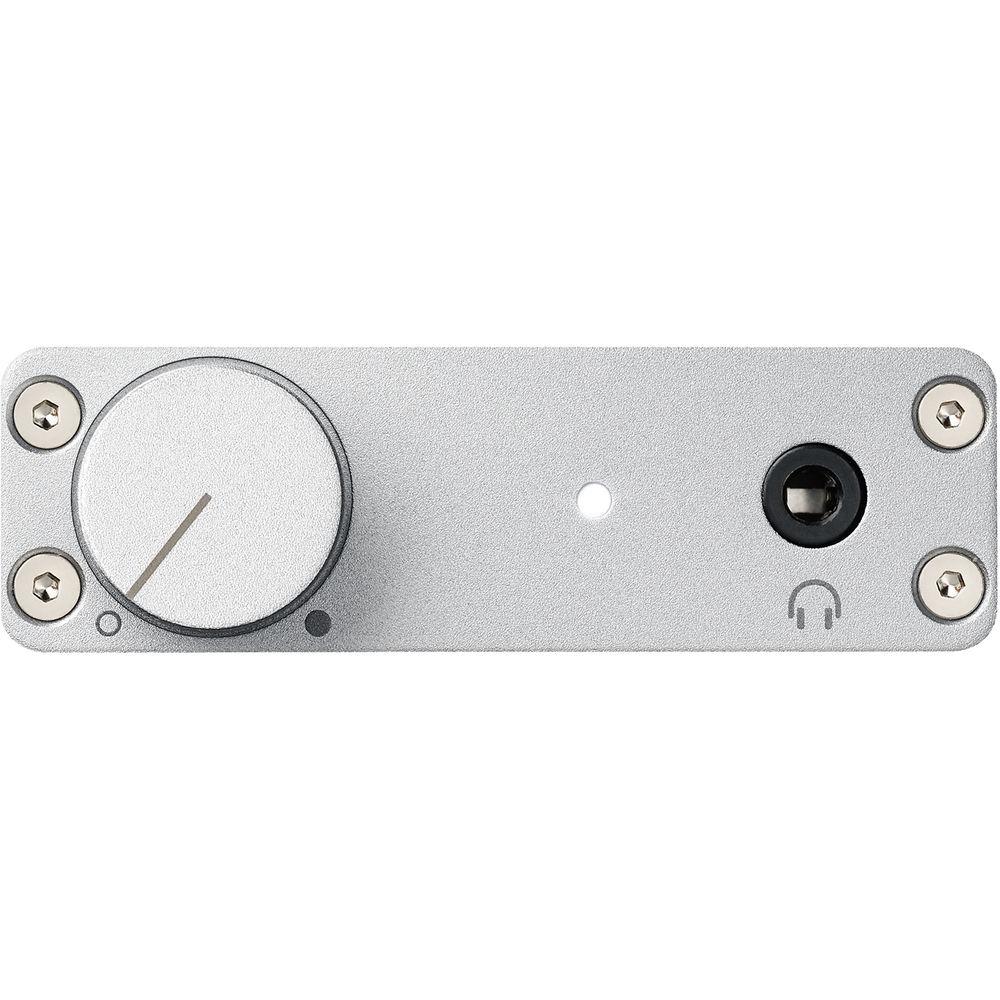

Product description Designed to play high-resolution audio from your laptop to speakers or headphones, the NuForce uDAC5 is a mobile headphone amp and DAC sporting a prominent rotary volume control. It sports a USB input, as well as a 3.5mm headphone output, a coaxial S/PDIF output, and RCA outputs for your home stereo system. The system is capable of handling regular PCM files, as well as high resolution PCM files, DXD formats, and DSD256 files as well.
Measuring 0.8 x 2.7 x 1.8" and weighing 0.2 lb, the uDAC5 is small enough to accompany you on your travels, and since it draws its power from your computer over USB, you don't need to lug a wall-wart around to make it work. The uDAC5 includes a USB cable. - Works with DSD Files
- DSD files are thought to generate an audio response much more akin to analog reproduction than a typical CD, giving you more lifelike detail. The uDAC5 is designed to play audio in the DSD256 formats, elevating the quality of compatible computer-sourced audio files, adding weight and speed to the bass, clarity and substance to midrange, and an opened, extended feeling to the highs.
- Multi-Purpose
- The uDAC5 can be used as a high-resolution desktop audio controller, a DAC for DSD over USB, or a headphone amp. A bevy of analogue and digital outputs enable instant high-resolution connection to amplifiers and active speakers.
- Mobile

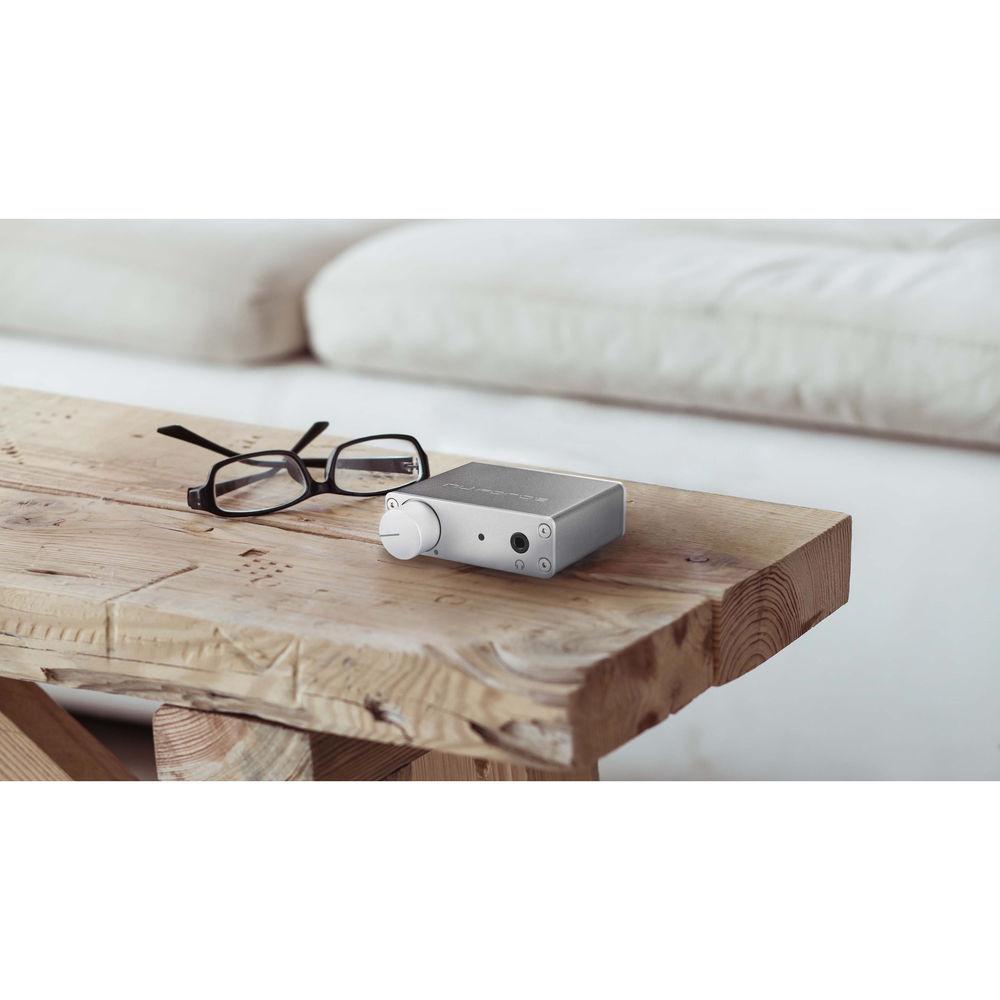

- Small enough to fit in your pocket, the uDAC5 is suitable for use on the move or at home. This portable DAC offers ease of use and connection for professionals and music lovers on the go.
UPC: 796435301521 In the Box NuForce uDAC5 High-Resolution DAC and Headphone Amplifier (Silver) USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NuForce uDAC5 High-Resolution DAC and Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNuForce uDAC5 Specs | Bit Depth | 16- and 24-bit | | Control | Rotary volume control | | I/O | USB Type-B input
1 x 3.5 mm output
1 x coaxial S/PDIF output
2 x RCA outputs (left and right) | | Frequency Response | 20 Hz to 20 kHz | | Sample Rate | Maximum: PCM: 384 kHz
DSD: DSD256
USB: PCM: 192, 352.8, 384 kHz
DSD: 2.8, 5.6, 11.2 MHz | | HD Audio | PCM: 192 kHz / 24-bit
DXD: 384 kHz
DSD: DSD256 | | Output Impedance | RCA: 100 Ohms
Headphone: 4.7 Ohms | | Power Consumption | Audio: 2 W | | Power Output | 2.0 Vrms | | Signal to Noise Ratio | 112 dB | | Total Harmonic Distortion | 0.01% | | Accessories | USB (type-A to type-B) | | Power Supply | Powered over USB, 1 A / 5 V | | Dimensions (H x W x D) | 0.8 x 2.7 x 1.8" / 21.0 x 68.0 x 45.0 mm | | Weight | 0.2 lb / 0.1 kg | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 3.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
