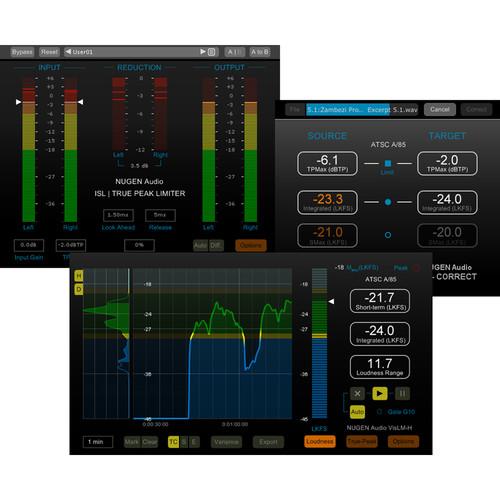

User Manual for NuGen Audio Loudness Toolkit 2 DSP - DAW Loudness Compliant Delivery Software Bundle

• Product category: Notation & Utility NuGen Audio
• Brand: NuGen Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for NuGen Audio Notation & Utility

Product description

• VisLM-H 2 - Industry Standard Loudness Metering (Download) VisLM-H 2 from NuGen Audio is a loudness meter plug-in and standalone application that offers a variety of loudness measurement tools intended for use in audio mastering, broadcast, film, and more. With a design focused on primary loudness parameters, the software combines an instant overview with detailed historical information, enabling the user to hit their target first time. Additional loudness logging and timecode functions allow for proof of compliance reporting and postmortem analysis with frame-accurate referencing.

  A fully resizable interface and many additional visualizations make it even simpler to identify exactly the information needed to choose the configuration that matches the current workflow precisely. The program remembers loudness data up to twelve hours, locked to timecode received directly from the NLE/DAW. Any minor edit or overdub immediately triggers overall loudness updates, eliminating the need for end to end re-measurement. Loudness data is saved with the session allowing full session loudness recall. Offline AudioSuite scans can be loaded into the real-time meter for immediate pre-loading of loudness history.
  Fast, Accurate Analysis
  • • Native NLE/DAW operation (Pro Tools, Avid Media Composer, FCP, Premiere, etc.)
    • Standalone application
    • International standards compliant
    • Timecode locked ReMEM enabled
    • Automated loudness overdub
    • Loudness history saved and recalled with session
    • Offline loudness 'pushed' to real-time meter
    • "Alert" warning options
    • Loudness boundary indicators
  Industry Standard Benchmark
  • • ITU-R BS. 1770, EBU R128 , CALM Act compliant
    • Momentary, short term, and Integrated loudness
    • Loudness range
    • Overall program loudness measurement
    • Maximum True Peak Level meters
    • "EBU Mode" meters
    • Automatic mono through 5.1 compatibility plus ASWG 7.1 support
    • Highly configurable
  Loudness History Profiling
  • • Historical loudness profile
    • Fully resizable history view
    • Loudness histogram
    • Offline data export
    • Multiple export parameters
    • Postmortem timecode referencing
    • Full ReMEM functionality requires a time-code lock to be provided to the plug-in by the NLE/DAW
  Standards
  • Compatible with all recommendations and guidance based upon the international standard ITU-R B.S. 1770, revisions 1, 2, and 3 including:
    • ATSC A/85 (Calm Act)
    • EBU R128
    • EBU R128 S1
    • ARIB TR-B32
    • OP-59
    • AGCOM 219/9/CSP
    • Portaria 354
    • DPP
• VisLM-H DSP Extension - AVID HDX Support for VisLM-H2 (Download) The VisLM-H DSP Extension from NuGen Audio adds AAX DSP compatibility to the native VisLM-H2 plug-in version, allowing it to take full advantage of Avid's HDX hardware.
• LM-Correct 2 - Auto Loudness Compliant Audio Software (Download) LM-Correct 2 from NuGen Audio is software that provides an immediate and hassle-free route to creating loudness-compliant audio, and in the process saves time and prevents costly mistakes. Either within a DAW/NLE, or as a stand-alone application, LM-Correct 2 delivers automated compliance with look ahead True-Peak correction. Used in conjunction with a real-time meter, the program saves iterative adjustments to the mix as target levels are approached, allowing transparent in-edit 'quick-touch' finishing of audio.

  For file based-processes LM-Correct rapidly assesses and adjusts the entire file faster than real time. Automatically handling audio files from mono through 5.1, the software is compliant with all current loudness standards, and if needed the optional dialog-gated measure can be specified. Audio can be transformed with a single click from one specification to the next, with faster than real-time processing when delivering multiple versions or re-purposing for different regions and play-out specifications is required.
  New Features in Version 2
  • • M Max measure/correct (dynamic correction)
    • S Max measure/correct (dynamic correction)
    • Single click analysis and correction
    • LRA measure/correct (requires optional DynApt extension)
    • EBU R128 S1 support
    • Game audio (ASWG 7.1 surround)
    • Compact interface
    • Expanded interface
    • Options panel
    • Text file processing summary log
  Fast, Accurate Analysis and Correction
  • • Single-click solution to loudness conformance
    • Immediate finishing of audio to loudness standards
    • Editor based and stand alone operation
    • Integrated true-peak back-stop limiter
    • Text file analysis and processing summaries
    • Optional dialog gated measure
  Compliance
  • • Automated standard compliance
    • ITU-R BS. 1770 | EBU R128 | CALM Act compliant
    • Integrated loudness target
    • Maximum True Peak level
    • Short-term and momentary loudness limiting
    • Optional DynApt LRA dynamics targeting
    • "EBU Mode"
    • Automatic mono through 5.1 compatibility plus ASWG 7.1 support
  Intuitive Operation
  • • Clear parameter read out
    • Simple one-click analysis
    • Dial in target values directly
    • One-click correction
    • Offline faster than real-time advantage
  Standards
  • Compatible with all recommendations and guidance based upon the international standard ITU-R B.S. 1770, revisions 1, 2 and 3 including
    • ATSC A/85 (Calm Act)
    • EBU R128
    • EBU R128 S1
    • ARIB TR-B32
    • OP-59
    • AGCOM 219/9/CSP
    • Portaria 354
    • DPP
• ISL 2 DSP - Real-Time True Peak Limiter Plug-In for Pro Tools HDX (Download) ISL 2 DSP from NuGen Audio is a true peak limiter designed for use in audio mixing and mastering, and provides the necessary final step when preparing audio for broadcast. Look-ahead functionality means the audio is examined before it passes through the limiter, helping to ensure that any transient peaks are limited correctly to avoid distortion. The true peak limit can be set directly to help ensure compliance with broadcast standards across a variety of mediums.

  With steering and ducking meters, the software provides useful settings. Whether preserving directional integrity, atmospheric ambience, or taming a surround center channel, the plug-in delivers the information and control needed to achieve those goals. Processing enhancements assess the incoming audio for frequency content and automatically take care of any minor adjustments required when LF content drives the limiter, delivering increased transparency whilst maintaining intuitive operation.
  Transparent True Peak Limiting
  • • Adjustable look-ahead
    • Two-stage, non-linear adaptive algorithm
    • Adjustable channel linking
    • Includes iTunes True Peak option
  Standard Compliant
  • • Compatible with ITU-R B.S. 1770
    • True brick-wall limited output
    • Mono through 7.1 surround compatible
  Clear Intuitive Operation
  • • Intelligent adaptive algorithm
    • Clear metering
    • Multiple diagnostic listen modes
  Reliable Metering
  • • Accurate, standard compliant I/O metering
    • Precise direct numeric maxima
    • Adjustable ballistics and color splits
  Standards
  • Compatible with all recommendations and guidance based upon the international standard ITU-R B.S. 1770, revisions 1, 2, and 3 including:
    • ATSC A/85 (Calm Act)
    • EBU R128
    • EBU R128 S1
    • ARIB TR-B32
    • OP-59
    • AGCOM 219/9/CSP
    • Portaria 354
    • DPP

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VisLM-H 2 - Industry Standard Loudness Metering (Download)

  Mac System Requirements	OS X 10.7.x 512 MB RAM For plug-in use host software that supports 64-bit and 32-bit versions of Audio Units, AAX Native, AudioSuite, VST, VST3 and 32-bit RTAS plug-in formats
  Windows System Requirements	Windows XP or above 512 MB RAM For plug-in use host software that supports 64-bit and 32-bit versions of AAX Native, AudioSuite, VST, VST3 and 32-bit RTAS plug-in formats

• VisLM-H DSP Extension - AVID HDX Support for VisLM-H2 (Download)

  System Requirements

  Requires VisLM-H2 software

• LM-Correct 2 - Auto Loudness Compliant Audio Software (Download)

  System Requirements

  Mac OS X 10.7.x 512 MB RAM For plug-in use host software that supports 64-bit and 32-bit versions of Audio Units, AAX, AudioSuite (32-bit), VST, VST3 and 32-bit RTAS plug-in formats Windows Windows XP or above 512 MB RAM For plug-in use host software that supports 64-bit and 32-bit versions of AAX, AudioSuite (32-bit), VST, VST3 and 32-bit RTAS plug-in formats

• ISL 2 DSP - Real-Time True Peak Limiter Plug-In for Pro Tools HDX (Download)

  System Requirements

  Mac macOS 10.7 and higher 512 MB RAM minimum Windows (64-Bit) Windows Vista and higher 512 MB RAM minimum
