User Manual for Numark M4 - Three-Channel DJ Mixer with 3-Band EQ Click to enlarge the picture
Contents of the user manual for the Numark M4 - Three-Channel DJ Mixer
- Product category: DJ Mixers Numark
- Brand: Numark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Numark DJ Mixers
 |
User manual for the Numark M4 - Three-Channel DJ Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Numark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Numark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Numark product will considerably shorten its lifespan!
|

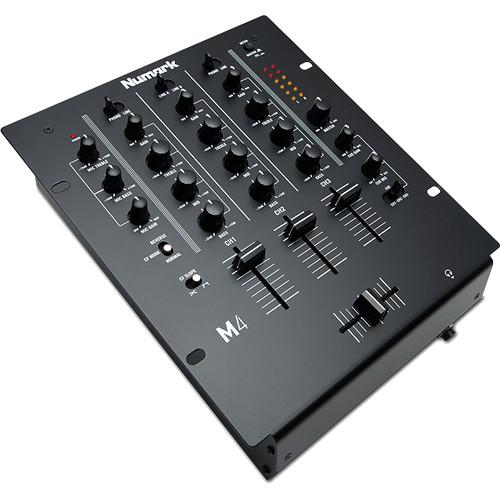

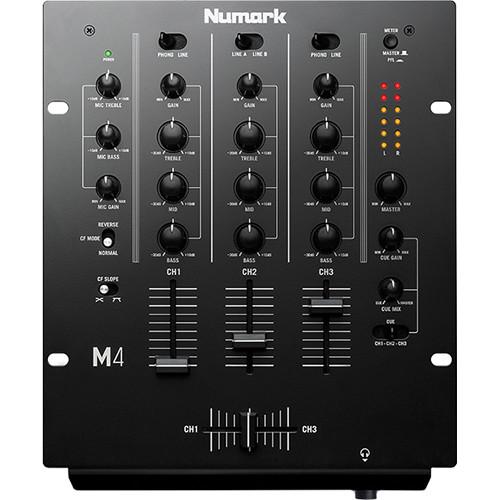

Product description The black M4-DJ Mixer from Numark is designed for beginner and professional DJs and features a comprehensive three-channel layout with steep three-band EQ/rotary kills on each channel. The mixer offers a compact design that enables it to fit into any 10" mixer case or coffin enclosure and delivers the essential features and quality audio performance suitable for home and mobile DJs alike. The crossfader is replaceable and features slope adjustment and crossfade-style headphone monitoring which makes cuing quick and easy. The M4 ships with an AC power adapter. -

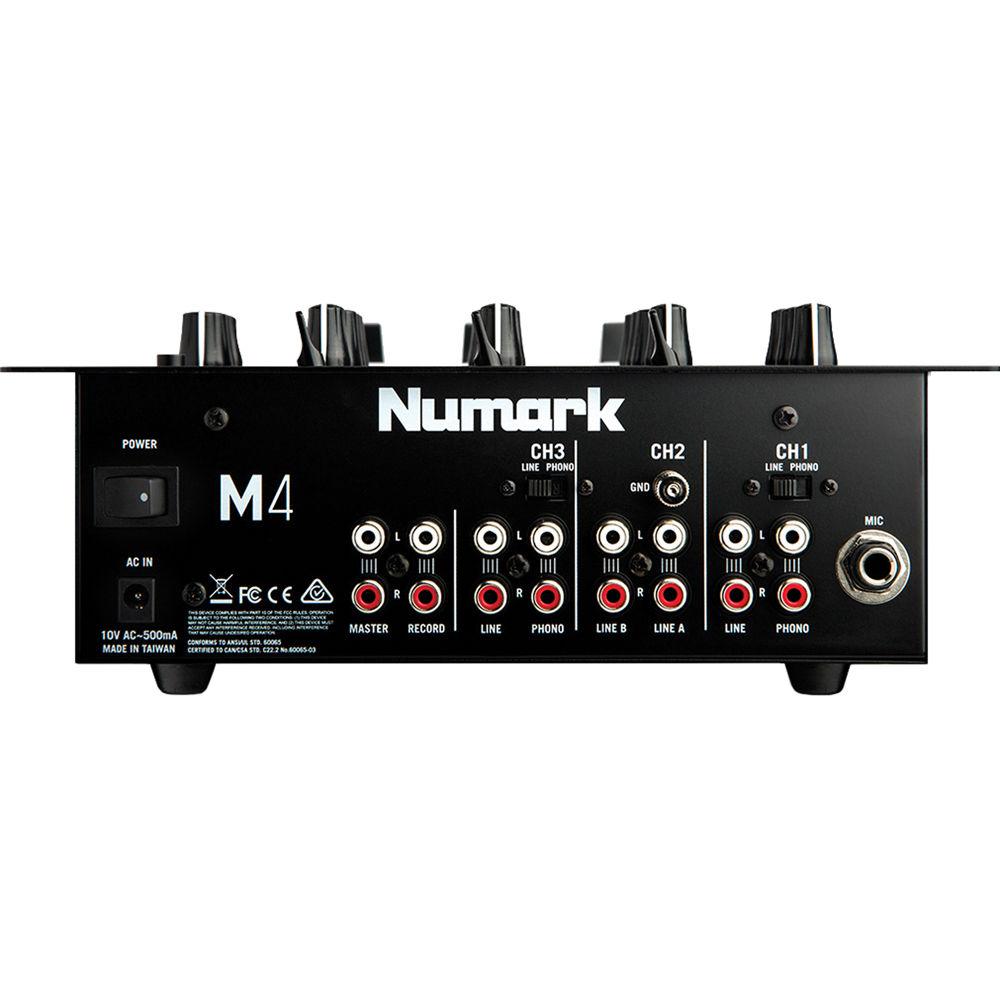

- Inputs: Two phono/line switchable (RCA), four line (RCA), mic (1/4" / 6.3 mm)
- Outputs: Master (RCA), Record (RCA), headphone (1/4" / 6.3 mm - stereo)
- Steep three-band EQ/rotary kills on each channel
- Microphone input with 2-band EQ
- Six-segment LED display for monitoring signal strength
- Toggle for master and PFL metering
- Smooth digital crossfader with reverse switch and continuous rotary slope control
- Replaceable crossfader
- Look-ahead peak-limiting on headphone and master outputs
UPC: 676762161312 In the Box Numark M4 - Three-Channel DJ Mixer with 3-Band EQ (Black) AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Numark M4 - Three-Channel DJ Mixer with 3-Band EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNumark M4 Specs | Total # Of Channels | 3 | | Input Connectors | 2 Turntable/Line Switchable: L/R RCA phono unbalanced
4 Line: L/R RCA phono unbalanced 1 Microphone: 1/4" / 6.3 mm | | Output Connectors | Master 1: L/R RCA Phono Unbalanced
Record: L/R RCA Phono
Headphone: 1/4" / 6.3 mm TRS | | Inputs and Outputs | Inputs
Line
10 kOhms input impedance
80 mV-RMS sensitivity for 0 dB output
Mic
600 ohm input impedance, unbalanced
1.5 mV-RMS sensitivity for 0 dB output
400 mV-RMS max input
Phono
47 kOhms input impedance
1.3 mV-RMS sensitivity @ 1 kHz for 0 dB output
Outputs
Line: 7 VRMS max
Headphone: 0.5 W into 47 ohms | | Signal to Noise Ratio | (Max output JIS-A weighted)
Line: >100 dB
Mic: >95 dB
Phono: >85 dB | | Distortion | <0.05 % | | Frequency Response | Line: 20 Hz to 20 kHz ±0.5 dB
Mic: 20 Hz to 15 kHz ±0.5 dB
Phono: ±1 dB (except for controlled attenuation of -3 dB @ 20 Hz to reduce rumble and feedback) | | Channel EQ | Bass: +12/-35 dB @ 20 Hz
Middle: +12/-25 dB @ 1.3 kHz
Treble: +12/-2 0dB @ 15 kHz | | Power | 10 VAC 500 mA | | Dimensions (W x L x D) | 9.6 x 12.0 x 4.0" / 24.4 x 30.5 x 10.2 cm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 14.6 x 13.3 x 6.7" |
