User Manual for Numark M6 USB 4-Channel USB DJ Mixer Click to enlarge the picture
Contents of the user manual for the Numark M6 USB 4-Channel USB DJ
- Product category: DJ Mixers Numark
- Brand: Numark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Numark DJ Mixers
 |
User manual for the Numark M6 USB 4-Channel USB DJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Numark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Numark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Numark product will considerably shorten its lifespan!
|

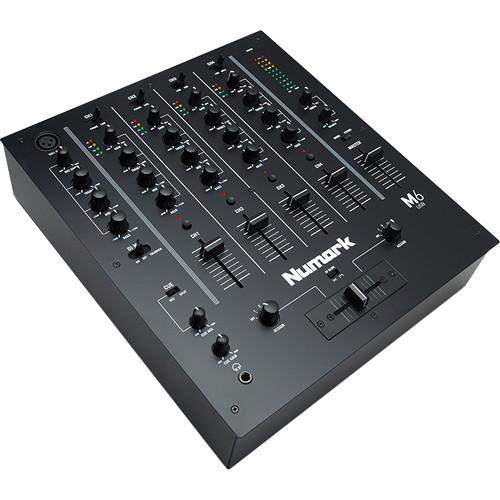

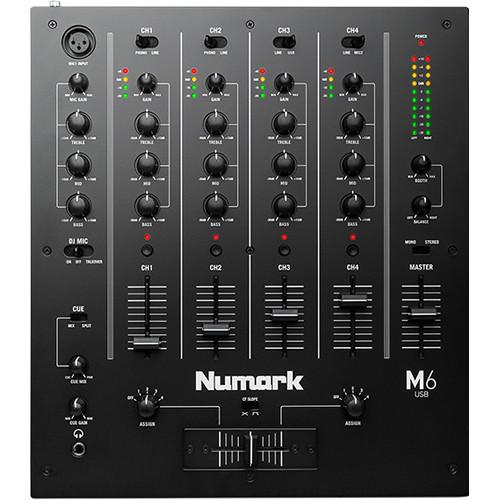

Product description The black M6 USB from Numark is a four-channel DJ mixer well suited for clubs, professionals, and home enthusiasts. The integrated USB audio interface is class compliant and connects to either Mac or PC without the need for drivers. Play music from any optional DJ software and record the mix into any audio recording application. The M6 features a 3-band EQ per channel, dedicated microphone input with EQ, and a replaceable crossfader with slope control. The master output offers balanced XLR and unbalanced RCA jacks, while booth and recording outputs are available via RCA connections. The M6 USB ships with a USB cable and a standard IEC power cord. -
- Four input channels, each with gain, 3-band EQ, and LED metering
- USB computer connection for playing and recording with Mac or PC
- Play music from music-player software
- Record your mix to your computer
- Multiple phono, line, and mic inputs
- Dedicated XLR mic channel and additional mic input on channel 4
- Replaceable crossfader with slope control
- Assign any channel to either side of the crossfader
- Class Compliant: This product is immediately compatible with every current and future version of Mac OS X and iOS and with Windows (98SE and up) operating systems
UPC: 676762164214 In the Box Numark M6 USB 4-Channel USB DJ Mixer (Black) USB Cable IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Numark M6 USB 4-Channel USB DJ Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

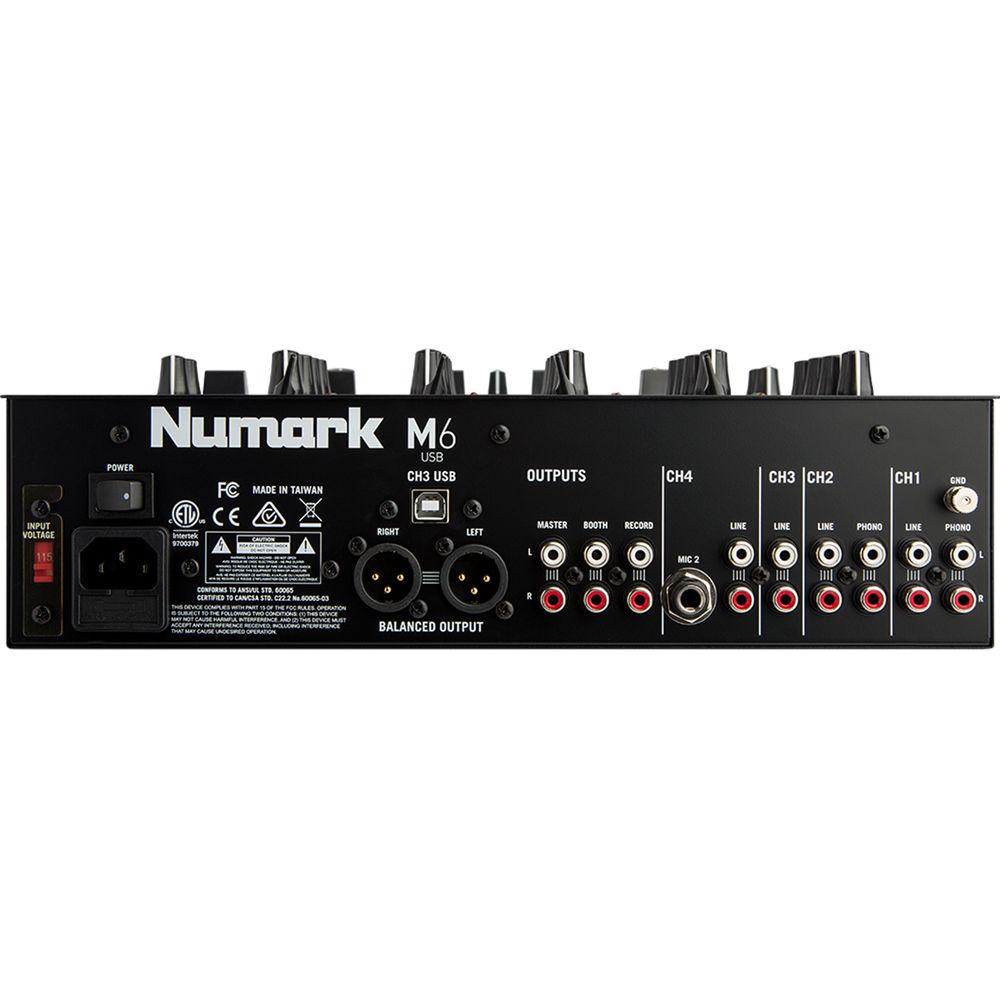

Technical parametersNumark M6 Specs | Inputs | Line: 4 x stereo RCA
Phono: 2 x stereo RCA
Mic 1: XLR
Mic 2: 1/4" / 6.4 mm | | Outputs | Main: Stereo XLR / stereo RCA
Booth: Stereo RCA
Record: Stereo RCA
Headphone: 1/4" / 6.4 mm | | USB Connection | Type B | | Line Input | 10 kOhms input impedance
77 mV RMS sensitivity for 1.22 V output | | Mic Input | 600 ohms input impedance unbalanced
1.1 mV RMS sensitivity for 1.22 V output
60 mV RMS max input | | Phono Input | 47 kOhms input impedance
1.3 mV RMS sensitivity at 1 kHz for 1.22 V output | | Line Output | 6.7 V RMS maximum | | Headphone Output | 0.5 W into 47 ohms | | Distortion | < 0.01% | | Signal to Noise Ratio | Signal to Noise Ratio (maximum output, JIS-A weighted):
Line: >96 dB
Mic: >94 dB
Phono: >79 dB | | Frequency Response | Line: 20 Hz to 20 kHz (± 0.5 dB)
Mic: 20 Hz to 15 kHz (± 0.5 dB)
Phono: ±1 dB (except for controlled attenuation of -3dB at 20 Hz to reduce rumble and feedback) | | Ducking | Microphone Talkover: -15 dB | | Channel EQ | Bass: +12/-32 dB at 60 Hz
Middle: +12/-32 dB at 1.2 kHz
Treble: +10/-28 dB at 15 kHz | | Microphone EQ | Bass: ±12 dB at 100 Hz
Middle: ±10 dB at 1.2 kHz
Treble: ±12 dB at 15 kHz | | Power Consumption | Typical: 9.1 W
With Full Headphone Output: 11.6 W | | Dimensions (WxDxH) | 12.63 x 14.25 x 4.00" / 32.07 x 36.20 x 10.16 cm | | Weight | 9.6 lb / 4.4 kg | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 17.0 x 16.5 x 7.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
