User Manual for Numark NS7III 4-Deck Serato DJ Controller Mixer with Multiscreen Display Click to enlarge the picture
Contents of the user manual for the Numark NS7III 4-Deck Serato DJ Controller
- Product category: DJ Controllers Numark
- Brand: Numark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Numark DJ Controllers
 |
User manual for the Numark NS7III 4-Deck Serato DJ Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Numark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Numark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Numark product will considerably shorten its lifespan!
|

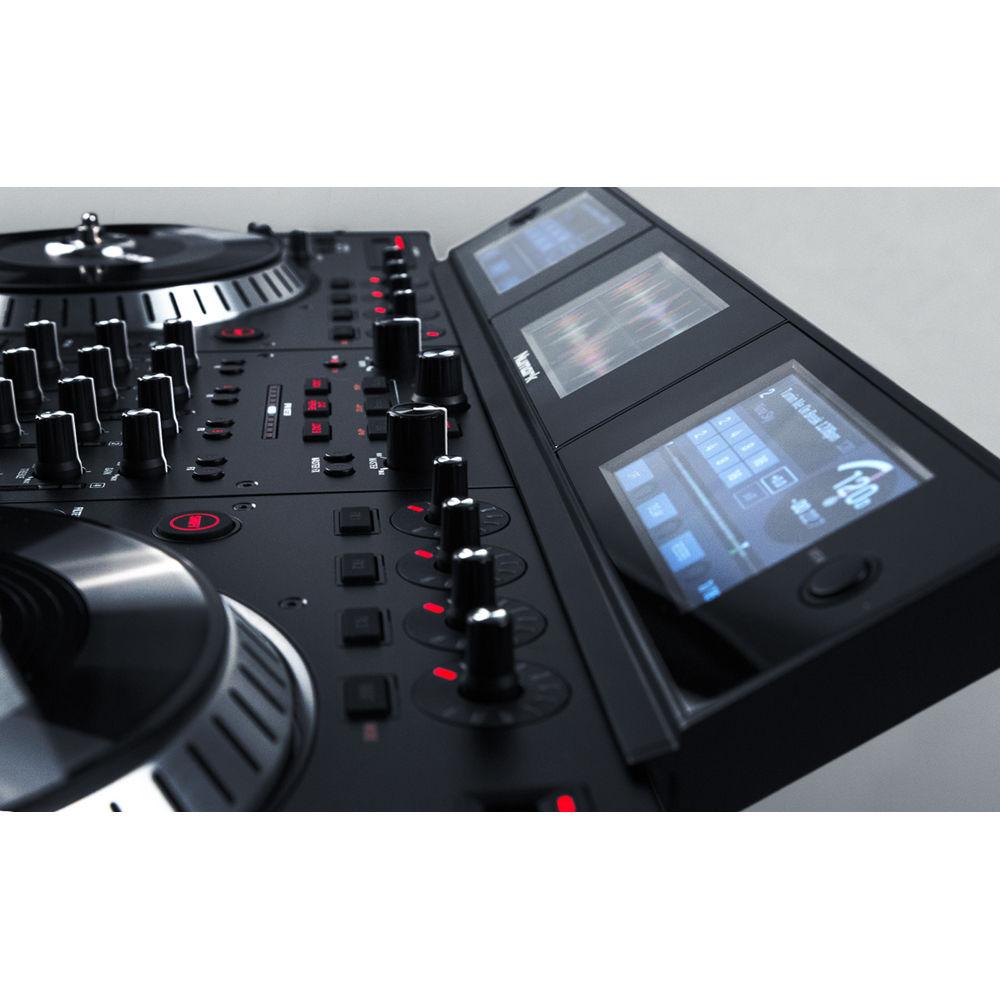

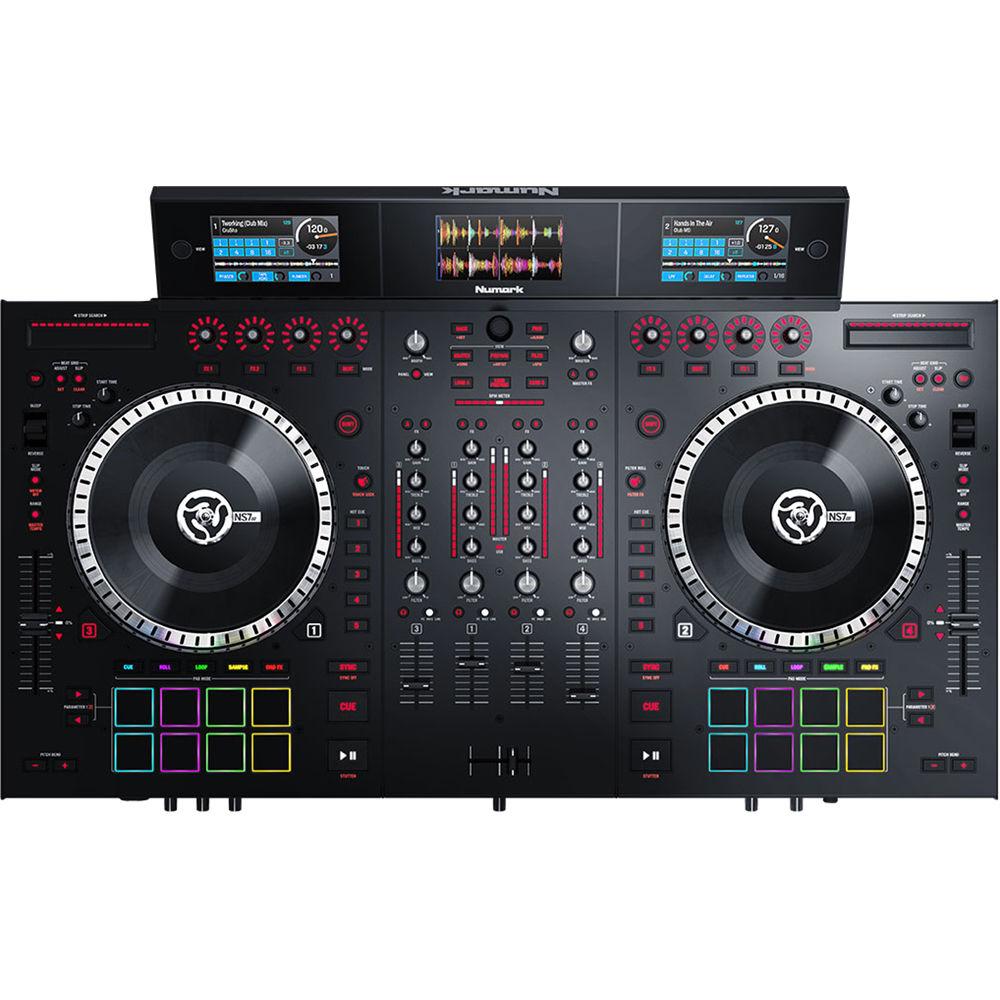

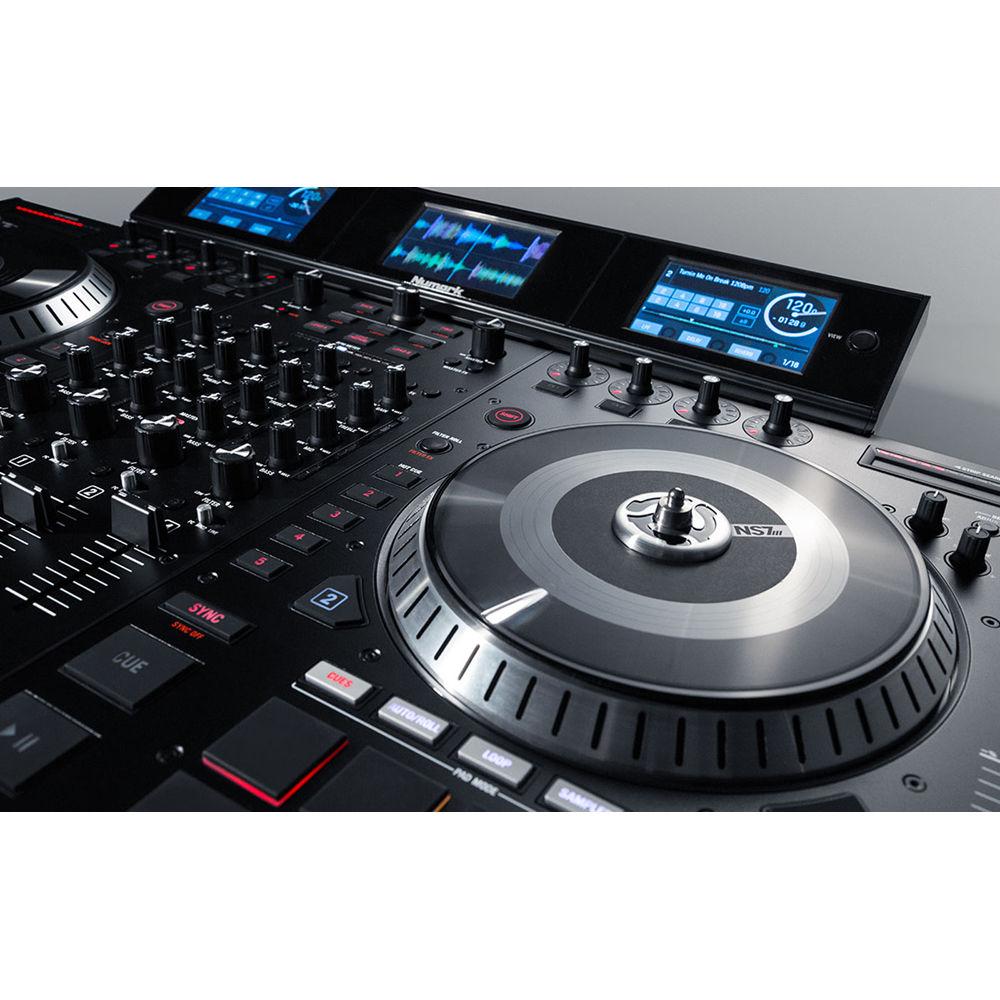

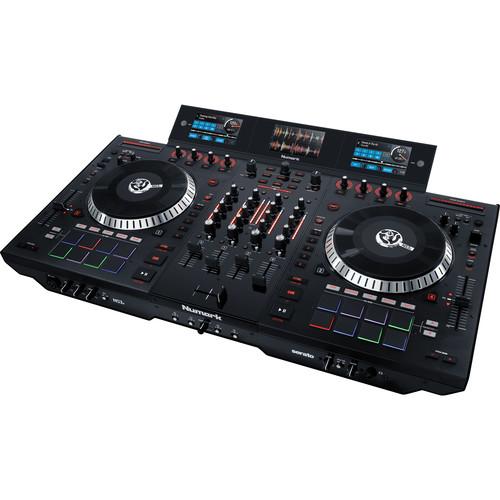

Product description The Numark NS7III is a professional four-deck Serato DJ controller and mixer, designed for DJs to manage all critical performance elements without the need for looking at a laptop screen. The NS7III features three, high-resolution 4.3" color displays, two variable-torque motorized platters, 16 velocity-sensitive Akai MPC pads with backlit RGB feedback, and a built-in 24-bit USB 2.0 audio interface.Two screens provide moving waveforms, playhead, deck, and FX status, while the third, central screen offers a dedicated view of Serato's track library. The third screen can also be switched to display stackable, parallel waveforms for beatmatching control of active programs. The motorized platters offer authentic vinyl records to provide the feel of a professional turntable with high-resolution MIDI tracking, while touch activated knobs allow you to control filters, EQs, and Serato's 12 professional iZotope FX. Additionally, there are 10 pad modes for hot cues, loops, song slicing, and sample triggering. The NS7III features a rugged and roadworthy metal enclosure and offers zone/booth and balanced XLR outputs. The system is Serato NoiseMap ready for use with extended DVS setups and ships with Serato DJ for plug and play operation. -
- Premium Serato DJ controller with three high-resolution color screens, including the ability to display stackable waveforms
- Stacked parallel waveforms on central screen for simple, direct, visual beat matching
- Screens provide 1:1 real-time feedback of Serato DJ, letting you close or move the source laptop, and focus on the music
- Dedicated track library screen with corresponding navigation controls
- 4 decks of Serato DJ software control; built-in 4-channel audio mixer
- 2 variable-torque motorized platters with high-resolution MIDI tracking
- Touch-activated knobs produce groundbreaking control of filters, EQs, and more
- Authentic vinyl records provide the feel of professional DJ turntables
- 16 velocity-sensitive Akai Professional MPC pads with backlit RGB feedback
- 10 pad modes for hot cues, loops, song slicing, and sample triggering
- Dedicated 3-way touch-activated filter knob on each channel
- Dedicated touch-activated control of Serato’s 12 professional iZotope FX
- Built-in professional 24-bit USB 2.0 audio interface
- Zone/booth outputs and balanced XLR outputs for club use
- Rugged, road-worthy metal construction
- Serato NoiseMap ready for use with extended DVS setups
- Plug and play with Serato DJ (included) - no upgrade purchase required
UPC: 676762186919 In the Box Numark NS7III 4-Deck Serato DJ Controller/Mixer with Multiscreen Display USB Cable Serato Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Numark NS7III 4-Deck Serato DJ Controller Mixer with Multiscreen Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNumark NS7III Specs | | | Bundled Software | Serato DJ Pro | | Windows System Requirements | Windows 10, 8.1, 7 (with SP1)
32-bit, 64-bit
CPU: Intel Core i7, i5, i3: 1.07 GHz or faster
Memory: 4 GB RAM or more | | Mac System Requirements | macOS High Sierra 10.13
macOS Sierra 10.12
OS X 10.11
CPU: Intel processor Core i7, i5, i3: 1.07 GHz or faster
Memory: 4 GB RAM or more | | Additional System Requirements | USB: Available USB 2.0 port
Screen Resolution: 1280 x 720
Free HD Space: 5 GB | | | | Signal to Noise | Signal-to-noise ratio (full USB signal path, A-weighted)
Dynamic Range (Codec): >114 dB
Balanced Outputs (XLR): >95 dB
Unbalanced Outputs (Line, RCA): >94 dB
Unbalanced Outputs (Booth, RCA): >94 dB
Headphone Outputs: >94 dB | | Frequency Response | 20 Hz to 20 kHz (+0.2 dB) | | Channel Separation | >94 dBr | | | | Signal-to-Noise Ratio | Signal-to-Noise Ratio (full analog signal path, A-weighted)Balanced Outputs (XLR): >95 dB
Unbalanced Outputs (Line, RCA): >92 dB
Unbalanced Outputs (Booth, RCA): >91 dB
Headphone Outputs: >94 dB | | THD + N | THD+N (A-weighted)
Balanced Outputs (XLR): <0.008%
Unbalanced Outputs (RCA): <0.008%
Headphone Outputs: <0.008%
Phono Input (at 180 mV): <0.07% | | | | Microphone | Microphone 1 THD+N (at 1.8 V, A-weighted)
Balanced Outputs (XLR): <0.01%
Unbalanced Outputs (RCA): <0.01%
Headphone Outputs: <0.01%
Microphone 2 THD+N (at 650 mV, A-weighted)
Balanced Outputs (XLR): <0.009%
Unbalanced Outputs (RCA): 0.009%
Headphone Outputs: <0.009% | | | | Sample Rate | 44.1 kHz | | Bit Depth | 24-bit | | | | Connectors | Inputs
Line/Phono: 4 x sets of stereo RCA
Mic 1: Combo XLR-1/4" / 6.35 mm
Mic 2: 1/4" / 6.35 mm TRS Outputs
Stereo Master 1: 2 x XLR
Stereo Master 2: 2 x RCA
Stereo Booth: 2 x RCA
Headphones: 1 x 1/4" / 6.35 mm, 1 x 1/8" / 3.5 mm | | Dimensions (W × H × D) | 29.7 x 18.2 x 4.8" / 754.4 x 462.3 x 121.9 mm | | Weight | 31.6 lb / 14.3 kg | | | | Package Weight | 45.6 lb | | Box Dimensions (LxWxH) | 36.0 x 26.0 x 11.0" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
