User Manual for Numark NVII - Intelligent Dual-Display Controller for Serato DJ Click to enlarge the picture
Contents of the user manual for the Numark NVII - Intelligent Dual-Display Controller
- Product category: DJ Controllers Numark
- Brand: Numark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Numark DJ Controllers
 |
User manual for the Numark NVII - Intelligent Dual-Display Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Numark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Numark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Numark product will considerably shorten its lifespan!
|

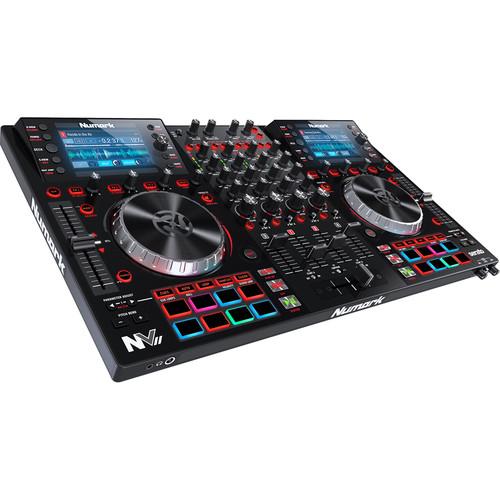

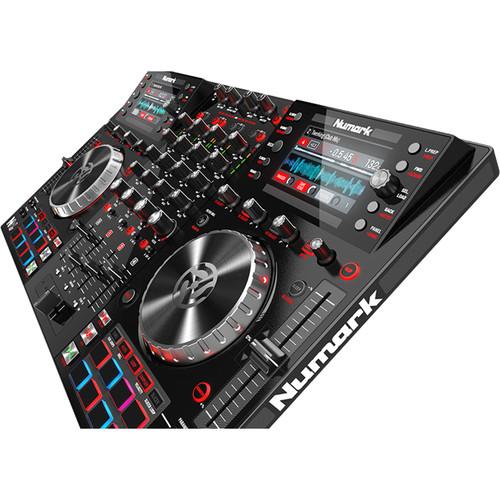

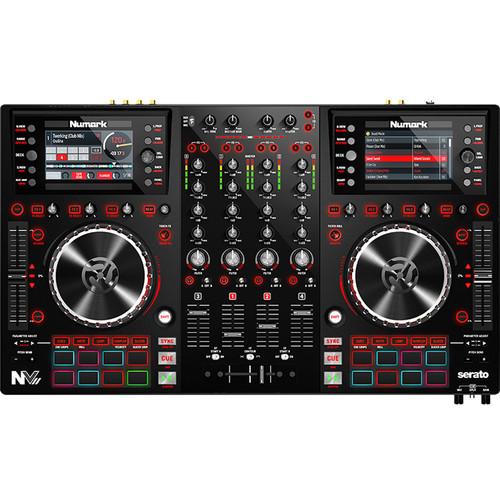

Product description The NVII - Intelligent Dual-Display Controller for Serato DJ from Numark is an update to the original NV Serato controller, featuring an updated layout for fast, responsive operation, grid lines for seamless beat-matching, and support for 5-column sorting to search and view your music in a variety of ways. The NVII incorporates two 4.3" full-color displays to show Serato DJ's library, spinning virtual decks, effects (FX), cue points, waveforms, and more to provide 1:1 control up to four Serato decks with mouse-free library navigation controls. This design allows for the DJ's laptop to remain closed and out of view of the audience while performing a set.
For tactile control, the device includes two 5" touch-activated platters for scrubbing, scratching, and jogging tracks, as well as sixteen RGB backlit velocity-sensitive pads with over 10 pad modes for finger drumming, looping, sample slicing, setting cue points, and more. It also includes a professional grade crossfader with curve control and touch activated controls for FX, EQ, and filter knobs.
The DJ controller comes with Toolroom Remix packs that feature professionally produced audio stems that you can remix into new compositions. A built-in audio interface provides RCA outputs for the master and booth as well as balanced XLR outputs for sending the signal to professional PA systems. The audio interface also includes two headphone outputs, one microphone input, one RCA pair input, and connects to your Mac or PC computer via USB 2.0. -
- 4-decks of Serato DJ software control in a sleek, low-profile design
- Integrated displays let you focus on the music, not the computer
- Full-color displays provides 1:1 real-time visualization of Serato DJ
- Dedicated hardware controls for all critical software functions
- Gridlines on screen enable perfect beat matching
- 5-column options to show Song, Artist, Time, BPM, and Key
- Dual 5" hyper-responsive metal platters with search and scratch modes
- Adaptive learning platter technology for optimum response in any environment
- 16 velocity-sensitive trigger pads with backlit RGB feedback
- 10 pad modes for hot cues, loop slicing, and sample triggering
- Mouse-less library browsing controls with dedicated on-screen feedback
- Integrated BPM metering for manual beat matching; Sync button for an instant match
- Pro-grade crossfader with Fader Start and curve adjustment
- Built-in professional USB 2.0 audio interface
- Aux and balanced mic inputs seamlessly integrate additional audio sources
- Zone/booth outputs and balanced XLR outputs for club use
- Serato DJ included via download
UPC: 676762187718 In the Box Numark NVII - Intelligent Dual-Display Controller for Serato DJ Serato DJ Software Download Toolroom Remix Pack Download USB Cable Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Numark NVII - Intelligent Dual-Display Controller for Serato DJ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNumark NVII Specs | System Requirements | Supported Operating Systems
Mac OS X: 10.8, 10.9, 10.10, 10.11.1
Windows: 7 SP1, 8, 8.1, 10
Supported Processors
i3, i5 or i7 (32 and 64-bit)
1.07 GHz+ Core 2 Duo 32-bit
2.0 GHz+ 64-bit
2.4 GHz+
Minimum RAM
32-bit OS: 2 GB
64 bit OS: 4 GB
USB: 1x USB 2.0 port

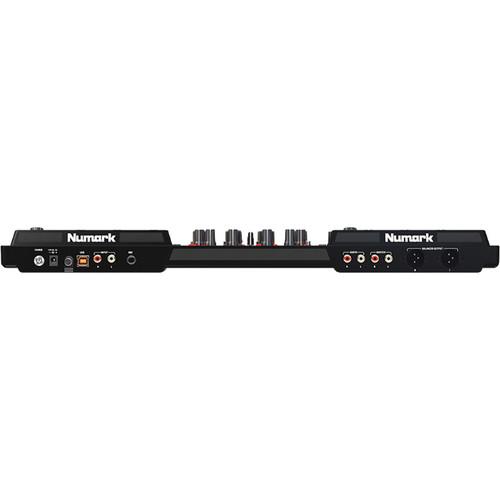

Note: Intel Processors are required for use with Serato DJ Software | | Connections | 1x RCA stereo input pair, unbalanced (line-level)
1x 1/4" / 6.35 mm TRS input (microphone, direct to Master Outputs)
2x XLR outputs, balanced (Master)
2x RCA stereo output pairs, unbalanced (Master, Booth)
1x 1/4" / 6.35 mm TRS output (headphones)
1x 1/8" / 3.5 mm TRS output (headphones) | | USB | 1x USB 2.0 | | Output Level | Master Volume (100%): 2.25 Vrms
Master Volume (80%): 1.19 Vrms | | Signal to Noise Ratio | Master Volume (100%, A-weighted): -112 dB
Master Volume (80%, A-weighted): -111 dB
Master Volume (100%, unweighted): -109 dB
Master Volume (80%, unweighted): -108 dB | | Total Harmonic Distortion (THD) + N | Master Volume (100%): 0.005%
Master Volume (80%): 0.002% | | Sample Rate | 44.1 kHz | | Bit Depth | 16-bit | | Displays | 2x 4.3" / 109.2 mm full color | | Turntable Platter | 2x 5.0" / 127.0 mm touch activated | | Pads | 16x RGB backlit velocity sensitive | | Power Requirements | 12 VDC, 2 A, center-positive | | Dimensions | 21.6 x 13.4 x 2.1" (54.9 x 34 x 5.4 cm) | | Weight | 7.0 lb / 3.2 kg | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 28.0 x 16.3 x 5.2" |
