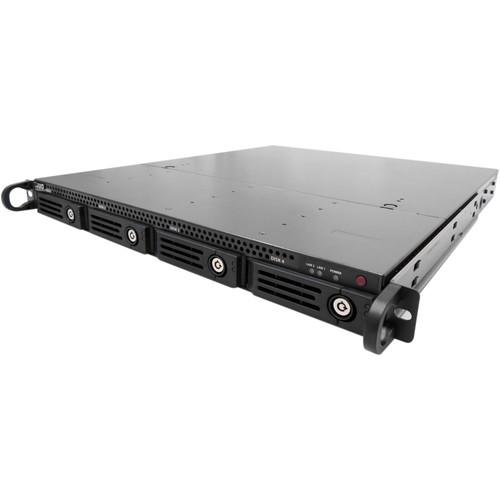

User Manual for NUUO Crystal Series 64-Channel UHD NVR Click to enlarge the picture
Contents of the user manual for the NUUO Crystal Series 64-Channel UHD NVR
- Product category: Network Video Recorders (NVRs) NUUO
- Brand: NUUO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NUUO Network Video Recorders (NVRs)
|
User manual for the NUUO Crystal Series 64-Channel UHD NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NUUO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NUUO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NUUO product will considerably shorten its lifespan!
|
Product description Stream and record up to 64 video channels with this Crystal Series NVR from NUUO, at resolutions up to 3840 x 2160 and at throughputs up to 250 Mbps. Four channel licenses are included and additional licenses are available separately. Equipped with four SATA ports, each of which can accommodate an HDD up to 9TB, this NVR supports up to 36TB of internal storage, (HDDs available separately). External storage options include PCs via internet connection, network servers, eSATA drives, and USB storage devices.
This Crystal Series NVR enables simultaneous live viewing of up to 64 channels or simultaneous playback of up to 16 channels via its HDMI and VGA ports. Via HDMI, local display resolutions go up to 1080p. Network bandwidth is optimized while ensuring high-quality recording and playback by using H.265, H.264, MJPEG-4, MPEG, or MxPEG compression. Bidirectional audio is supported, as well as remote monitoring from Windows/Mac systems and iOS/Android devices. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Event Notification
-
- System event response (two system events and three action types)
- Alarm event response (nine recording events and up to six action types)
- Responses to event abnormalities (three device events and up to seven action types)
- Advanced IVS (Intelligent Video Surveillance) and event types including counting, presence, abandoned object, and tamper detection
- Automatic IVS (Intelligent Video Surveillance) reports
- Camera network failover
- Camera edge motion detection
- Camera Diversity
-
- Supports over 1200 camera models
- Generic fisheye dewarping and calibration tool for all single-lens 360° cameras
- Dewarp processing supported by GPU rather than CPU
- ImmerVision and 3rd party fisheye cameras supported by panoramic 360° PTZ
- Thermal imaging cameras supported by IVS (Intelligent Video Surveillance) analytics
- Multiple streaming profiles
- Bandwidth control by auto-switching stream profiles
- Stitch up to 10 independent cameras together to create a panoramic view by using NUUO Image Fusion
- Reliability
-
- System health monitoring, logging, and reporting
- Redundant power supply capability
- Automatic hardware and software Watchdog reset
- False alarm reduction algorithm
- FTP automatic backup system
- Recording failover and Volume Group
- Scalability
-
- Unlimited task-specific servers connected to a single management server
- Unlimited scalability for video wall applications using NuMatrix
- Recording failover
- Modular design to enhance the connectivity of advanced features such as access control, IVS (Intelligent Video Surveillance), LPR (License Plate Recognition), PoS (Point of Sale), and metadata
- Efficiency
-
- Instant playback in Liveview
- Event and motion search in Playback
- Thumbnail views in Playback Timeline
- Multiple playback options
- Snapshot in Liveview and Playback
- Multiple text data overlays on individual camera views
- Event-driven resolution control utilizing Boosting Record
- Graphical floor plan interface powered by eMap
- NuMatrix (video wall) configuration with automated camera touring
- Enhanced hard drive recording efficiency using File Ring Technology
- Simultaneously export and/or backup multiple videos
- Device group
- Central Management
-
- Remote system configuration and viewing through the NuClient platform
- Centrally managed system-wide firmware updates and license control
- System Navigator allows enterprise-level control of multiple management servers
- Single unified client software manages both legacy and current generation of products
- System-wide time synchronization with NTP in management servers
- Centralized I/O and event notification capability
- Advanced authority level control for custom permission and user privileges
- Volume group structure
In the Box NUUO Crystal Series 64-Channel UHD NVR (No HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NUUO Crystal Series 64-Channel UHD NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNUUO CT-4001R-US Specs | Video Channels Supported | 64 max | | Licenses | 4 channel license included (additional licenses available separately) | | Maximum Recording Throughput | 250 Mbps | | Live View | 4 channels per view
View tour to 64 channels | | CPU Model | Intel Celeron | | Operating System | Linux embedded | | Drive Bays | 4 x SATA III HDD bays (each supports up to 9 TB) | | Maximum Internal Capacity | 36 TB (available separately) | | RAID | 0/1/5/10 | | I/O Interface | 2 x USB 2.0 for mouse, UPS
1 x USB 3.0
1 x eSATA for DAS
1 x VGA
1 x HDMI | | LAN | 2 x RJ45 Gigabit ports | | Wireless Transmission Speed | 10/100/1000 Mbps | | Audio | Two-way | | Audio Connectors | 1/8" input
1/8" output | | Mobile Support | iPhone, iPad, Android | | Client Operating System | Windows XP (32 bit), Windows 7 (32 & 64 bit), Windows 8 (32 & 64 bit), Windows 8.1 (32 & 64 bit), and Mac OS (Version 10.7, 10.8, & 10.9) | | Video Compression | H.265, H.264, MPEG-4, MJPEG, and MxPEG | | Languages Supported | Czech, Chinese (simplified), Chinese (traditional), English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Swedish, Thai, Turkish | | Voltage | 100-240 VAC | | Power Consumption | Full Loading: 50 W
Maximum: 250 W | | Temperature | 32-104°F (0-40°C) | | Humidity | 5-95% | | Form Factor | 1 RU | | Dimensions | 1.8 x 17.6 x 19.9" (4.5 x 44.7 x 42.9 cm) | | Weight | 13.2 lb (6 kg) | | | | Package Weight | 25.3 lb | | Box Dimensions (LxWxH) | 27.4 x 25.3 x 7.4" |
