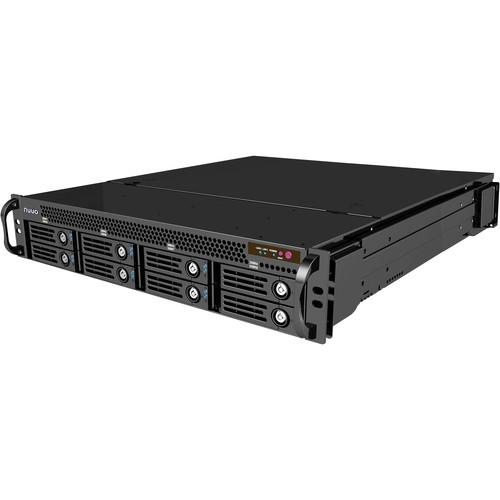

User Manual for NUUO CT-8000EX Crystal Series 64-Channel UHD NVR Click to enlarge the picture
Contents of the user manual for the NUUO CT-8000EX Crystal Series 64-Channel UHD
- Product category: Network Video Recorders (NVRs) NUUO
- Brand: NUUO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NUUO Network Video Recorders (NVRs)
|
User manual for the NUUO CT-8000EX Crystal Series 64-Channel UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NUUO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NUUO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NUUO product will considerably shorten its lifespan!
|
Product description Stream and record up to 64 video channels with the CT-8000EX Crystal Series NVR from NUUO, at resolutions up to 3840 x 2160 with throughputs up to 550 Mb/s (channel licenses available separately). Equipped with eight SATA III ports, each of which can accommodate an HDD up to 10TB, this NVR supports up to 80TB of internal storage (HDDs available separately). External storage options include PCs via internet connection, network servers, eSATA drives, and USB storage devices.
This Crystal Series NVR enables simultaneous live viewing or playback of up to 64 channels via its VGA port. Network bandwidth use is optimized while ensuring high-quality recording and playback using H.265, H.264, MJPEG-4, MPEG, or MxPEG compression. Bidirectional audio is supported, as is remote monitoring from Windows/Mac systems and iOS/Android devices. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. Server - Highlights
-
- Linux-based system
- Linux-based intelligent video analysis
- Supports over 1200 camera models from more than 60 brands, and RTSP video stream
- Supports throughput up to 250-550 Mb/s, depending on the number of volume groups
- Recording failover available with Ultimate-level licenses (available separately)
- Metadata server for 3rd-party integration (point of sale, access control, license plate recognition, and facial recognition)
- Diagnostic service for retrieving important logs from both server and client for troubleshooting
- Web-based Hardware Health Check Tool for OS storage device and hard drive disks
- Web-based Network Quality Evaluation Tool for checking connection quality between server and cameras
- Enterprise Management
-
- Built-in management server, recording server, recording failover server, and metadata server
- Centralized I/O and event respond systems
- NTP support (management server can be a time server to make all system times consistent)
- Cameras can be assigned to volume groups
- Individual Retention Condition (IRC) per device
- Video Device Utility auto setup and bulk import
- PTZ control priority
- Powerful authorization for device permission and function privilege
- System navigator for connecting multiple management servers
- Stability
-
- Supports RAID 0, 1, 5, and 10
- Open Platform
-
- ONVIF-compliant
- Camera multiple stream support
- H.265, H.264, MJPEG, MPEG4, and MxPEG codec support
- Additional Features
-
- Camera edge motion detection
- Supports continuous, scheduled, event-based, and I/O-based recording
- Schedule-based and input-triggered boosting record
- Schedule-based user management
- Scheduled backup video to FTP location
- Watermark for video verification
- Dual gigabit Ethernet ports
Client - Highlights
-
- Cross platform for Windows and Mac
- All-in-one NuClient for remote configuring and viewing
- Unlimited channels of live view and playback
- Unlimited channels of NuMatrix Video Wall available in Enterprise licenses (available separately)
- System Navigator for centralized management for multi-sites and managing unlimited devices and events from multiple management servers on NuClient
- Enterprise Management
-
- Centralized e-map
- Centralized I/O panel and event panel
- Public and private view profiles for each user
- View tour to loop through selected views
- Open Platform
-
- Export video with 3rd-party data overlay
- Generic fisheye dewarp technology for all fisheye cameras
- Panorama 360° PTZ for ImmerVision and fisheye cameras
- Multiple stream profiles
- Auto-switch stream profile
- Additional Features
-
- Supports mobile client for iPhone, iPad, and Android devices
- NUUO Image Fusion Technology enables stitching up to 10 cameras together
- Layout Wizard customized viewing layout
- Instant playback on live view, e-map, and event list
- Thumbnail in playback timeline
- Twin, full-featured software client and web client
- Supports digital and optical PTZ
- Supports preset and patrol
- Save video clips into AVI, ASF, and MOV
- Multi-metadata source on video display
- Intelligent search in playback
- Language switch capacity
In the Box NUUO CT-8000EX Crystal Series 64-Channel UHD NVR Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NUUO CT-8000EX Crystal Series 64-Channel UHD NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNUUO CT-8000-EX-US Specs | Video Channels Supported | 64 max | | RAM | 4 GB x 2 (dual-channel) | | Maximum Recording Throughput | 1 Volume Group: 250 Mb/s
2 Volume Groups: 400 Mb/s
3 Volume Groups: 550 Mb/s | | Live View | 16 local channels per view
View tour to 64 channels | | Recording Modes | Continuous record, trigger record by digital input, motion-triggered record, event-triggered record, boosting record, record by schedule, and manual trigger record on NuClient | | CPU Model | Intel Core i7 | | Operating System | Linux | | Drive Bays | 8 x SATA II HDD bays (each supports up to 10 TB) | | Maximum Internal Capacity | 80 TB (available separately) | | RAID | 0/1/5/10 | | I/O Interface | 2 x USB 2.0, for mouse, UPS
2 x USB 3.0
1 x eSATA, for DAS
1 x VGA | | LAN | 2 x RJ45 Gigabit ports | | Wireless Transmission Speed | 10/100/1000 Mb/s | | Audio | Two-way | | Mobile Support | iPhone, iPad, Android | | Client Operating System | Windows XP (32-bit), Windows 7 (32- & 64-bit), Windows 8.1 (32- & 64-bit), Windows 10 (64-bit), and Mac OS X (versions 10.9 & 10.10) | | Video Compression | H.265, H.264, MPEG-4, MJPEG, and MxPEG | | Languages Supported | Czech, Chinese (simplified), Chinese (traditional), English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Swedish, Thai, Turkish | | Voltage | 10-240 VAC | | Power Consumption | Full Load: 150 W
Maximum: 500 W | | Operating Temperature | 32-104°F (0-40°C) | | Operating Humidity | 5-95% | | Certification | CE, FCC & RoHS | | Form Factor | 2 RU | | Dimensions | 3.5 x 17.6 x 23.0" (8.8 x 44.7 x 58.3 cm) | | Weight | 25.1 lb (11.4 kg) |
