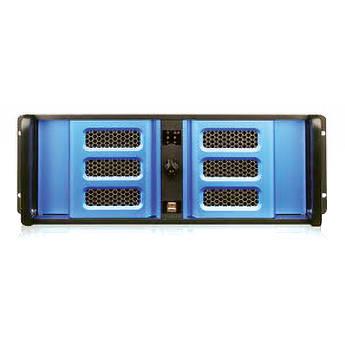

Product description Stream and record up to 96 video channels with the NH-4600 Series NVR from NUUO, at resolutions up to 30MP and at throughputs up to 300 Mb/s (channel licenses available separately). Equipped with eight hot-swap storage bays, each of which can accommodate an HDD up to 10TB, this NVR supports up to 80TB of internal storage (4TB preinstalled). External storage options include PCs via internet connection, network servers, eSATA drives, and USB storage devices.
This NH-4600 Series NVR enables simultaneous live viewing of all enabled channels, or simultaneous playback of up to eight channels, via its dual HDMI outputs at display resolutions up to 3840 x 2160. Network bandwidth use is optimized while ensuring high-quality recording and playback using H.265, H.264, MJPEG-4, MPEG, or MxPEG compression. Bidirectional audio is supported, as well as remote monitoring from iOS and Android devices. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. In the Box NUUO NH-4600 Series 96-Channel UHD NVR (4TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NUUO NH-4600 Series 96-Channel UHD NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNUUO NH-4600 Specs | Video Channels Supported | 96 max | | RAM | 8 GB DDR4 | | Max Resolution | Display Resolution: 4K 3840 x 2160
Recording Resolution: 30 MP | | Maximum Recording Throughput | 300 Mb/s | | Live View | Up to 128 channels on screen simultaneously | | Playback | Up to 8 channels on screen simultaneously | | CPU Model | Intel i7, 6 core, 12 thread processor | | Operating System | Windows 7 Professional | | Drive Bays | 8 x hot-swap storage bays | | Maximum Internal Capacity | 80 TB (4 TB preinstalled) | | Drive Type | Seagate / Western Digital 10 TB max | | I/O Interface | 5 x USB 2.0
5 x USB 3.0
1 x eSATA | | Video Output | 2 x HDMI
Nvidia video support
Removable 4K video card | | Export | DVD-RW and USB | | LAN | 2 x Gigabit network ports | | Capture Card | 3 x capture card slots
Supported Models: SCB-6000S, SCB-7000S, and SCB-8000 Series | | Audio | Two-way | | Mobile Support | iPhone, iPad, Android | | Video Compression | H.265, H.264, MPEG-4, MJPEG, and MxPEG | | Languages Supported | Albanian, Bulgarian, Chinese (simplified & traditional), Croatian, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil & Portugal), Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, and Turkish | | Voltage | 100-240 VAC | | Power Supply | 750 W 80 PLUS GOLD | | Operating Temperature | 32-104°F (0-40°C) | | Operating Humidity | 5-95% | | Form Factor | 4 RU | | Dimensions | 4.6 x 18.9 x 19.8" (11.7 x 48.2 x 50.2 cm) | | Weight | 56 lb (25.4 kg) with rails, without HDD | | | | Package Weight | 49.3 lb | | Box Dimensions (LxWxH) | 26.5 x 21.3 x 10.0" |
