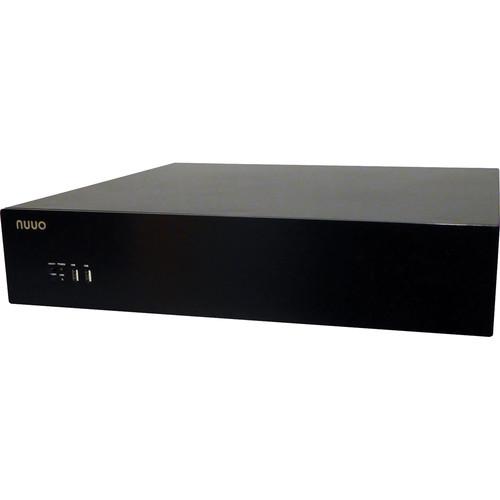

User Manual for NUUO NP-8320 Solo Plus Series 32-Channel 12MP NVR Click to enlarge the picture
Contents of the user manual for the NUUO NP-8320 Solo Plus Series 32-Channel
- Product category: Network Video Recorders (NVRs) NUUO
- Brand: NUUO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NUUO Network Video Recorders (NVRs)
|
User manual for the NUUO NP-8320 Solo Plus Series 32-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NUUO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NUUO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NUUO product will considerably shorten its lifespan!
|
Product description Stream and record from up to 32 video channels with the NP-8320 Solo Plus Series NVR from NUUO at resolutions up to 12MP with throughputs up to 200 Mb/s. Equipped with eight hot-swap storage bays, each of which can accommodate an HDD up to 6TB, this NVR supports up to 48TB of internal storage (32TB preinstalled). External storage options include PCs via internet connection, network servers, eSATA drives, and USB storage devices.
This NP-8320 Solo Plus Series NVR enables simultaneous live viewing of all 32 channels, or simultaneous playback of up to eight channels, via its VGA and HDMI outputs at display resolutions up to 1920 x 1080. Network bandwidth use is optimized while ensuring high-quality recording and playback using H.265, H.264, or MPEG compression. Bidirectional audio is supported, as well as remote monitoring from iOS and Android devices. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - 32 channel licenses embedded
- Supports over 65 camera brands, including Vivotek, Hikvision, and Axis
- HDMI video output and mouse/keyboard connections for standalone deployment
- Supports motion detection
In the Box NUUO NP-8320 Solo Plus Series 32-Channel 12MP NVR (32TB) USB Mouse Set of Rackmount Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NUUO NP-8320 Solo Plus Series 32-Channel 12MP NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNUUO NVRSolo Plus Specs | Video Channels Supported | 32 | | Max Resolution | Recording Resolution: 12 MP
Display Resolution: 1920 x 1080 | | Maximum Recording Throughput | 200 Mb/s | | Live View | Up to 32 channels simultaneously | | Playback | Up to 8 channels simultaneously | | Operating System | Linux | | Drive Bays | 8 x 3.5" SATA II HDD bays (each supports up to 6 TB) | | Maximum Internal Capacity | 48 TB (32 TB preinstalled) | | RAID | 0/1/5/10 | | I/O Interface | 2 x USB 2.0
1 x USB 3.0
1 x eSATA
1 x RCA audio input
1 x RCA audio output | | Video Output | HDMI & VGA | | LAN | 2 x Gigabit ports (RJ45) | | Wireless Transmission Speed | 10/100/1000 Mb/s | | Audio | Two-way | | Mobile Support | iPhone, iPad, Android | | Video Compression | H.265, H.264, and MJPEG | | Recording Modes | Emergency recording, continuous recording, record by schedule, event-triggered recording, and digital-input-triggered recording | | Audio & Video Recording | Synchronized | | Auto Backup | Supports automatic FTP backup | | Smart Search | General motion, missing objects, foreign objects, lose focus, and camera occlusion | | Languages Supported | English, Croatian, Czech, German, Finnish, French, Hebrew, Italian, Japanese, Korean, Polish, Portuguese, Portuguese (Brazilian), Russian, Chinese (simplified & traditional), Spanish, Swedish, Thai, and Turkish | | Voltage | 100-240 VAC
47-63 Hz | | Power Consumption | 35 W | | Operating Temperature | 32-122°F (0-50°C) | | Operating Humidity | 10-90% | | Form Factor | 2 RU | | Dimensions | 3.5 x 17.25 x 17.0" (8.89 x 43.81 x 43.18 cm) | | Weight | 16.3 lb (7.39 kg), without HDDs |
