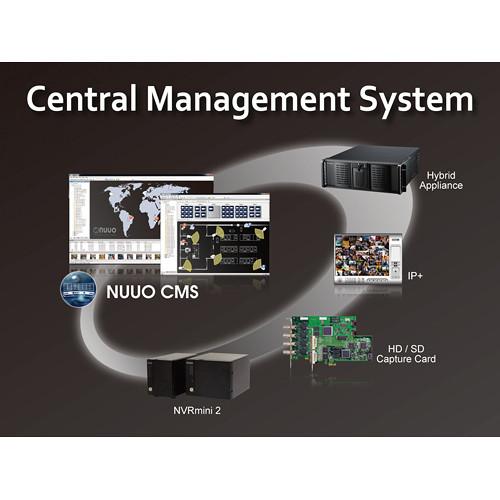

User Manual for NUUO NVR-Based Central Management System Click to enlarge the picture
Contents of the user manual for the NUUO NVR-Based Central Management System
- Product category: Recording Software NUUO
- Brand: NUUO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NUUO Recording Software
|
User manual for the NUUO NVR-Based Central Management System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NUUO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NUUO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NUUO product will considerably shorten its lifespan!
|
Product description The NUUO NVR-based Central Management System (NCS) is designed for large-scale and high level enterprise projects. NCS can manage all of NUUO Mainconsole family product lines including NDVR Hybrid / NVR/ DVR, Hybrid appliance, NVRsolo and NVRmini 2. This NCS supports unlimited cameras, I/O devices, POS, LPR, access control, servers and users. Its stable architecture protects alarm data.The NCS client-server architecture offers support to unlimited clients and multi-monitors, where the clients are supported with a popup live window and instant playback, remote playback, an embedded remote playback application and smart search in playback for special events.The controls and operation of the NCS are clear cut and map centric. All CMS functions are accessible directly from the E-map. The NCS features a tree-structured map layout supporting unlimited map layers. It supports intuitive GUI (Graphical User Interface) indicators of cameras, I/O devices, POS, LPR, access control and server locations.The NCS has a powerful real-time alarm management system supporting up to 45 alarm types, 6 video analytic events, IVS alarm events, alarm statuses, priorities and independent alarm coverage, data mining tools, and alarm notes.With the NCS, you can assign different levels of privileges to manage access on servers, cameras, alarms, logs according to each user account and user group. Its built-in remote desktop configuration function can remotely configure any NUUO NVR/DVR/NDVR.With the display matrix video wall, the NUUO NCS can control unlimited video matrices supporting up to 64 channels of video display per monitor, and enable users to get videos and manage alarms efficiently and instantly. The alarm guide provides operators the information to know how to immediately respond to different alarms. - Supports advanced, embedded video analytics
NCS Alarm Server - Centralized management station supports unlimited number of NUUO Mainconsole family recording servers (NVR/DVR/NDVR Hybrid, Hybrid appliance, NVRsolo, and NVRmini2)
- NCS client features popup live window and instant playback, remote playback, embedded remote playback application and smart search in playback for special events
- Uses SQL server 2005 express to store all alarm logs.
- Real-time alarm management supports up to 45 alarm types, 6 video analytic events, alarm priorities and independent alarm coverage, and data mining tool
- Assigns different levels of privileges to access the server, camera, I/O device, POS, alarm, and log to each user account and user group
- Synchronized with Windows Active Directory server to manage user privilege and control of camera action
- Support third party software, including license plate recognition, access control, through the Mainconsole
- Users can manage metadata by recording real time information in databases which can describe alarms that link to videos and audios
- Provides smart search tool to retrieve information and recorded video
- Central server is designed to manage servers across different time zones
- CUT (Coordinated Universal Time) and can translate local time at the recording server site into the time zone of the central management station
- Offers easy-to-use online activation via the Internet to register and validate licenses
NCS Client - Supports multi-monitor scenarios: Monitor 1- E-Map / Navigation panel; Monitor 2 - Alarm panel, event list, remote playback; Monitor 3-N - Live video display matrix
- All NCS functions are accessible directly from the E-map
- Control device function and operate view by keyboard and joystick via NCS ClientSQL Server, NCS Server / Client / Matrix restores connection when disconnected
- Automatically synchronize all of the IP cameras, I/O device, POS, LPR and access control systems in the servers
- The log viewer tool enables users to search and export a list of system events
- Enables you to listen and record audio from a camera's microphone
E-Map - Tree structured hierarchical map layout supports unlimited map layers
- Custom map indicators for recording servers, cameras, I/O devices, POS, LPR and access control systems, The operator can place them anywhere on the E-map or import self-designed indicator icons
- Real-time alarm management supports up to 45 alarm types, 6 video analytic events, alarm priorities and independent alarm coverage, and data mining tools
- Security operator can open live video windows, instant playback windows, do remote backup, query alarms, trigger digital output devices, check system status, search for other system transaction data
- Users can edit maps and servers easily, as well as make use of the navigation tool to zoom in and out of the map view, and drag and drop the cameras
- Import any image in BMP, GIF, JPEG, PNG, or TIFF formats
Alarm Management - Assign alarm priorities (critical, high, normal, low) to each alarm to increase the efficiency in response and data mining
- Operators can configure each alarm to be active at specific times or time intervals
- Attach an alarm management guide to each of the alarms so the operator knows how to respond to different alarms
- The NCS client can play sounds, popup live video windows, activate alarm matrices, and send email alarms and SMS messages at the moment of an event trigger
- Clients can print out a detailed alarm report with snapshots, alarm guides and an included timestamp
- Users can quickly search alarm history by alarm name, operator name, alarm status, alarm priority, time interval, source device, alarm type and keyword search of alarm note
- Users can export alarm history to Excel tables
- Alarm information can be scheduled for automatic or manual backup
- Alarm related video can be automatically recorded on client storage for later reference
NCS Video Matrix Wall - NCS Matrix can stream and display live video from any NUUO Mainconsole family recording server (NVR/DVR/NDVR Hybrid, Hybrid appliance, NVRsolo and NVRmini 2) as commanded by the NCS client
- Each matrix computer can display up to 64 channels of live video per monitor and supports multiple monitor display
- Supports 9 display layouts for standard screens (1/4/9/12+1/16/25/36/49/64) and 5 for 16:9 or 16:10 wide screens (1+3/2+4/1+8/12/48)
- Automatically display views, cameras and alarm videos at a specified interval
- PTZ control panel on the NCS client can be used to pan, tile and zoom the cameras displaying on NCS matrix with user privilege hierarchy
- Matrix can popup alarmed cameras instantly upon an unusual event on any matrix monitor specified
- Each user / user group can be assigned to a different matrix view groups with specific camera viewing privileges
- Live display at different frame rate and resolution
- 4 unique viewing modes of ImmerVision lens supported under Matrix (lens sold separately)
Extension - Build-in remote desktop tool that can be used to configure any NUUO Mainconsole family recording server, including NVR/DVR/NDVR Hybrid, Hybrid appliance, NVRsolo, and NVRmini 2 directly from the central management station
- Supports remote playback of 16 channels recording from any one of NUUO Mainconsole family recording server including (NVR/DVR/NDVR Hybrid, Hybrid appliance, NVRsolo, and NVRmini 2)
- Allows playback in full screen, single channel, 4, 9 and 16 channels simultaneously
- Enables you to take a snapshot of the recording in JPEG format or export a section of the video in AVI and ASF format with digital watermark
- Enables you to search for 5 different special events (general motion, missing object, foreign object, camera occlusion and signal lost) in recorded files with date, time, and log file 1
Please Note: Users should access NUUO's MainConsole to obtain recorded videos if camera sequence of MainConsole is changed. NCS Client can't get recorded video from MainConsole directly if camera sequence is changed. Users should synchronize or reload configuration of recording servers (MainConsole or NAS NVRmini) after configuration of recording server is changed. close In the Box NUUO NVR-Based Central Management System (NCS) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NUUO NVR-Based Central Management System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNUUO NCS-CN-LPR Specs | | | Client/Server Architecture | 1 CMS server can be connected to several CMS clients | | Supported Devices | Supports all NUUO based site, as well as all I/O devices, POS, LPR and access control systems and IP camera brands supported by Main Console v3.5.0 and NAS NVRmini v2.6 | | Solution Type | Unlimited access of cameras and DVR/NVR/NVR mini sites | | System | Unlimited matrix consoles connectable through network | | Live Viewing | Up to 64 concurrent camera viewing for each matrix console | | Alarm Management | Acknowledges or manages alarm log in the most efficient way | | Connection | LPR | | Licenses | 1 license per lane | | | | Monitor | Default Monitor#1:Navigation panel / map section | | Monitor A | Default Monitor#2:Live matrix system | | Monitor B | Default Monitor#3:Alarm list / message list / remote playback | | | | Alarm Function | SQL Server 2005 Express as database to store all alarms | | Server Requirements | Stores the site map data by hierarchical structures, directly connects to surveillance server to get alarm notifications, provides TCP service for CMS client access through network, registers different time zones into UTC format | | Notification | Send E-mail / SMS message | | | | Mapview | Map Tree Hierarchy: Unlimited level of display site map | | Image Format | BMP, GIF, JPEG, PNG, and TIFF | | Surveillance Software Functions | New / edit / delete / disable and enable | | Camera | New / edit / delete / disable and enable | | Tools | Use to use zoom in, zoom out and drag operation | | Indicators | Indicators for maps, servers, cameras, I/O devices , POS, LPR and access control systems, indicator icons support image format with alpha channel (TIFF), display camera coverage, easy to find device on map and matrix view | | Status Indicator | Shows corresponding icon nearby device icons to automatically notify users of the events | | Operation Modes | Open last alarm, Open live video window, Open instant playback window, Backup Recorded Video,View Server Status Report, Search , POS, LPR and access control systems transaction data | | Live | Live popup window to use audio/talk functions and show live video with PTZ control panel, sets stream profile to change video quality, Snapshot and transaction overlay | | Playback | Remote playback popup window to replay recorded video and audio, export to AVI/ASF file and snapshot with digital watermark | | | | Alarm Type | Video signal abnormal, digital input trigger (normal / emergency), 3rd party transaction alarm trigger, network abnormal, DVR / NVR abnormal, motion / missing / foreign / focus / blocked, low disk space, CPU temperature high / fan speed low | | Action Type | Instant notifications on map and event list, go to specific map layer, play sounds, automatically show live video on popup window, automatically show live video on live matrix system, send SMS, send Email | | Viewing Options | Filters tools to survey existing alarm history | | Alarm Notification | Shows / Prints a specific alarm with image preview | | Alarm Log | Accesses required alarm logs in the most efficient way | | | | Live Viewing | Up to 64 concurrent camera viewing | | Grid | Standard: 1, 4, 9, 12+1, 16, 25, 36, 49, 64, Wide Screen: 1+3, 2+4, 3+8, 12, 48 | | Video | Flexible auto scan mechanism and full screen viewing, view tour, camera tour, grid tour, alarm tour in simple and salvo mode | | Live Video Input | Shows the live video associated with alarms | | PTZ Functionalities | PTZ panel to manipulate cameras on the matrix system | | Keyboard Support | Controls PTZ camera by Keyboard and Joystick via NCS Client | | | | Remote Playback | Up to 16 concurrent camera viewing | | Grid | 1, 4, 9, 16 | | Export | Saves as image and video, as well as printing | | Smart Search | Fast search based on the specific event, include general motion, missing object, foreign object, lose focus and camera occlusion | | | | Authentication | UserGroup Authority: Alarm management, view alarm image, view live and recorded videos, PTZ control with user privilege hierarchy, control digital output, remote desktop, view and search, POS, LPR and access control systems, transaction, audio / talk, access devices | | User Authority | User/password, phone number, email / phone number, usergroup , coverage, matrix view groups | | Remote Management | CMS is capable of controlling NUUO servers through the remote desktop protocol | | | | Device | NVR:SW v3.5.0: SCB-IP+ series | | Device | DVR:SW v3.5.0: SCB-G3-1000 series, SCB-G3-3000 series, SCB-6000 series, SCB-7000 series, SCB-7100 series | | Device | NVR-mini:FW v2.6.3: NV-2020, NV-2040, NV-4080S, NV-4160S | | Device | NVR-mini2:FW v1.0: NE-2020, NE-2040 | | | | Camera Support | IP Camera Brands Supported: ACTi, Arecont ,ARM ,Atlantis ,Axis, Basler ,Bosch ,Brickcom ,Camtron ,Cisco, CNB, CryptoTelecom, Dallmeier, DiGiMERGE ,D-Link, DYNACOLOR ,Eneo, ETROVISION, EverFocus, Eyeview, Fine, HIKVision, Hitron, Honeywell, iCANTEK, IQinVision, JVC, LevelOne, LILIN,Linksys, LOREX, Lumenera, MOBOTIX, Moxa, NetworkCamera, Onvif, Panasonic, Pelco, Pixord, Planet, SAE, Samsung, Santec, Sanyo, Seorim, Sony, StarDot, Toshiba, Truen, Videosec | | Format | H.264, MPEG4, MJPEG, MxPEG | | Language Support | Chinese (Simplified), Chinese (Traditional), Danish, English , Farsi , Finnish , French, Hebrew, Hungarian, Italian, Japanese, Korean, Portuguese (Brazil), Portuguese (Portugal), Russian, Serbian, Spanish, Thai |
