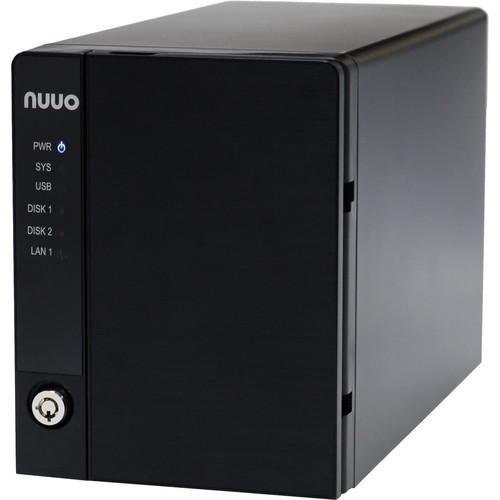

User Manual for NUUO NVRmini2 NE-2040 NVR and Server Click to enlarge the picture
Contents of the user manual for the NUUO NVRmini2 NE-2040 NVR and Server
- Product category: Network Video Recorders (NVRs) NUUO
- Brand: NUUO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NUUO Network Video Recorders (NVRs)
|
User manual for the NUUO NVRmini2 NE-2040 NVR and Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NUUO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NUUO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NUUO product will considerably shorten its lifespan!
|
Product description The NUUO NVRmini2 NE-2040 NVR and Server (4-Channel, 2 Drive Bays, US Power Cord) is a professional surveillance recording system designed to stream and record live video/audio from 4 IP cameras. Joystick support allows you to control a camera's panomorph (360°) and PTZ functions, thereby reducing the number of IP cameras required for your setup. The unit also supports dual streaming of MPEG4, MJPEG, and H.264 video compression formats.
The NVRmini Recorder and Server features an intelligent playback system with 5 video analytics searches that include general motion, foreign object, missing object, loss of focus, and camera occlusion. With support for RAID 0 and 1, the recorder ensures the highest level of data security at the HDD level. Users can connect to the NVRmini2 via Web Viewer (Internet Explorer) and view up to 16 channnels of live video. In addition, the Remote Live Viewer allows viewing of up to 128 channels of live video on multiple monitors from different locations. The streamed footage can be accessed on your iPhone, iPad, Android, Windows Phone 7, and BlackBerry mobile phones via the Internet. All key server functions are available on 1 screen on the GUI menu, making it easy for the users to setup recording schedules (daily or weekly) and configure key server settings. E-mapping, another handy feature in this NVR, offers a quick overview of the surveillance area, indicating the location of the CCTV cameras or the site where an event occurred. The watermark option helps protect the recorded data from being copied or tampered with.
Also included in the NVRmini 2 are video enhancement tools for fine-tuning the image visibility, sharpness, brightness, contrast, and grayscale. Video conversion is also possible to AVI or ASF file format. You can also take snapshots from the recordings in BMP or JPEG format to print or save critical images for future use. Note: 4 camera licenses are included with this NVRmini2 (Supports a maximum of 4 licenses). Surveillance - Supports 49 brands of IP cameras, with remote viewing and live video recording
- Records in MPEG4, M-JPEG, MxPEG, and H.264 formats (depending on the camera model) at a maximum rate of 120 fps
- Embedded Linux for protection from viruses and system crash
- Dual streaming for efficient bandwidth management
- Synchronization of video and audio recording
- Works with NUUO CMS (Central Management System) for monitoring large scale projects
System, Setting, Management and Integration - Server-client architecture for routing all video data via NVRmini2 to remote clients to balance the camera load and achieve good recording quality
- Allows for automatic camera search in the network 1
Please Note: Camera should support UPnP protocol or camera search tools of ACTi, Arecont, D-Link, and Sony in v1.0.0. close - Set recording schedules daily or weekly via GUI recording scheduler
- Configure key server functions via the GUI
- Supports 4 camera events like motion detection (camera should support this), connection lost and camera input; 1 input event from remote I/O box; 3 system events and daily system report via e-mail
- 3 instant alarms for output, e-mail and NUUO CMS alarm system
- Built-in RAID 0, 1 to prevent data loss
- Records live transactions received via NUUO POX box or Ethernet (TCP/IP client)
- Incorporates POS text overlay on live video and recordings
- Transactions can be searched in the NVRmini2 database
- Seamless integration of camera I/O and NUUO I/O box to start recording on input trigger or to trigger output as an event occurs
- 4 different user groups (admin, power user, user, and guest) for logging into the NAS server via Web Viewer
- Users can connect to Recording Server via Web Viewer (Internet Explorer) and monitor 16 channe;s of live video
- Special privilege for each group in system configuration, live view camera, and playback camera
- Accurate synchronization of recording time (weekly/monthly) via NTP protocol
- Easy camera control with joystick support for PTZ cameras
- For 360° surveillance with support for panomorph lens-based PTZ cameras
- Allows you to keep a track of system operations via hardware log, camera status, and user access tracking via NVR log, special-event tracking via NVR event log, video export and backup tracking via Export/Backup log
- Quick start and troubleshooting assistance via user-friendly HELP page
Remote Operation - Remote Playback application for playback of 16 channels of recording from the NUUO NVRmini2
- Remote Live Viewer application for monitoring NVRmini2 at multiple locations simultaneously (PTZ control, E-map and I/O panel)
- Remote Live Viewer can be used to connect and monitor up to 128 cameras at multiple locations
- Remote Backup application to backup recording video and POS transaction remotely from NVRmini 2
- For access and display of live footage
- Supports NUUO's mobile client for iPhone, iPad, Android, windows Phone 7, and BlackBerry for remote surveillance
- Multi-view allows simultaneous viewing of the same video on multiple channels for detailed surveillance
- E-mapping for complete coverage of the surveillance area, indicating the location of the CCTV cameras
- Multiple camera streams with lower bitrate can be viewed in real-time without compromising on the quality
Playback, Search, Export, and Secure Data - Video enhancement tools for fine-tuning the image visibility, sharpness, brightness, contrast, and grayscale
- Intelligent playback system with 5 video analytics searches: general motion, foreign object, missing object, loss focus, and camera occlusion
- Convert videos to AVI or ASF file format and take snapshots from recording in BMP or JPEG format for future reference
- Backup videos in DAT format
- Alert notification (camera and system event) via sound digital output, e-mail, and NUUO CMS alert
- Automatic backup of footage of a particular date to the designated FTP server
- Manual deletion of recorded footage
- Watermark option for protecting the data from being copied and is also useful for tamper detection
In the Box NUUO NVRmini2 NE-2040 NVR and Server (4-Channel, 2 Drive Bays, US Power Cord) Quick Start Guide Screws for Disk Drives Key US Power Cord 19 V DC Power Transformer CD with Install Wizard, Backup, Live View, Playback, Verification Tool and Offline Tool Application, User Manual, and Quick Start Guide 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NUUO NVRmini2 NE-2040 NVR and Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNUUO NE-2040-US Specs Number of Cameras | 4 | Playback Channel | 4 | Number of Drives | 2 x SATA II | Drive Bays | 2 For US only. | Storage | Maximum Storage of Compatible HDD: 3 TB | RAID Level | RAID 0, 1 | I/O Interface | 2 x USB 2.0 (for UPS) | LAN Port | 1 x Gigabit RJ-45 Ethernet port | Compression Format | MPEG4, M-JPEG, H264, MxPEG (depends on IP camera) | Recording | Camera dependent Total bitrate: 40 Mbps (around 120 fps at 1.3 M) | CPU | Remote PC CPU: Intel Core 2 Duo, 2.6 GHz | RAM | Remote PC RAM: 1 GB | User Interface | HTTP web browser - Internet Explorer 7 and later/ NUUO client application program | Recording type | Continuous record, record by schedule, manual record, event trigger record, digital input trigger record | Remote Live View Control | Live view, preset/ go, PTZ, remote I/O, snapshot, multi-view, digital PTZ, advanced E-Map, bandwidth monitoring | Audio & Video Recording | Audio & video recording in synchronization | POS Integration | Live view, record, playback, and search for every transaction | Auto Backup | Automatically backup the recorded video of the previous date to FTP | Smart Search | General motion, missing object, foreign object, lose focus, camera occlusion | OS | Remote Client OS Platform: Windows XP (32-bit) / Vista (32-bit) / 7 (32 and 64-bit) | Remote Live View Connections | Live view maximum 64 connections at the same time | Mobile Client OS Platform | iPhone, iPad, Android, BlackBerry, Windows Phone 7 | Camera Support | IP Camera Brand Support: ACTi, ArecontVision,ARM, Axis, Basler, Brickcom, Bosch, Cisco, CNB, D-Link, Dynacolor, Eneo, Fine, HIKVision, Honeywell, IQinVision, LevelOne, Lumenera, Linksys, Mobotix, Onvif, Panasonic, PiXORD, Samsung, Santec, SANYO, Sony, StarDot, Toshiba, Truen, Videosec, VIVOTEK, Zavio | Voltage | 100-240 V | Temperature | 0 to 104°F (0 to 40°C) | Humidity | Operating : 10 to 85% | Dimensions | 5.5 x 4.32 x 8.62" (140 x 109.8 x 219 mm) | Weight | 4.67 lb (2.12 kg) | | Package Weight | 6.9 lb | Box Dimensions (LxWxH) | 10.9 x 9.5 x 8.3" |
