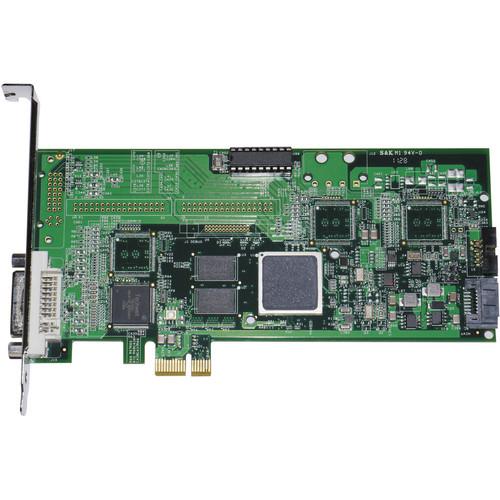

User Manual for NUUO SCB7004S Hardware Capture Card Click to enlarge the picture
Contents of the user manual for the NUUO SCB7004S Hardware Capture Card
- Product category: Digital Video Recorders (DVRs) NUUO
- Brand: NUUO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NUUO Digital Video Recorders (DVRs)
|
User manual for the NUUO SCB7004S Hardware Capture Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NUUO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NUUO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NUUO product will considerably shorten its lifespan!
|
Product description The NUUO SCB7004S Hardware Capture Card is a PC-based surveillance recording system designed to manage the recording of 4 analog IP cameras. It can record videos at resolutions up to 704 x 480 (NTSC) and 704 x 576 (PAL) in D1 and CIF. H.264 hardware compression enables this card to record quality videos while maximizing storage space. The hardware watchdog function automatically triggers a system reset to bring the system back to normal in event of a fault or freeze. - Records video from 4 analog IP cameras
- Works with Windows-based PCs
- H.264 hardware compression for recording quality videos while maximizing storage space
- Recording resolutions up to D1 ((704 x 480 (NTSC) and 704 x 576 (PAL)) at 120/100 fps (NTSC/PAL)
- Recording resolutions up to CIF ((704 x 480 (NTSC) and 704 x 576 (PAL)) at 120/100 fps (NTSC/PAL)
- Display frame rate of 120/100 fps (NTSC/PAL)
- PCI-E x1 interface and audio-in support
- Hardware watchdog brings the system back to normal operation via system reset in case of a fault or freeze
In the Box NUUO SCB7004S Hardware Capture Card 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NUUO SCB7004S Hardware Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNUUO SCB-7000 Specs | Video Input | 4 cameras | | Audio Input | 4 channels | | Maximum Cards Supported | 4 | | Maximum Analog Input per System | 64 | | Display Rate | 120/100 fps | | Recording Rate | D1: 120/100 fps
CIF: 120/100 fps | | Video Resolution | NTSC : 704 x 480, 352 x 240, 176 x 120
PAL : 704 x 576, 352 x 288, 176 x 144 | | Compression Format | Hardware compression H.264 | | Interface | PCI-Ex1 | | Maximum I/O Card | 4 | | Available I/O Card | SCB-C24/C26/C28, SCB-S-IO | | Hardware Watchdog | Yes | | OS Supported | Windows XP (32-bit) / Windows 7 (32 and 64-bit) / Windows 2008 R2 (64-bit) | | CPU | Intel Core 2 Duo E5300 | | RAM | 2 GB
Note: Above RAM amount is recommended based on one DVR card installation. For system with multiple DVR cards, stacked 1 GB RAM for systems under 16 channels, 3 GB RAM for system under 32 channels, and 4 GB RAM (64-bit OS) for system with 32 channels or above are recommended. | | HDD | 250 GB | | Motherboard | Intel P55, H55, X58, P45, P43 chip, MB vendor ASUS, Gigabyte, or MSI with Intel Chipset recommended | | Display | ATI Radeon 4350, nVIDIA GeForce GF-9600 or above (ATI Driver V11.5 recommended, ATI Driver V10 not supported) | | Dimensions | 7.4 x 4.7" (188 x 121 mm) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 10.0 x 7.4 x 2.6" |
