NUUO SCB7008S Hardware Capture Card

Search your instruction manual in PDF to download

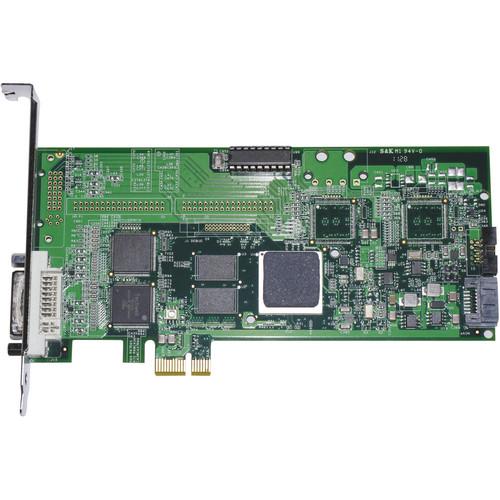

User Manual for NUUO SCB7008S Hardware Capture Card

Click to enlarge the picture
NUUO SCB7008S Hardware Capture Card Contents of the user manual for the NUUO SCB7008S Hardware Capture Card
  • Product category: Digital Video Recorders (DVRs) NUUO
  • Brand: NUUO
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for NUUO Digital Video Recorders (DVRs)

User manual for the NUUO SCB7008S Hardware Capture Card contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any NUUO product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official NUUO user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a NUUO product will considerably shorten its lifespan!



Product description

The NUUO SCB7008S Hardware Capture Card is a PC-based surveillance recording system designed to manage the recording of 8 analog IP cameras. It can record videos at resolutions up to 704 x 480 (NTSC) and 704 x 576 (PAL) in D1 and CIF. H.264 hardware compression enables this card to record quality videos while maximizing storage space. The hardware watchdog function automatically triggers a system reset to bring the system back to normal in event of a fault or freeze.
  • Records video from 8 analog IP cameras
  • Works with Windows-based PCs
  • H.264 hardware compression for recording quality videos while maximizing storage space
  • Recording resolutions up to D1 ((704 x 480 (NTSC) and 704 x 576 (PAL)) at 240/200 fps (NTSC/PAL)
  • Recording resolutions up to CIF ((704 x 480 (NTSC) and 704 x 576 (PAL)) at 240/200 fps (NTSC/PAL)
  • Display frame rate of 240/200 fps (NTSC/PAL)
  • PCI-E x1 interface and audio-in support
  • Hardware watchdog brings the system back to normal operation via system reset in case of a fault or freeze
In the Box NUUO SCB7008S Hardware Capture Card
  • 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the NUUO SCB7008S Hardware Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    NUUO SCB-7000 Specs

    Video Input 8 cameras
    Audio Input 8 channels
    Maximum Cards Supported 4
    Maximum Analog Input per System 64
    Display Rate 240/200 fps
    Recording Rate D1: 240/200 fps
    CIF: 240/200 fps
    Video Resolution NTSC : 704 x 480, 352 x 240, 176 x 120
    PAL : 704 x 576, 352 x 288, 176 x 144
    Compression Format Hardware compression H.264
    Interface PCI-Ex1
    Maximum I/O Card 4
    Available I/O Card SCB-C24/C26/C28, SCB-S-IO
    Hardware Watchdog Yes
    OS Supported Windows XP (32-bit) / Windows 7 (32 and 64-bit) / Windows 2008 R2 (64-bit)
    CPU Intel Core 2 Duo E5300
    RAM 2 GB
    Note: Above RAM amount is recommended based on one DVR card installation. For system with multiple DVR cards, stacked 1 GB RAM for systems under 16 channels, 3 GB RAM for system under 32 channels, and 4 GB RAM (64-bit OS) for system with 32 channels or above are recommended.
    HDD 250 GB
    Motherboard Intel P55, H55, X58, P45, P43 chip, MB vendor ASUS, Gigabyte, or MSI with Intel Chipset recommended
    Display ATI Radeon 4350, nVIDIA GeForce GF-9600 or above (ATI Driver V11.5 recommended, ATI Driver V10 not supported)
    Dimensions 7.4 x 4.7" (188 x 121 mm)
    Package Weight 1.05 lb
    Box Dimensions (LxWxH) 10.0 x 7.3 x 2.4"
