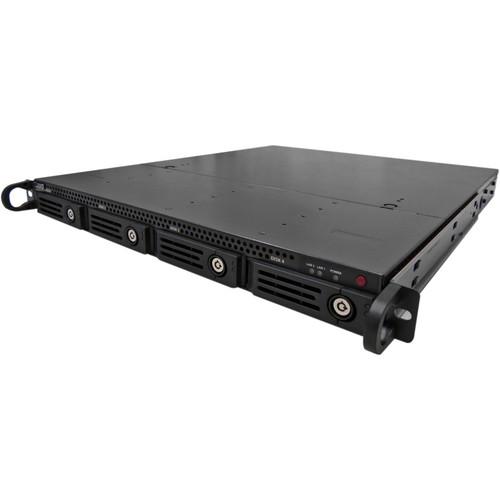

User Manual for NUUO TP-4160R Titan Pro 16-Channel 1U Rack-Mountable H.264 250 Mb s 4-Bay NVR Click to enlarge the picture
Contents of the user manual for the NUUO TP-4160R Titan Pro 16-Channel 1U
- Product category: Network Video Recorders (NVRs) NUUO
- Brand: NUUO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NUUO Network Video Recorders (NVRs)
|
User manual for the NUUO TP-4160R Titan Pro 16-Channel 1U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NUUO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NUUO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NUUO product will considerably shorten its lifespan!
|
Product description The TP-4160R Titan Pro 16-Channel 1U Rack-Mountable H.264 250 Mb/s 4-Bay NVR from NUUO is a Linux-embedded recording solution that supports H.264 encoding for up to 64 channels with a throughput of up to 250Mb/s.In addition, the NVR is equipped with command chain technology, which can synchronize user accounts and critical events across 100 servers, 400-channel live view, and 100-channel playback simultaneously. The recorder supports over 2000 camera models from more than 100 brands, and RTSP video streaming.Thanks to NUUO Image Fusion Technology, you can manipulate camera views by changing viewing angles and image size, making viewing easier in both live view and playback mode. Moreover, you can stitch multiple cameras together to form a unified single view from up to 10 different cameras.The built-in File Ring recording engine handles high-resolution megapixel recordings by changing the way hard drives store and retrieve video data. It can process a large amount of data throughput, boosting the recording performance of the recorder to 64-channel 5MP cameras (H.264, 15 fps, and moderate traffic). Note: Maximum 64 channels supported through upgrade, to be purchased separately. Server - System Navigator: Centralized management for multi-sites (up to 32 sites) on unified NuClient
- Diagnostic service: Retrieve important logs from server and client for troubleshooting
- Records up to 64 megapixel cameras per recording server
- High throughput: Supports up to 64 5MP cameras, 250Mb/s
- 3rd-party integration - Point of sale, access control, and license plate recognition
- Supports over 2000 camera models from more than 100 brands, and RTSP video streaming
Enterprise Management - Centralized I/O and event response systems
- Volume grouping to distribute cameras to assigned volumes
- Individual Retention Condition (IRC) per device
- Powerful authorization for device permission and function privilege
Stability - Supports RAID 0,1, 5, and 10
- Supports hardware watchdog and software watchdog
Open Platform - Camera multiple-stream support
- Multiple codec support: H.264, MJPEG, MPEG4 and MxPEG
Benefits - Stream up to 256-channel live viewing connections per server to multiple clients simultaneously
- Camera edge motion detection
- Support continuous, scheduled, event-based, and I/O-based recording
- Schedule-based and input-triggered boosting record
- Schedule-based user management
- Scheduled backup video to FTP location
- Watermark for video verification
- Dual gigabit Ethernet ports
Client - Cross platform for Windows and Mac
- All-in-one NuClient for remote configuring and viewing
- 10x10 Liveview and playback capacity
Enterprise Management - Centralized I/O panel and event panel
- Public and private view/view profile for each user
- View tour to loop through selected views
Open Platform - Export video with 3rd-party data overlay
- Generic fisheye dewarp technology for all fisheye cameras
- Panorama 360° PTZ ─ Immervision and fisheye camera
- Support multiple stream profiles
- Auto-switch stream profile
Benefits - Support mobile client for iPhone / iPad / Android
- NUUO Image Fusion Technology ─ stitch up to 10 cameras together
- Layout Wizard - customized layout for viewing
- Instant playback on live view, e-map and event list
- Twin clients to support identical, full featured software client and web client
- Support digital and optical PTZ
- Support preset and patrol
- Save video clips into AVI, ASF and MOV
- Intelligent Search in playback
External Support - External storage through 3rd-party DAS, iSCSI
- Support 3rd-party point of sale, access control and license plate recognition
- Support up to 256 NUUO I/O boxes per server (A08)
- Support APC Uninterrupted Power Supply (Smart-UPS 750 VA / APC Back-UPS 500 ES / APC Smart UPS 1500 / APC Smart UPS 3000
In the Box NUUO TP-4160R Titan Pro 16-Channel 1U Rack-Mountable H.264 250 Mb/s 4-Bay NVR Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NUUO TP-4160R Titan Pro 16-Channel 1U Rack-Mountable H.264 250 Mb s 4-Bay NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNUUO Titan Pro Specs | | | CPU | Intel Core i5 | | Licenses | 64 through upgrade
16 included in server | | Server Operating System | Embedded Linux | | Video Compression | H.264, MPEG4, MJPEG | | Recording Performance | 250 Mb/s | | HDD Tray | 4x SATA II removable | | HDD Support | 6 TB per drive (maximum 4 drives) | | RAID | 0, 1, 5, 10 | | External Storage | DAS, iSCSI | | External Ports | 4 x USB 2.0, 1x eSATA (for DAS) | | Ethernet | 2x Gigabit ports, RJ45 | | Transmission Speed | 10/100/1000 Mb/s | | Supported Languages | Chinese (Simplified), Chinese (Traditional), Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Serbian, Spanish, Slovenian, Swedish, Thai, Turkish | | Voltage | 100 to 240 VAC | | Power Consumption | Full loading: 50 W, Max: 250 W | | Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 5 to 95% | | Dimensions | 2 x 18 x 17" (5 x 45 x 43 cm) | | Weight | 13.2 lb (6.0 kg) without HDD | | | | OS | Windows XP (32-bit) / Windows 7 (32 and 64-bit) / Mac OS X v10.7, 10.8, 10.9, Windows 8 (32/64-bit), Windows 8.1 (32/64-bit) | | CPU | Intel Core 2 Duo, 2.6 GHz | | RAM | 2 GB | | Transmission Speed | 10/100/1000 Mb/s (RJ45) | | Display Card | NVIDIA or ATI with 1GB memory (OpenGL 2.0 and later) | | Web Browser | Internet Explorer 8, 9, 10, 11
Firefox 23 and above (Windows) | | Viewer | iPad, iPhone, Android |
