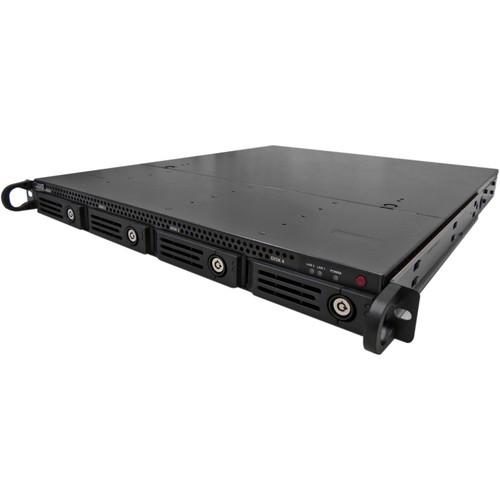

User Manual for NUUO TP-4161R Titan Pro Series 64-Channel 30MP NVR Click to enlarge the picture
Contents of the user manual for the NUUO TP-4161R Titan Pro Series 64-Channel
- Product category: Network Video Recorders (NVRs) NUUO
- Brand: NUUO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NUUO Network Video Recorders (NVRs)
|
User manual for the NUUO TP-4161R Titan Pro Series 64-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NUUO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NUUO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NUUO product will considerably shorten its lifespan!
|
Product description Stream and record from up to 16 video channels with the TP-4161R Titan Pro Series 64-Channel 30MP NVR from NUUO at resolutions up to 30MP with throughputs up to 200 Mb/s. Equipped with four hot-swap storage bays, each of which can accommodate an HDD up to 10TB, this NVR supports up to 40TB of total storage (16TB preinstalled). External storage options include PCs via internet connection, network servers, eSATA drives, and USB storage devices.
The TP-4161R Titan Pro Series NVR enables simultaneous live viewing of all enabled channels, or simultaneous playback of up to eight channels, via its VGA and HDMI outputs. Network bandwidth use is optimized while ensuring high-quality recording and playback using H.265, H.264, MPEG-4, MJPEG, or MxPEG compression. Bidirectional audio is supported, as is remote monitoring from iOS and Android devices. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - 16 channel licenses embedded (supports up to 64, available separately)
- Advanced analytics, extended storage, and metadata
- NuClient unified software
- Customizable 360° camera dewarping & calibration tool
- Individual camera retention and load balancing
In the Box NUUO TP-4161R Titan Pro Series 64-Channel 30MP NVR (16TB HDD) Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NUUO TP-4161R Titan Pro Series 64-Channel 30MP NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNUUO Titan Pro Specs | Video Channels Supported | 64
16 channel licenses included | | Recording Resolution | Up to 30 MP | | Maximum Recording Throughput | 200 Mb/s | | Live View | Up to 64 channels simultaneously (or up to 128 channels with linked servers) | | Playback | Up to 8 channels simultaneously | | Operating System | Linux | | CPU | Intel dual-core | | Drive Bays | 4 x hot-swap storage bays (each supports up to 10 TB) | | Maximum Internal Capacity | 40 TB (16 TB preinstalled) | | I/O Interface | 2 x USB 2.0
1 x USB 3.0
1 x eSATA
1 x RCA audio input
1 x RCA audio output | | Video Output | HDMI & VGA | | LAN | 2 x Gigabit network ports | | Audio | Two-way | | Mobile Support | iPhone, iPad, Android | | Client Operating System | Windows XP (32-bit), Windows 7 (32- & 64-bit), Windows 8 (32- & 64-bit), Windows 8.1 (32- & 64-bit), and Mac OS (versions 10.7, 10.8, and 10.9) | | Video Compression | H.265, H.264, MPEG-4, MJPEG, and MxPEG | | Languages Supported | Albanian, Bulgarian, Chinese (simplified & traditional), Croatian, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil & Portugal), Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, and Turkish | | Voltage | 100-240 V | | Power Consumption | Full Load: 50 W
Max: 250 W | | Operating Temperature | 32-104°F (0-40°C) | | Operating Humidity | 5-95% | | Form Factor | 1 RU | | Dimensions | 1.77 x 17.60 x 16.89" (4.5 x 44.7 x 42.9 cm) | | Weight | 13.2 lb (5.98 kg), without HDDs |
