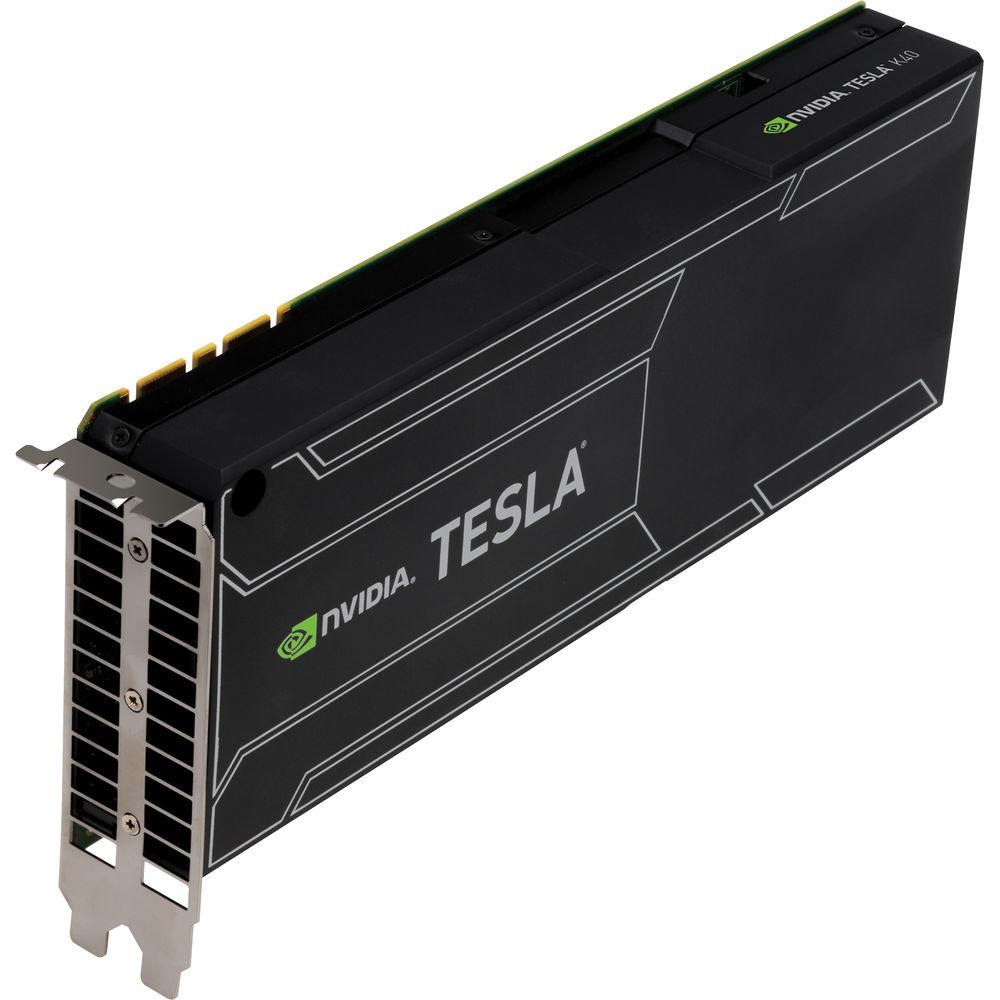

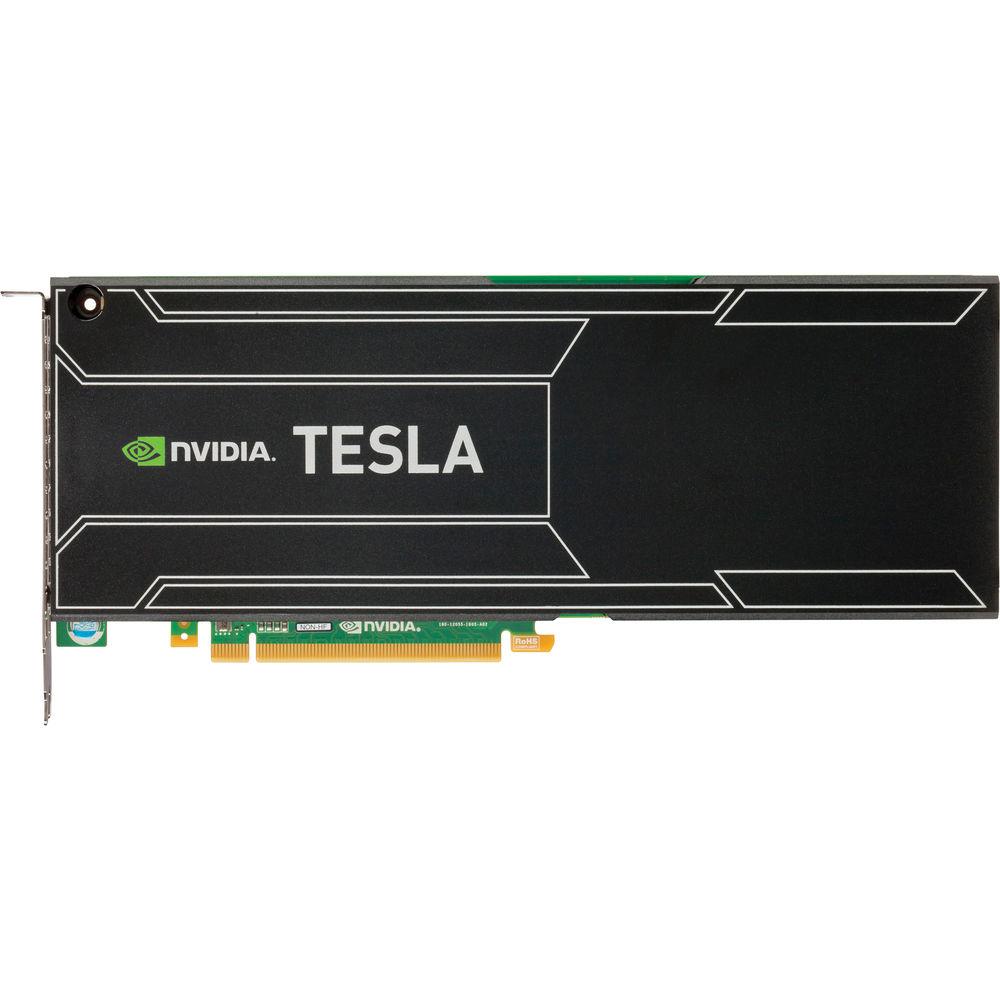

Product description The Tesla K40 GPU Accelerator with passive cooling from Nvidia is a GPU with no video outputs designed exclusively for providing acceleration to assist computational intensive tasks such as transcoding video, rendering 3D models, cryptography, and analysis of complex data sets. It features a 745 MHz core which can be boosted (overclocked) by the end user up to 875 MHz, and has 2880 Kepler generation CUDA cores (stream processors) which allow it to perform hundreds of computations simultaneously. To ensure data moves to and from the processors as efficiently as possible, the card features 12 GB of GDDR5 RAM over a 384-bit memory interface. A 750 MHz native memory clock speed gets effectively boosted to 3 GHz thanks to the fact GDDR5 type memory moves data at four words per cycle. Altogether this yields a memory bandwidth of 288 GB/s. - 4.3 TFLOPs Single Precision Performance
- The card boasts a double precision (64-bit length) benchmark of 1.43 TFLOPs (trillion floating point operations per second), and a single precision (32-bit length) benchmark of 4.3 TFLOPs. Floating point math is commonly found in applications such as 3D modeling as well as certain forms of data analytics
- Supports CUDA and Other APIs
- APIs provide the software interface that exposes applications to the compute power of the GPU for processing-intensive tasks, including transcoding video, cryptography, analysis of complex data sets, rendering 3D environments, CAD modeling, and more
- SMX (Streaming Multiprocessor)
- Redesigned architecture with more cores, delivers up to 3x more performance per watt than the SM technology in previous-generation Nvidia Fermi GPUs
- Dynamic Parallelism
- Enables GPU threads to automatically spawn new threads. By adapting to the data without going back to the CPU, this greatly simplifies parallel programming
- Hyper-Q
- Allows multiple CPU cores to simultaneously use the CUDA cores on a single Kepler GPU. This dramatically increases GPU utilization while reducing CPU idle times
- Multi-Language SDKs
- For software developers, SDKs are available for OpenACC, CUDA, C, C++ and Fortran
- ECC Error Correction
- Protects the data integrity from interference caused by cosmic background radiation
- System Monitory Features
- Integrates the GPU subsystem with the host system's monitoring and management capabilities, such as IPMI or OEM-proprietary tools. IT staff can now manage the GPU processors in the computing system using widely used cluster/grid management solutions
- L1 and L2 Caches
- Accelerates algorithms such as physics solvers, ray tracing, and sparse matrix multiplication where data addresses are not known beforehand
- Tesla GPUBoost
- End-user can convert power headroom to higher clocks and achieve even greater acceleration for various computationally-intensive workloads on Tesla K40
- Passive Cooling for High MTBFs
- A heatsink cooling system means no moving parts to wear out over time. And since there is no fan, the card operates silently for use in edit suits and other noise-sensitive environments
- Quad Data Rate (QDR) GDDR5 RAM
- Because GDDR5 RAM can transfer up to four words per cycle, as opposed to one word per cycle with traditional RAM, the effective data rate is quadrupled, allowing this card to process data transactions as quickly as if it had a 3.0 GHz memory clock speed
- PCI Express 3.0 x16 Support
- Provides twice the bandwidth of PCI Express 2.0; for example, an x8 PCI Express 3.0 slot has the same bandwidth as a x16 PCI 2.0 slot. In addition, the card remains backward-compatible with motherboards using earlier generations of PCI Express
In the Box NVIDIA Tesla K40 GPU Accelerator (Passive Cooling) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVIDIA Tesla K40 GPU Accelerator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVIDIA K40 Specs | | | GPU | 1 x Kepler GK110B | | GPU Clock | Base: 745 MHz
With Boost: 810 / 875 MHz | | Stream Processors (CUDA Cores) | 2880 | | Memory | 12 GB | | Memory Type | GDDR5 | | Memory Clock | Actual: 750 MHz
Effective (QDR): 3 GHz | | Memory Interface | 384-bit | | Memory Bandwidth | 288 GB/s | | BIOS | 2 Mbit serial ROM
BAR1 Size: 16 GB | | Floating Point Performance | Double Precision: 1.43 TFLOPs
Single Precision: 4.29 TFLOPs | | | | Software | Windows (32- and 64-bit): 8.1, 7, Vista, XP, Server 2008 R2
Windows (64-bit only): Server 2012 R2
Linux (x86 64-bit and ARM): Support varies depending on distribution | | Hardware | 1 x Free PCI-E x16 slot for electrical interface (PCI-E 3.0 x16 recommended for best performance)
2 x Free PCI-E slots physical
1 x 6-pin PCI-E power connector
1 x 8-pin PCI-E power connector | | | | Thermal Solution | Passive heatsink | | Power Consumption | Maximum: 235 W
Idle: 16 W | | MTBF | GB@ 35C: 282,847 hours
GF@ 35C: 252,222 hours | | Form Factor | Dual Slot: Full-height, full-length | | Dimensions | 4.4 x 10.5" x dual slot / 111.2 x 267 mm x dual slot | | Weight | Not specified by manufacturer | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.9 x 9.1 x 2.4" |
