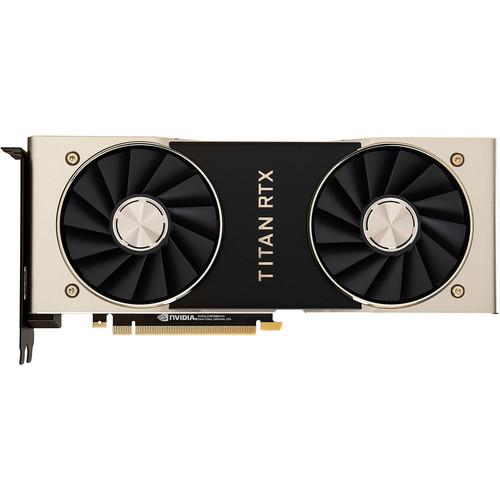

User Manual for NVIDIA Titan RTX Graphics Card Click to enlarge the picture
Contents of the user manual for the NVIDIA Titan RTX Graphics Card
- Product category: Graphic Display Cards NVIDIA
- Brand: NVIDIA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVIDIA Graphic Display Cards
 |
User manual for the NVIDIA Titan RTX Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVIDIA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVIDIA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVIDIA product will considerably shorten its lifespan!
|

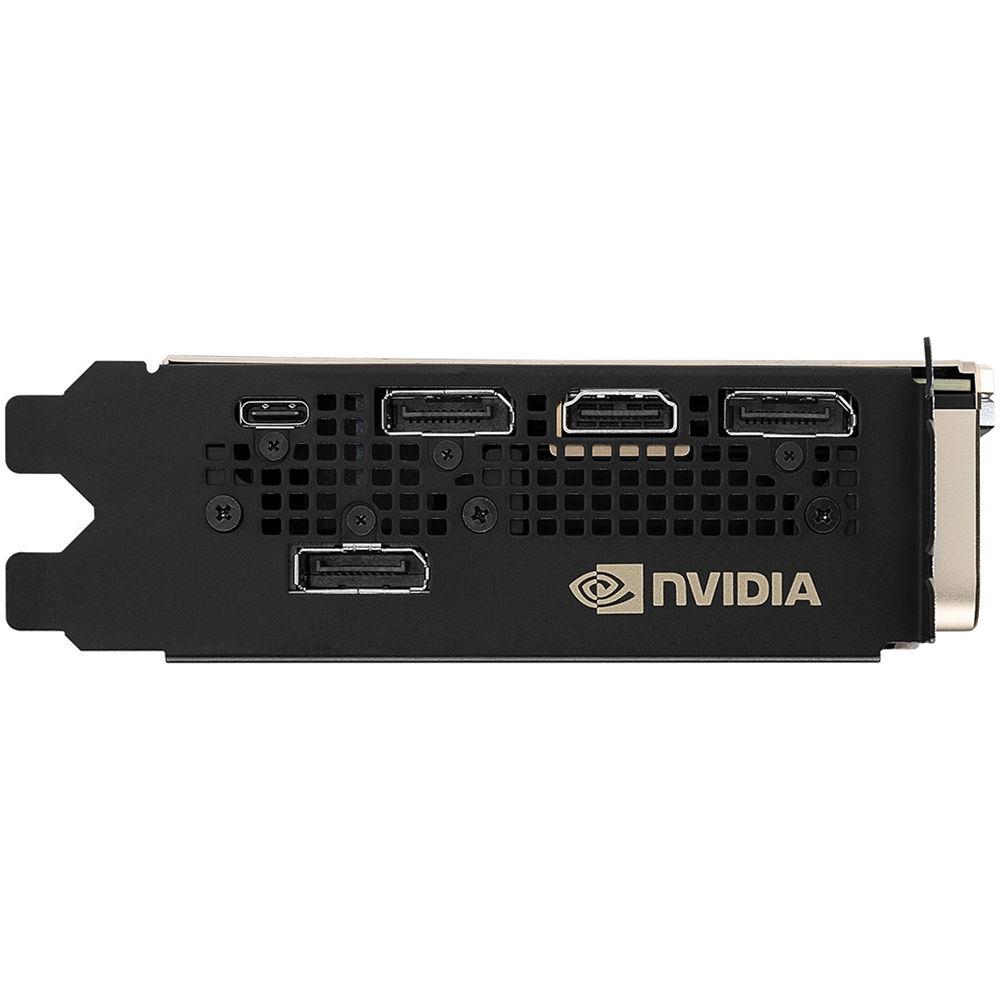

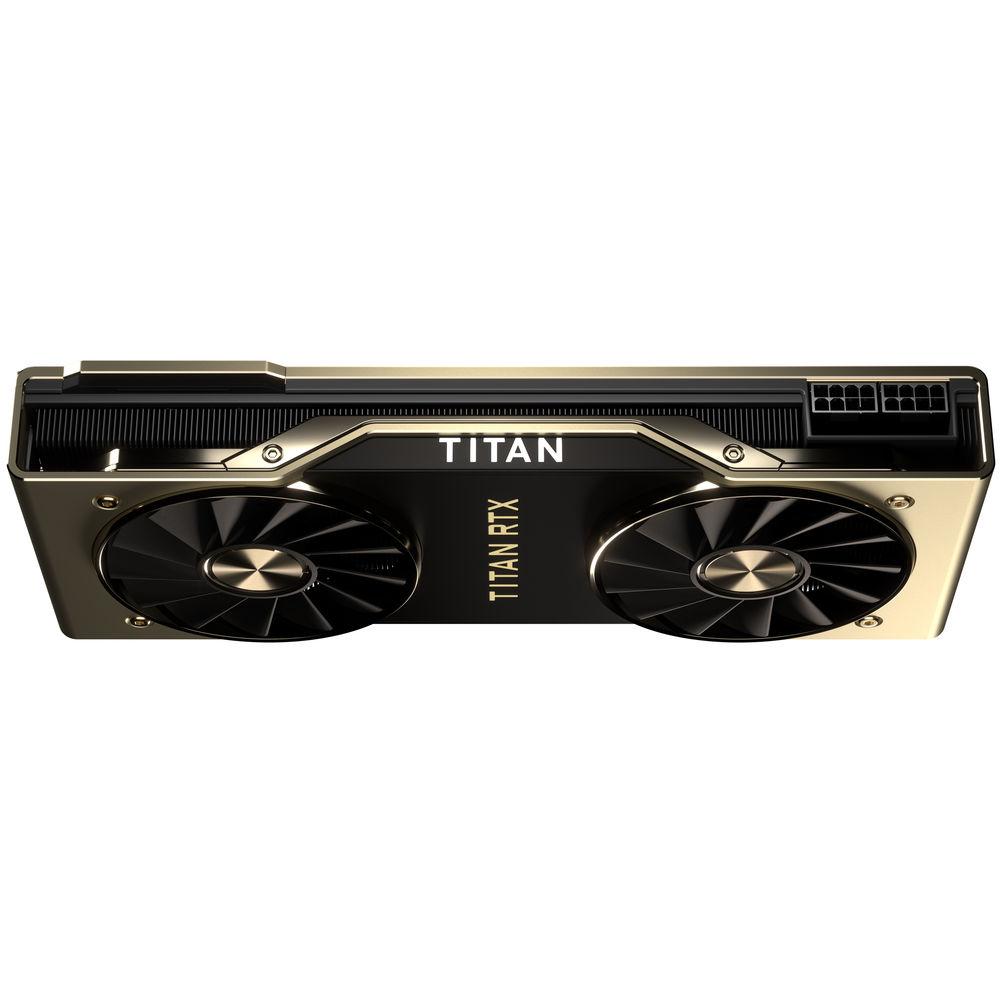

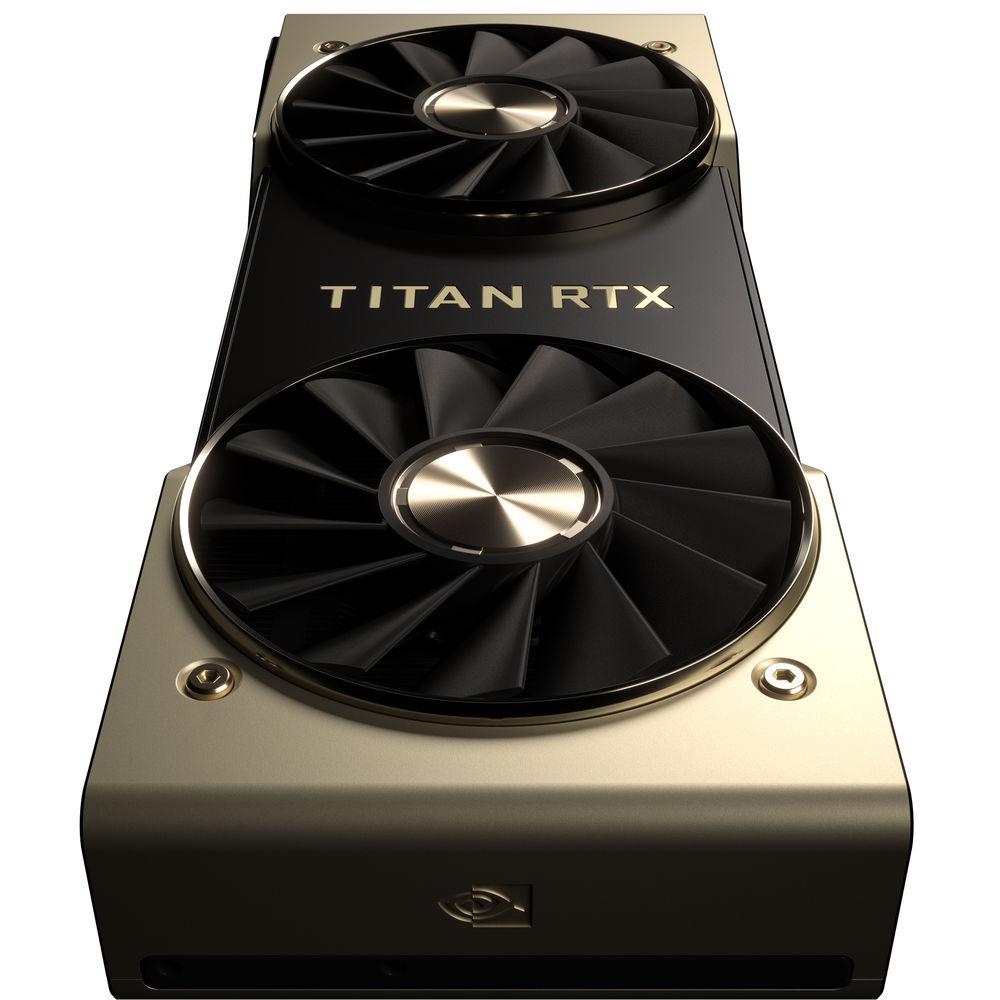

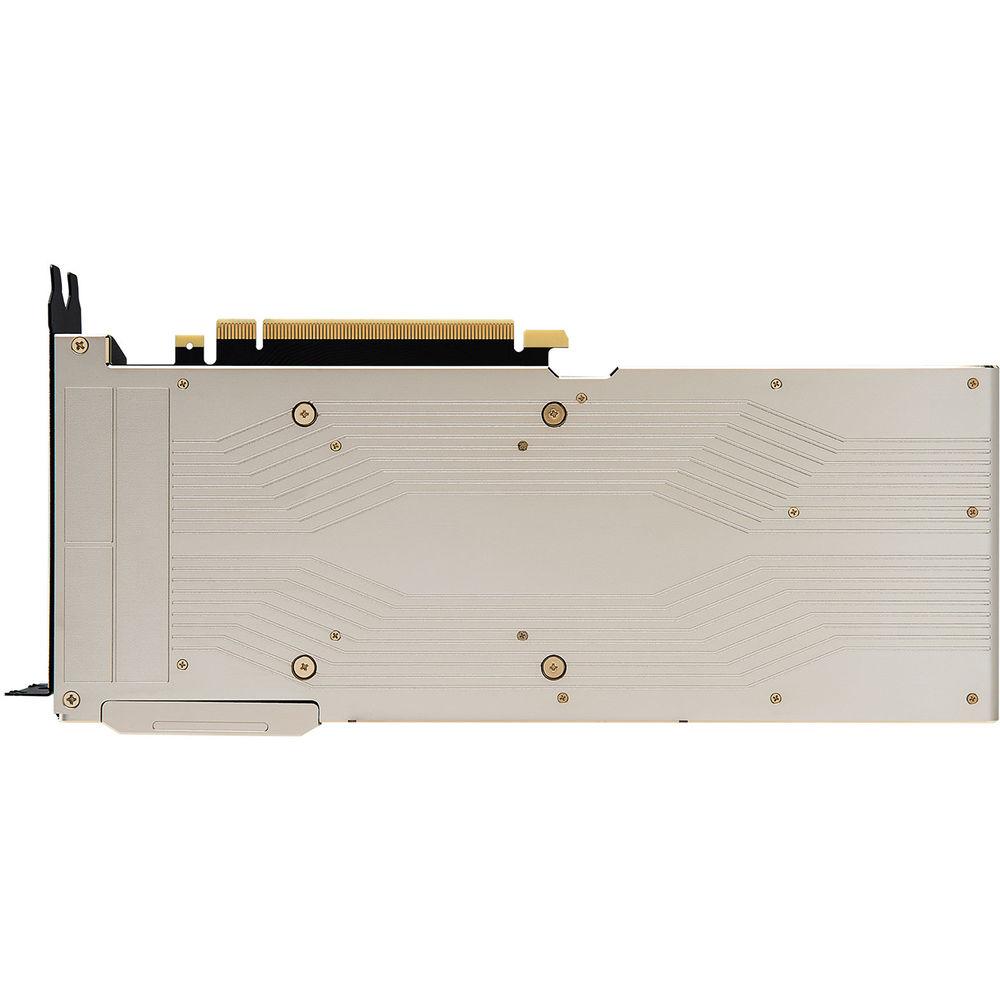

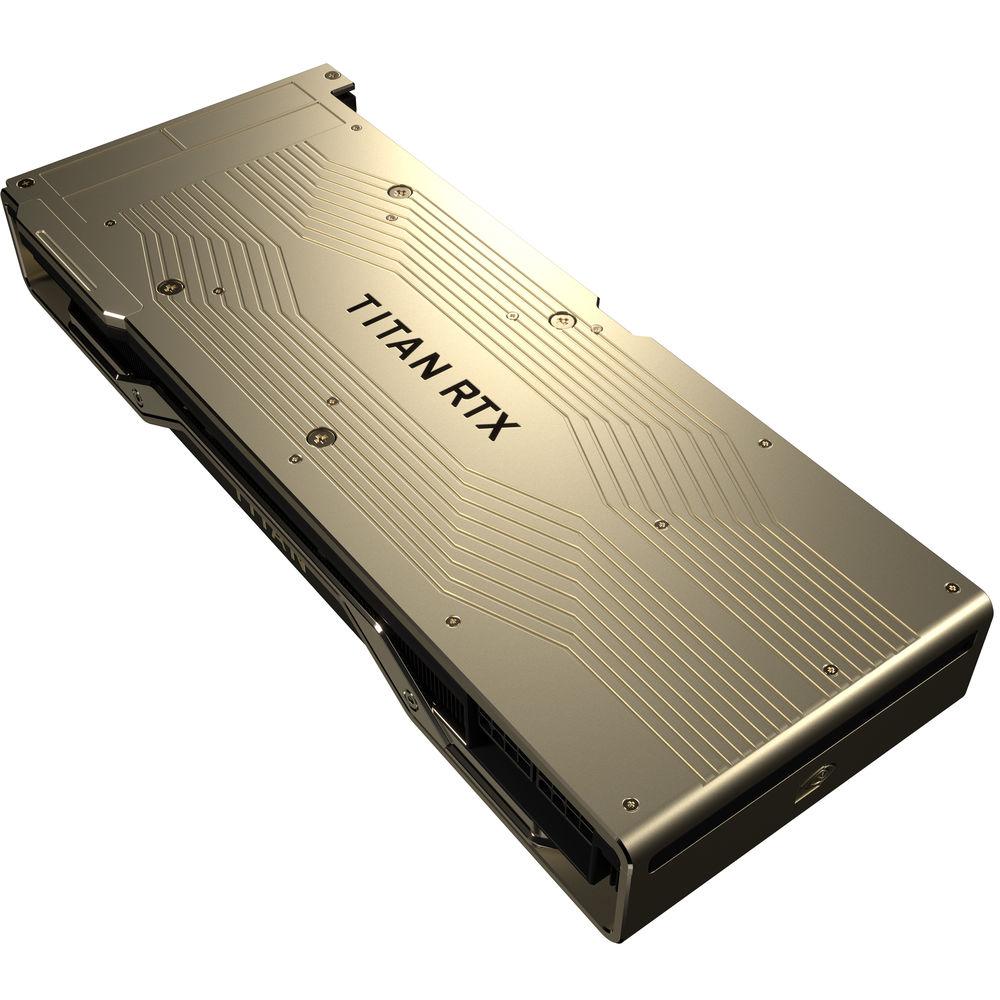

Product description NVIDIA Introduces the TITAN RTX Read More Based on the Turing architecture and designed to handle real-time 8K video editing, the NVIDIA Titan RTX Graphics Card. Its 576 tensor cores can provide up to 130 tensor TFLOPs of performance. The front panel of the card features a variety of outputs. There are three DisplayPort outputs, one HDMI output, and one USB Type-C port with the VirtualLink standard. Computationally intensive programs can utilize the GPU's 4608 cores to accelerate tasks using CUDA or other APIs. It also has 24GB of GDDR6 VRAM. For cooling, NVIDIA implemented a dual-fan cooler. The dual 13-blade fans produce three times the airflow and provides quiet acoustics. The full-card vapor chamber is two times larger to maximize heat spreading and heat transfer to the finstack. A forged and machine-finished diecast aluminum cover with diamond-cut edge detailing provides a rigid, lightweight frame for an open design with smooth, continuous curves. - Real-Time Ray Tracing & Deep Learning
- The NVIDIA TITAN RTX platform enables real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination. The TITAN RTX features 11 GigaRays per second of real-time ray-tracing performance. It also has 576 multi-precision Turing Tensor Cores, providing up to 130 teraflops of deep learning performance.
- USB Type-C with VirtualLink
- VirtualLink is an open industry standard that enables next-gen VR headsets to connect with PCs and other devices using a single, high-bandwidth USB Type-C connector. The Alternate Mode of USB Type-C simplifies and speeds up VR setup time, avoiding key obstacles to VR adoption. VirtualLink connects with VR headsets to simultaneously deliver four high-speed HBR3 DisplayPort lanes, which are scalable for future uses, a USB 3.1 Gen 2 data channel for supporting high-resolution cameras and sensors, and provides up to 27 watts of power.
- SLI Ready
- With a compatible motherboard and a connecting bracket, two or more NVIDIA GPUs of the same model can combine processing power using NVIDIA's Scalable Link Interface (SLI). How the cards work together can be customized to suit your preferences. Alternate frame rendering has each alternating card prepare the next frame, essentially multiplying the capabilities of a single card's maximum capable frame rate output. Each card in the configuration can also be used to improve anti-aliasing by being able to process an image in parallel with the other cards before filtering out jagged edges.
The NVIDIA GeForce RTX NVLink Bridge (sold separately) provides 50 times the available transfer bandwidth of previous technologies. Delivering smooth gameplay, it's an effective way to enjoy surround gaming and it's only compatible with the GeForce RTX 2080 and 2080 Ti graphics cards.
Note: The benefits of SLI will vary based on component configuration. - NVIDIA GPU Boost 4.0
- Boosts the card's clock speed in real-time based on the target temperature. If the card is running below the set target temperature, GPU Boost 4.0 will increase the clock speed to improve performance. The target temperature can be reset depending on your preference so you can have the card run more quietly for everyday tasks and older games, and run at full tilt during intense high-resolution gaming sequences.
- NVIDIA Ansel
- With Ansel, gamers can compose the gameplay shots they want, pointing the camera in any direction and from any vantage point within a gaming world. They can capture screenshots at up to 32 times the screen resolution, and then zoom in where they choose without losing fidelity. With photo-filters, they can add effects in real-time before taking the shot. And they can capture 360-degree stereo photospheres for viewing in a VR headset or Google Cardboard.
- CUDA
- NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA-compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks.
- NVIDIA NVLink
- With 100 GB/s NVLink, you can pair two TITAN RTX GPUs to scale memory and compute.
- G-SYNC Ready
- When used with a monitor that has G-SYNC hardware installed, the monitor's refresh rate will sync and lock with the graphics card's output frame rate. Establishing this sync removes tearing and stuttering which can result from conventional fixed screen refresh rates, especially important for gaming in stereoscopic 3D. An additional benefit of G-SYNC is reduced lag so gamers will benefit from the improved command response time as well.
UPC: 812674022758 More info from NVIDIA txbtburwaztvcbbxxd Table of Contents
|
Upload User Manual
Have you got an user manual for the NVIDIA Titan RTX Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVIDIA RTX Specs | | | GPU Model | NVIDIA TITAN RTX | | Stream Processors | 4608 CUDA Cores | | Boost Clock Speed | 1770 MHz | | Base Clock Speed | 1350 MHz | | Floating Point Performance | 130.00 TFLOPS | | | | Memory Speed | 14 Gb/s | | Memory Configuration | 24 GB | | Memory Interface | GDDR6 | | Memory Interface Width | 384-Bit | | Memory Bandwidth | 672 GB/s | | | | Display Connectors | 3 x DisplayPort
1 x HDMI
1 x USB Type-C | | | | Max Power Consumption | 280 W | | PCI Power Connectors | 2 x 8-Pin | | Recommended System Power Requirement | 650 W | | | | Package Weight | 4.62 lb | | Box Dimensions (LxWxH) | 13.0 x 7.0 x 3.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
