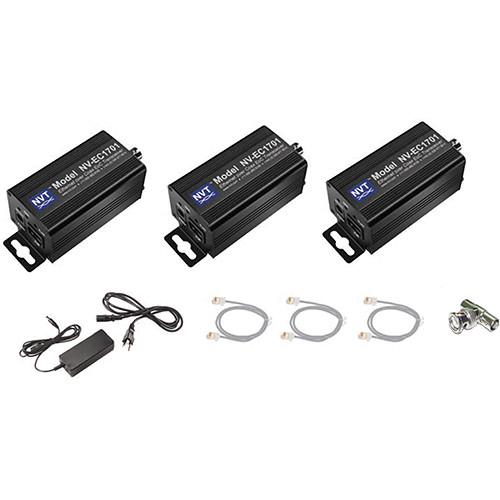

Product description The NVT Dual 60W EoC Transmission System consists of three NV-EC1701 Transceivers, an NV-PS56-60W Power Supply with a 6’ IEC line cord, one NV-BNCT BNC “T” Adapter, and three NV-PC4PR 3’ 4-pair RJ45 Patch Cords.
Each NV-EC1701 Ethernet over Coax EoC Transceiver is a compact media converter that allows 10/100 BaseT Ethernet and PoE+ power to be transmitted using a coax cable (not included). This transceiver is used in legacy installations where the existing cable is re-deployed as a part of an upgrade to IP cameras. The Class 2 power of 56VDC is delivered to one transceiver, which distributes to multiple remote transceivers and their PoE, PoE+, or high power PoE cameras. The transceiver is simple to use with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/activity for RJ45 and BNC ports.
The NV-PS56-60W Power Supply delivers power to the NV-EC1701 Transceivers. This 56VDC power supply offers an output power of 60W with a 6' IEC line cord.
Each gray 3' 4-Pair RJ45 Patch Cord features two RJ45 plugs and is used with the NV-EC1701 Transceivers.
The BNC "T" Adapter is used for bridging cables and equipment in your setup. It features a male BNC connector on one end and 2 female BNC connectors on the other ends. Note: The distance and number of devices supported may lower because of decrease in power supply capacity and wire voltage. - EoC Ethernet over Coax Transceiver with PoE The EoC Ethernet over Coax Transceiver with PoE from NVT is a compact converter that allows 10/100Base-T Ethernet and PoE power to be transmitted using coax cable. EoC devices are typically used in legacy installations where existing coax is re-deployed as part of an upgrade to IP cameras. Class 2 power of 56 VDC is delivered to one transceiver, which distributes it to up to four remote transceivers (available separately) and their PoE cameras. This transceiver is easy to use with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/activity for RJ45 and BNC ports.
- 10/100Base-T transmission speeds up to 93 Mbps at up to 8000'
- Powers PoE devices up to 50W
- 56 VDC is distributed over the coax to all connected equipment
- Easy configuration, no PC required
- Supports all networking protocols including UDP, TCP/IP, TFTP, RTP, and HTTP
- 128-bit AES encrypted transmission and power technology with built-in transient protection
UPC: 735890017011 - NV-PS56-60W Power Supply (56 VDC, 60W) The NVT NV-PS56-60W Power Supply delivers 56 VDC and 60W of power to the NV-EC1701U and NV-EC1701 Ethernet over Coax (EoC) transceivers. A molded P1J 5.5mm barrel connector at the end of a 6' cord provides Class 2 (SELV) regulated output.
- 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) The 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) from NVT features two RJ45 plugs and is designed for use with NV-EC1701 Transceivers.
In the Box Bundle Items 3 x EoC Ethernet over Coax Transceiver with PoE urbaawaruxxtxdwrwzuecwf - NV-PS56-60W Power Supply (56 VDC, 60W)
- Limited Lifetime Warranty
NV-PS56-60W Power Supply (56 VDC, 60W) - Limited Lifetime Warranty
BNC "T" Adapter 3 x 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT Dual 60W EoC Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EoC Ethernet over Coax Transceiver with PoE
| Connectors | RJ45, auto-crossover
BNC/RG59U coax connection | | Wire Type | Cat5 or better | | Distance | RJ45 Ethernet Interface: up to 328' (100 m)
Coax Building Wiring Interface: up to 8000' (2500 m) | | Speed | Up to 93 Mbps, 10/100Base-T with auto-negotiation and auto MDI/MDIX crossover | | Latency | 3 ms | | Throughput | 85 Mbps ±10% useable bandwidth per network | | Network Compatible | IEEE 802.3af/a | | Impedance | 25 to 100 Ohms | | Security | 128-bit AES encryption | | LED Indicators | Power: Blue
BNC Interface: Green
RJ45 Interface: Green | | Transient Immunity | 5 x 20 µS 3000 A, 6000 V ESD 20 kV, 200 pF | | Consumption | ≤ 3 W @ 10 to 56 VDC | | Input Voltage | 100-240 VAC, 50/60 Hz | | Operating Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity (non-condensing) | 20 to 85% | | Dimensions | 4.1 x 1.6 x 1.7" (102 x 40 x 42 mm) | | Weight | 0.32 lb (145 g) | | | | Box Dimensions (LxWxH) | 4.85 x 2.0 x 1.95" | - NV-PS56-60W Power Supply (56 VDC, 60W)
| Input | 100 to 240 VAC, 50/60 Hz | | Output | 56 VDC, 60 W | | Environmental | Operating:
Temperature: -22 to 122°F / -30 to 50°C
Humidity: 20 to 85% relative, non-condensingStorage:
Temperature: -40 to 185°F / -40 to 85°C
Humidity: 0 to 95% relative, non-condensing | | Dimensions | Power Supply: 4.9 x 2.0 x 1.25" / 12.5 x 5.0 x 3.2 cm
Power Cord Length: 6.0' / 1.8 m | | Weight | Power Supply: 10.6 oz / 300.0 g
Power Cord: 5.5 oz / 156.0 g | | | | Box Dimensions (LxWxH) | 7.5 x 3.5 x 1.3" | - 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray)
| Length | 3' (0.91 m) | | Connector 1 | RJ45 | | Connector 2 | RJ45 | | Color | Gray | | Compatibility | NVT NV-EC1701 Transceivers | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 0.75" |
