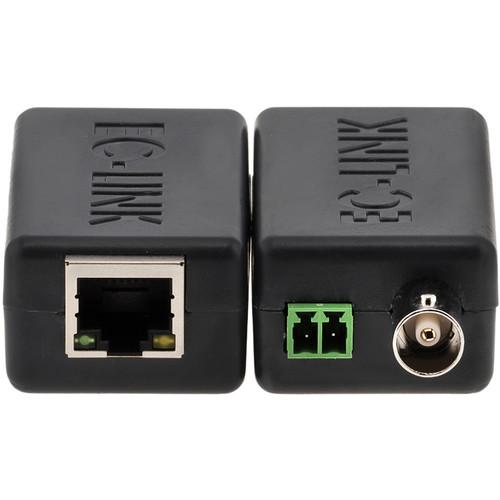

User Manual for NVT EC-Link Coaxial to Ethernet Media Converters Click to enlarge the picture
Contents of the user manual for the NVT EC-Link Coaxial to Ethernet Media
- Product category: Ethernet Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Ethernet Extenders
|
User manual for the NVT EC-Link Coaxial to Ethernet Media contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description Designed to support the network end point leveraging NVT CLEER and EC10 switches, this pair of EC-Link Coaxial to Ethernet Media Converters from NVT allows you to convert coax signals over Ethernet cable, or extend Ethernet signals with PoE for long distances up to 2000'. One unit can be the base unit and connect to the PoE switch, while the other can be the camera unit and connect directly to the network device, such as a camera or phone. Both units can be locally powered or powered via a PoE switch. These converters feature 100 Mbps symmetrical full duplex PoLRE technology with a range of up to 2000' depending on coax cabling used. - Converts coax signals over Ethernet cable
- Extends Ethernet with PoE up to 2000'
- Compatible with NVT CLEER and EC10 switches
- Can be locally powered or powered via PoE switch/injector
UPC: 735890500049 In the Box NVT EC-Link Coaxial to Ethernet Media Converters (Pair) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT EC-Link Coaxial to Ethernet Media Converters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-LNK-02 Specs | Coaxial | 1 x BNC port for RG59, RG6, or RG11 | | Ethernet | 1 x RJ45 port, 10/100Base-T autosensing, IEEE 802.3af/at, 100 Mbps connection to network end device | | PoE | 37-56 VDC voltage on RJ45 port
Endpoint devices must be compliant with IEEE 802.3af/at | | DC In | 48-56 VDC via an external AC/DC (available separately)
Power Adapter (IEC Class II isolated only) (available separately) | | Distance | 18 AWG RG6 Cable:
300' (92 m) at 30 W, 600' (183 m) at 28 W, 900' (275 m) at 26 W, 1300' (396 m) at 23 W, 1700' (518 m) at 20 W, 2000' (609 m) at 17 W
20 AWG RG59 Cable:
300' (92 m) at 30 W, 600' (183 m) at 27 W, 900' (275 m) at 25 W, 1300' (396 m) at 22 W, 1700' (518 m) at 17 W | | Power Consumption | 0.9 W | | Mounting | Inline between the Cat5e or Cat6 cable (to network endpoint) and the coax cable (to CLEER or EC10 switch) or a second EC-Link when used as an extender | | Operating Temperature | -58 to 158°F (-50 to 70°C) | | Humidity (Non-Condensing) | 10 to 95% at 95°F (35°C) | | Dimensions | 0.83 x 1.23 x 3.46" (2.1 x 3.2 x 8.8 cm) | | Weight | 1.48 oz (42 g) | | | | Package Weight | 0.215 lb | | Box Dimensions (LxWxH) | 4.05 x 2.85 x 0.95" |
