Product description The EoC Ethernet over Coax Transceiver with PoE from NVT is a compact converter that allows 10/100Base-T Ethernet and PoE power to be transmitted using coax cable. EoC devices are typically used in legacy installations where existing coax is re-deployed as part of an upgrade to IP cameras. Class 2 power of 56 VDC is delivered to one transceiver, which distributes it to up to four remote transceivers (available separately) and their PoE cameras. This transceiver is easy to use with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/activity for RJ45 and BNC ports. This kit contains five transceivers, five patch cords, one BNC 4-way splitter adapter, and one power supply with an IEC line cord. - 10/100Base-T transmission speeds up to 93 Mbps at up to 8000'
- Powers PoE devices up to 50W
- 56 VDC is distributed over the coax to all connected equipment
- Easy configuration, no PC required
- Supports all networking protocols including UDP, TCP/IP, TFTP, RTP, and HTTP
- 128-bit AES encrypted transmission and power technology with built-in transient protection

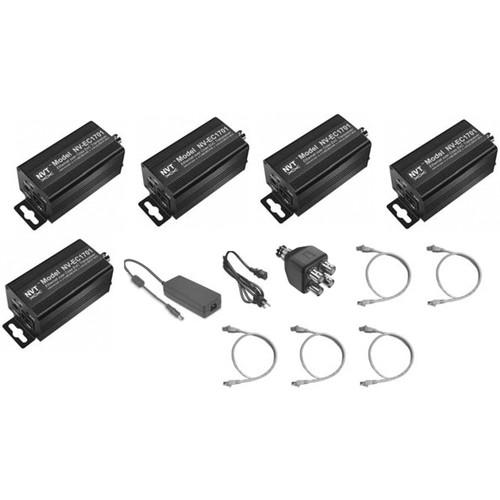

UPC: 735890417019 In the Box NVT EoC Ethernet over Coax Transceiver with PoE (5-Pack) 5 x EoC Ethernet over Coax Transceiver with PoE fxebsbutttrx 5 x 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) BNC Coax Splitter Adapter NV-PS56-60W Power Supply (56 VDC, 60W) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT EoC Ethernet over Coax Transceiver with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-EC1701 Specs | Connectors | RJ45, auto-crossover
BNC/RG59U coax connection | | Wire Type | Cat5 or better | | Distance | RJ45 Ethernet Interface: up to 328' (100 m)
Coax Building Wiring Interface: up to 8000' (2500 m) | | Speed | Up to 93 Mbps, 10/100Base-T with auto-negotiation and auto MDI/MDIX crossover | | Latency | 3 ms | | Throughput | 85 Mbps ±10% useable bandwidth per network | | Network Compatible | IEEE 802.3af/a | | Impedance | 25 to 100 Ohms | | Security | 128-bit AES encryption | | LED Indicators | Power: Blue
BNC Interface: Green
RJ45 Interface: Green | | Transient Immunity | 5 x 20 µS 3000 A, 6000 V ESD 20 kV, 200 pF | | Consumption | ≤ 3 W @ 10 to 56 VDC | | Input Voltage | 100-240 VAC, 50/60 Hz | | Operating Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity (non-condensing) | 20 to 85% | | Dimensions | 4.1 x 1.6 x 1.7" (102 x 40 x 42 mm) | | Weight | 0.32 lb (145 g) | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 7.5 x 4.0 x 2.25" |
