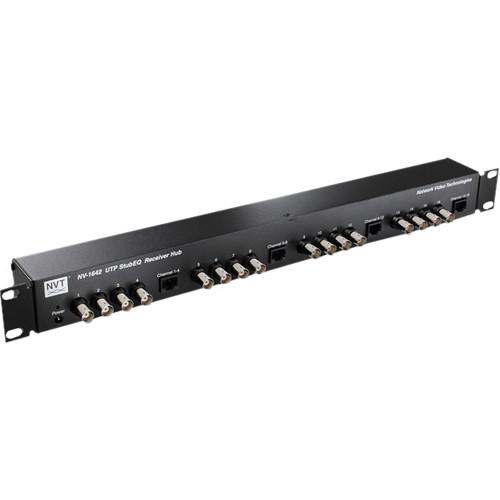

Product description The NVT NV-1642 StubEQ Active Receiver Hub (16 Channels), with adaptive StubEQ fully automatic 2-band equalization, transmits real-time camera video for a maximum distance of 2000' (600m) using Cat2 or a better version of UTP cable, when used with the NV-653T active transmitter. The active hub automatically and continuously conditions the video signal, making up for cable attenuation, voltage transient, and ground loops, thereby saving significant installation and maintenance time. The built-in transient protection and ground-lifting eliminate voltage spikes damage and ground loops respectively. The unique interference rejection and low emissions allow the video and low voltage power circuits to appear within the same wire bundle, thus allowing the use of shared or existing cable plant. Connected through RJ-45, the receiver hub comes with 4 optional NV-RJ-45A RJ-45-to-screw-terminal adaptors. The hub is compatible with qualified UTP cameras and includes a 1U tall and shallow depth 19" rack mount with hardware and rubber stand for desk applications. - Adaptive StubEQ fully automatic 2-band equalization provides adjustment-free equalization
- Transmits real-time camera video for a maximum distance of 2000' (600m) using Cat2 or a better version of UTP cable
- Built-in transient protection eliminates voltage spikes damage
- Ground-lifting eliminates ground loops
- Unique interference rejection and low emissions allow the video and low voltage power circuits to appear within the same wire bundle
- RJ-45 connectivity with 4 optional NV-RJ45A RJ45-to-screw-terminal adaptors
- Compatible with qualified UTP cameras
- High density, 1U tall and shallow depth 19" compact rack mount with hardware
- Rubber stand for desk applications
UPC: 735890016427 In the Box NVT NV-1642 StubEQ Active Receiver Hub (16 Channels) 12VDC 1 Amp Regulated Power Module with IEC380-8 Inlet and Molded Power Cord Rack Mount "L" Brackets (for front, rear, wall installations) Rubber Feet (for desk installations) 4 x RJ45 to Screw Terminal (NV-RJ45A) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-1642 StubEQ Active Receiver Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-1642 Specs | Frequency Response | DC to 5 MHz | | Equalization | Automatic (no adjustment) 0 to 1,250' (0 to 380 m) for NTSC or PAL standards | | Common Mode Rejection | (Common-mode / Differential-mode rejection)
15 KHz to 5 MHz: 60 dB typ | | Impedance | Coax, female BNC: 75 ohms
UTP, Screw terminal block or RJ45: 100 ohms | | Cable Type | Unshielded Twisted Pair: 0 to 1,500' (0 to 457 m) 24-16 AWG
Category Type: 2 or better
Impedance: 100 ± 20 ohms
DC Loop Resistance: 52 ohms per 1,000' (18 ohms per 100 m)
Differential Capacitance: 19 pF/ft max (62 pF/m max) | | Power | Voltage: 115 / 230VAC
Current: 125mA / 60mA
Wattage: 15 Watts 50 BTU/Hour
Frequency: 50 / 60 Hz
(12VDC power adapter included) | | Environment | Ambient temperature: 32 - 122°F (0 - 50°C)
Minimum airflow: 4'/min (0.1 m/min)
Humidity: (non-condensing) 0 to 95 %
Transient Immunity: per ANSI / IEEE 587 C62.41 | | Dimensions (WxHxD) | 17 x 1.7 x 1.9" (43 x 4.5 x 4.8mm) | | Weight | 2.5 lbs (1.1kg) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 7.0" |
