User Manual for NVT NV-1672 16-Channel DigitalEQ Active Receiver Distribution Amplifier Hub Click to enlarge the picture
Contents of the user manual for the NVT NV-1672 16-Channel DigitalEQ Active Receiver
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
 |
User manual for the NVT NV-1672 16-Channel DigitalEQ Active Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description The NVT NV-1672 converts the video signal coming from up to 16 analog BNC devices so that they can transmitted over UTP (Unshielded Twisted Pair) telephone wires.
Some of the key advantages UTP has over a BNC cable is a lower cost, less bulkiness and most importantly, the ability to transmit over longer distances without suffering signal attenuation. A UTP transmitter is also an obvious choice for use in buildings already wired for UTP. - DigitalEQ
- A built-in digital equalizer continuously monitors and auto compensates for signal aberrations like cable attenuation, ground-loops and wiring polarity, thus ensuring maximum signal stability.
- Long Distance Transmission

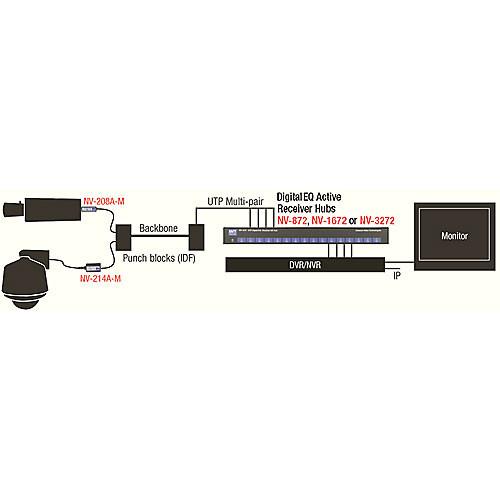

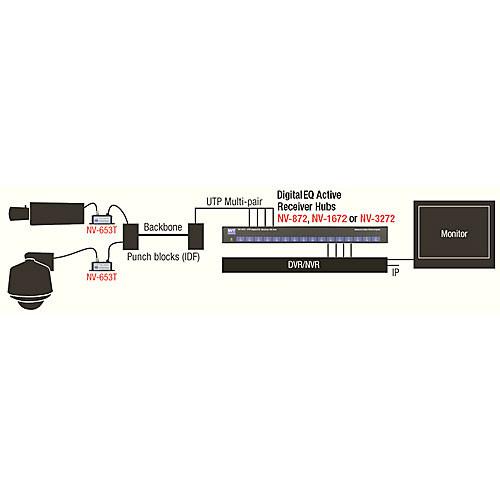

- The maximum UTP cable distance supported by this unit depends on the type of UTP receiver used at the other end of the cable. When used with an active receiver (NV-653T), transmission distances of up to 1 mile (1.6km) are possible. With a passive receiver, video can be transmitted up to 3000 ft (1km).
- 2 Outputs Per Channel
- To accommodate large CCTV installations containing multiple cameras, this transceiver supports two UTP outputs per BNC video input.
- Outstanding Interference Rejection
- Distance EQ, ground lifting and transient protection are among the functions employed to allow multiple signals like telephone, datacom and low-voltage power circuits to share the same UTP cable without causing "hum-bars", voltage spikes and similar electrical interference problems.

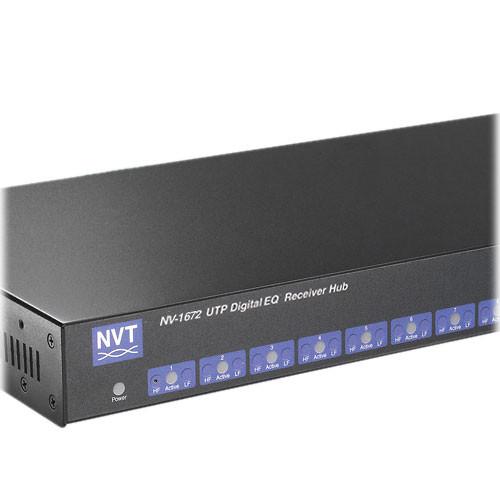

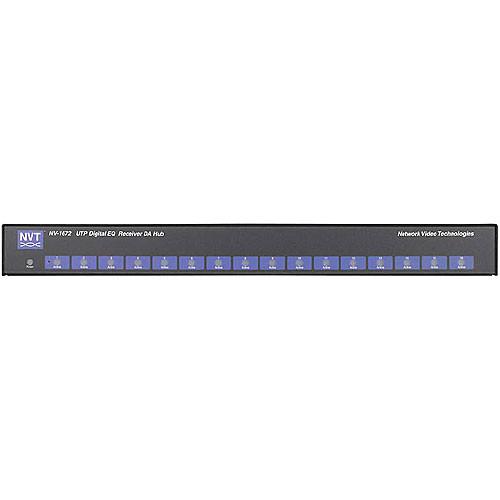

- Green Active LED Per Port
- Each BNC port has its own LED light so that an operator can see at a glance which video device is currently transmitting.
UPC: 735890116721 In the Box NVT NV-1672 16-Channel DigitalEQ Active Receiver Distribution Amplifier Hub Power cord 16 x 2 ft (60cm) Coax jumper cable Rack mount "L" brackets for front, rear or wall installations Rubber feet for desk mounting 4 x NV-RJ45A RJ45 to screw-terminal adapters Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-1672 16-Channel DigitalEQ Active Receiver Distribution Amplifier Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

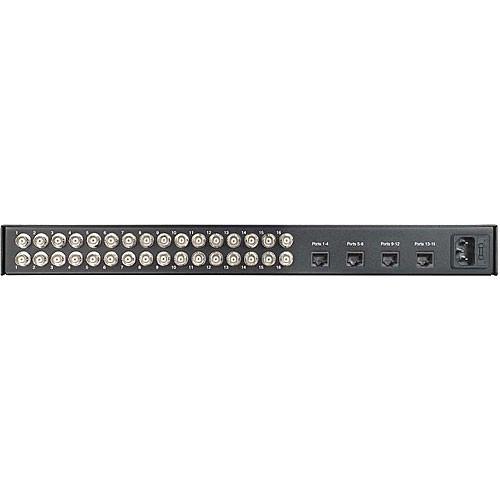

Technical parametersNVT NV-1672 Specs | Video Inputs | BNC x16 | | Video Outputs | UTP x32 | | Maximum Cable Length | With Active Transceiver: 1 mile (1.6km)
With Passive Transceiver: 3000 ft (1km) | | Power Requirements | 115-230 VAC | | Power Consumption | 18-37W | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (WxHxD) | 17 x 1.7 x 8.1" (480 x 43 x 206mm) | | Weight | 5.5 lbs (2.5 kg) | | | | Package Weight | 10.6 lb | | Box Dimensions (LxWxH) | 20.0 x 10.75 x 5.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
