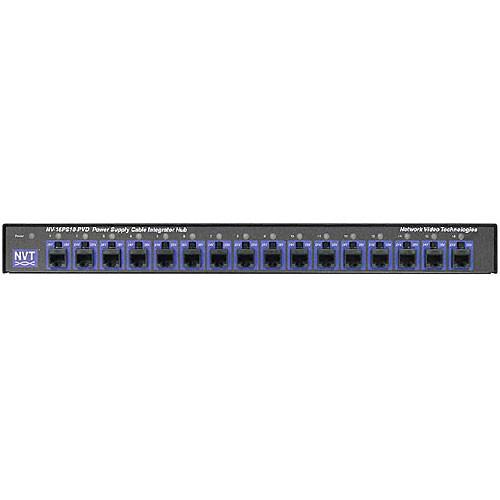

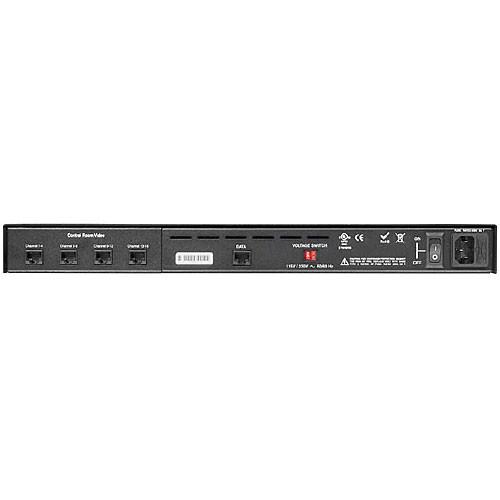

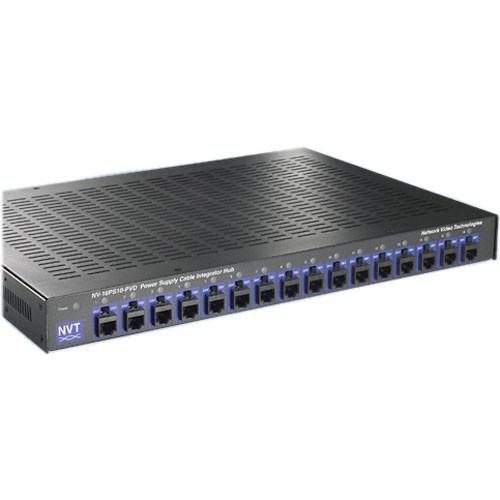

User Manual for NVT NV-16PS10-PVD 16-Channel Power Supply Cable Integrator Hub Click to enlarge the picture
Contents of the user manual for the NVT NV-16PS10-PVD 16-Channel Power Supply Cable
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
 |
User manual for the NVT NV-16PS10-PVD 16-Channel Power Supply Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|

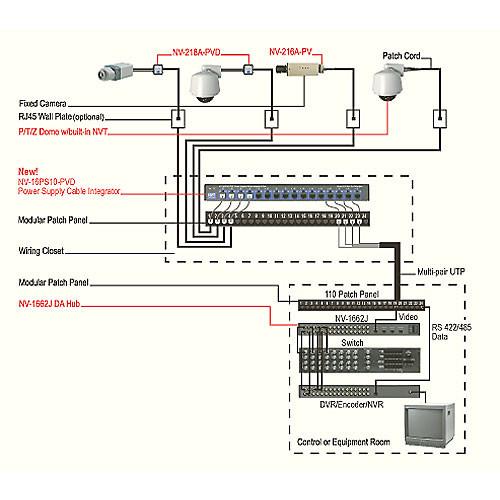

Product description The NVT NV-16PS10-PVD provides Class 2 SELV power for up to 16 CCTV cameras over the same UTP cable used for video and telemetry communication. This will allow a single Cat5 cable connection between an NVT UTP camera and the system DVR, encoder or NVR. In addition to simplifying the installation process and being a major cost saver, this type of configuration also provides better power management. - Supplies 24 or 28VAC power over UTP while allowing video and telemetry signal pass-through
- Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
- Independently selectable 24VAC - OFF - 28VAC with 1amp per channel
- Low profile design with high port density saves rack space (1RU high)
- Transient and automatic reset fault protection
- Diagnostic LEDs indicate load/no load, miswire and overload conditions
UPC: 735890072102 In the Box NVT NV-16PS10-PVD 16-Channel Power Supply Cable Integrator Hub Rack mount "L" brackets for front, rear, or wall installations Rubber feet for desk installation Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-16PS10-PVD 16-Channel Power Supply Cable Integrator Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-16PS10-PVD Specs | UTP Input/Output Connector | x16 | | Power Input | 115 - 230VAC | | Power Output | 24VAC / Off / 28VAC (switchable) | | Amperage | 1amp per channel | | Operating Temperature | -40 ~ 122°F (-20 ~ +50°C) | | Dimensions (WxHxD) | 19 x 1.7 x 12" (483 x 44 x 305mm) | | Weight | 22 lbs (10kg) | | | | Package Weight | 27.1 lb | | Box Dimensions (LxWxH) | 23.0 x 17.6 x 7.3" |
