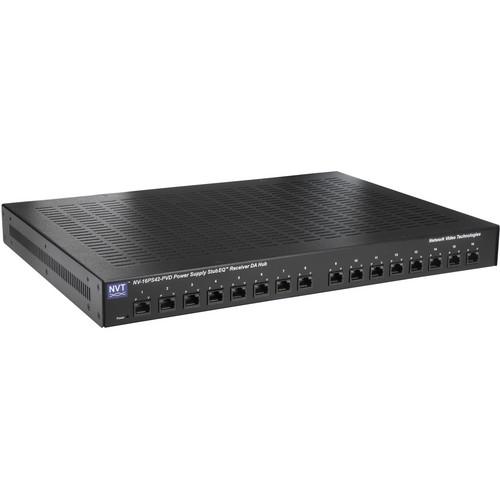

User Manual for NVT NV-16PS42-PVD Power Supply StubEQ Active Receiver Hub Click to enlarge the picture
Contents of the user manual for the NVT NV-16PS42-PVD Power Supply StubEQ Active
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
|
User manual for the NVT NV-16PS42-PVD Power Supply StubEQ Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description The NVT NV-16PS42-PVD Power Supply StubEQ Active Receiver Hub (16-Channel) provides Class 2 SELV 28 VAC power to 16 cameras while receiving video transmission and delivering P/T/Z telemetry all over a single Cat5 cable per camera. It consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Supporting camera current loads up to 1Amp/channel, the active receiver hub features a built-in distribution amplifier with 2 video outputs per channel. When used with any passive NVT transceiver, the receiver hub allows transmission of full motion CCTV video at distances up to 1500' (460m). The distance can be extended up to 2000' (600m) when used in conjunction with NV-653T Active Transmitter. The power supply hub features automatic-reset fault protection per channel, transient protection, ground loop free individually floating outputs, and power and video diagnostics. With adaptive StubEQ fully automatic 2-band equalization, the 16-channel receiver hub provides adjustment-free equalization. It ensures a zero loss video signal when connected to a DVR or IP encoder and supports frequency response ranges from DC to 10MHz. Ideal for use in the IDF or telecom closet or MDF or equipment room, the StubEQ Active Receiver Hub is compatible with NV-216A-PV, NV-218A-PVD, or NV-226J-PV transceiver at the camera. It includes diagnostic LEDs, 1U high and 12" deep wall, desk, or rack mount, and 2' (60cm) BNC cable. - Provides Class 2 SELV 28 VAC power to 16 cameras while receiving video transmission and delivering P/T/Z telemetry all over a single Cat5 cable per camera
- Consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring
- Supports camera current loads up to 1Amp/channel
- Built-in distribution amplifier with 2 video outputs per channel
- Adaptive StubEQ fully automatic 2-band equalization provides adjustment-free equalization
- When used with any passive NVT transceiver, the receiver hub allows transmission of full motion
- CCTV video at distances up to 1500' (460m)
- Supports up to 2000' (600m) when used in conjunction with NV-653T Active Transmitter
- Power supply features automatic-reset fault protection per channel, transient protection, ground loop free individually floating outputs, and power and video diagnostics
- Ensures a zero loss video signal for connection into a DVR or IP encoder
- Frequency response - DC to 10MHz
- Ideal for use in IDF or telecom closet or MDF or Equipment Room
- Compatible with NV-216A-PV, NV-218A-PVD, or NV-226J-PV transceiver at the camera
- Diagnostic LEDs to show load/no load, miswires, overload conditions, and video status
- 1U high and 12"deep wall, desk, or rack mount
- Meets CE, RoHS, WEEE regulatory standards
UPC: 735890001645 In the Box NVT NV-16PS42-PVD Power Supply StubEQ Active Receiver Hub (16-Channel) Rack Mount "L" Brackets (for front, rear, or wall installations) Rubber Feet for Desk Applications 16 x 2' (60cm) Coax Jumpers 7' (200cm) Molded IEC Power Inlet Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-16PS42-PVD Power Supply StubEQ Active Receiver Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-16PS42-PVD Specs | Transmission Range | Up to 1500' (457m) | | Video | Frequency response: DC to 10 MHz
Attenuation: 0.5 dB typ
Common-mode / Differential-mode rejection: 15 KHz to 10 MHz 60 dB typ
Impedance:
- Coax: female BNC 75 ohms
- UTP: RJ45 100 ohms
Network Wiring: One four-pair Category cable | | Power | Camera Power
Each camera is powered by a fully isolated (floating) 28 VAC Class 2 SELV output at up to 1 Amp (10 Amps aggregate to comply with CB/IEC 60065). Each output is individually thermistor protected for auto-reset.
Power
Power inlet: IEC with molded power cord (included)
Voltage: 115 / 230V
Current: 3.0 / 1.5 Amps
Protection: 5x20mm type T fuse 5Amp 250V
Wattage: 325 Watts
Heat:
- (NV-16PS42-PVD only) 175 BTU / Hour
- (NV-16PS42-PVD with cameras) 1,250 BTU / Hour | | Environmental | Ambient Temperature: -4 ~ +122°F (-20 ~ +50°C)
Humidity (non-condensing): 0 to 95%
Transient Immunity: per ANSI / 587 C62.41 | | Dimensions (WxHxD) | (including connectors)
19 x 1.7 x 12" (43 x 4.5 x 20cm) | | Weight | 23.5 lbs (10.7kg) | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 10.0" |
