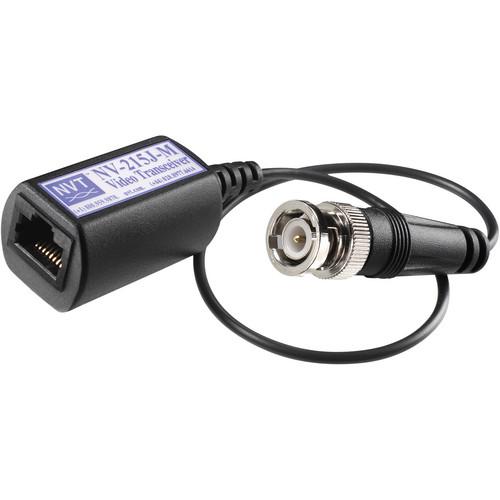

User Manual for NVT NV-215J-M Video Transceiver Click to enlarge the picture
Contents of the user manual for the NVT NV-215J-M Video Transceiver
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
|
User manual for the NVT NV-215J-M Video Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description The NVT NV-215J-M Video Transceiver (Passive) allows real-time monochrome or color video to be transmitted over a Cat 5 wire. It supports any type of baseband (composite) signals. When used in conjunction with any passive NVT transceiver or hub, the video transceiver can transmit full-motion CCTV video at a distance up to 750' (225m). With any StubEQ hub, the unit can transmit up to 1500' (460m) whereas with a DigitalEQ hub or NVT active receiver, it can transmit up to 3000' (1000m).The passive NV-215J-M is equipped with a 9" mini-coax pigtail lead to support in-camera mounting in most dome cameras and offers a RJ-45 pin for connection to Cat 5 wire. When used with any Active NVT Receiver, the transceiver is capable of delivering a fully equalized signal to the DVR. The built-in transient protection eliminates the need for a ground screw. Interference rejection and low emissions allow the video and low voltage power circuits to be placed within the same wire bundle, thus allowing the use of shared or existing cable plant. Without any added power requirements, the passive NVT Video Transceiver can send video. It has a DC frequency response up to 10MHz. - Allows real-time monochrome or color video to be transmitted over a Cat 5 wire
- Supports any type of baseband (composite) signals and offers wide compatibility for transmission media
- When used in conjunction with any passive NVT transceiver or hub, the video transceiver can transmit full-motion CCTV video at a distance up to 750' (225m)
- With any StubEQ hub, the transceiver can transmit up to 1500' (460m)
- With DigitalEQ hub or NVT active receiver, the maximum distance that can be transmitted is 3000' (1000m)
- 9" mini-coax pigtail lead supports in-camera mounting in most dome cameras
- RJ-45 terminal for connection to Cat 5 wire
- When used with any Active NVT Receiver, the transceiver is capable of delivering a fully equalized signal to the DVR
- Built-in transient protection eliminates the need for a ground screw
- Interference rejection and low emissions allow the video and low voltage power circuits to appear within the same wire bundle
- Frequency response ranges from DC to 10MHz
- No additional power requirements
UPC: 735890002154 In the Box NVT NV-215J-M Video Transceiver (Passive) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-215J-M Video Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-215J-M Specs | Transmission Range | Passive to passive: 750' (225m)
Passive to active: 3000' (1km) | | Video | Frequency response: DC to 10 MHz
Attenuation: 0.5 dB typ
Common-mode / Differential-mode rejection: 15 KHz to 10 MHz - 60 dB typ
Impedance:
- Coax: male BNC: 75 ohms
- UTP RJ45: 100 ohms | | Cable Type | Network Wiring: One Unshielded Twisted Pair, 24-22 AWG (0.5-0.64mm)
Category Type: 2 or better
Impedance: 100 ± 20 ohms
DC Loop Resistance: 52 ohms per 1000' (305m) - 18 ohms per 328' (100m)
Differential Capacitance: 19 pF/ft max (62 pF/m max) | | Power | No external power required | | Environmental | Ambient Temperature: -22 ~ +167°F (-30 ~ +75°C)
Humidity (non-condensing): 0 ~ 95%
Transient Immunity: per ANSI / 587 C62.41 | | Dimensions (WxHxD) | 1.7 x 1 x 1.8" (42 x 26 x 45mm) - cable lead is 9" (229mm) | | Weight | 2 oz (60g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 6.5 x 3.0 x 1.0" |
