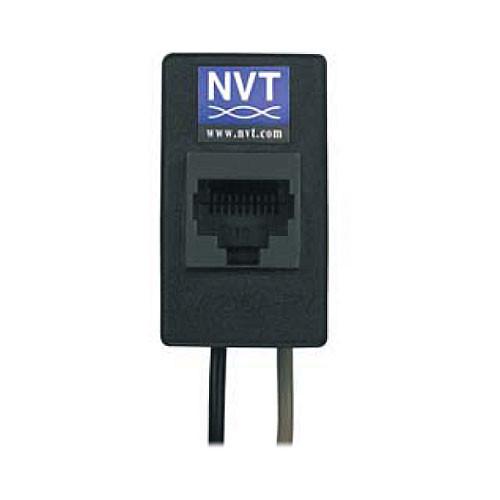

User Manual for NVT NV-216A-PV Passive Power Video Transceiver Click to enlarge the picture
Contents of the user manual for the NVT NV-216A-PV Passive Power Video Transceiver
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
 |
User manual for the NVT NV-216A-PV Passive Power Video Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description The NVT NV-216A-PV allows video signals and power to be transmitted over a UTP cable. Along with color or B/W video, this unit will also transmit Coaxitron (up the coax) signals over the same UTP cable, eliminating the need to run a separate control cable. Maximum supported cable distances are 3000' (1km) for video and power, and up to 750' (225 m) for PTZ control. A built-in transient protection function allows multiple signals to share the same cable without causing electrical interference problems. - Up to 3000' (1km) when used with an active receiver or hub

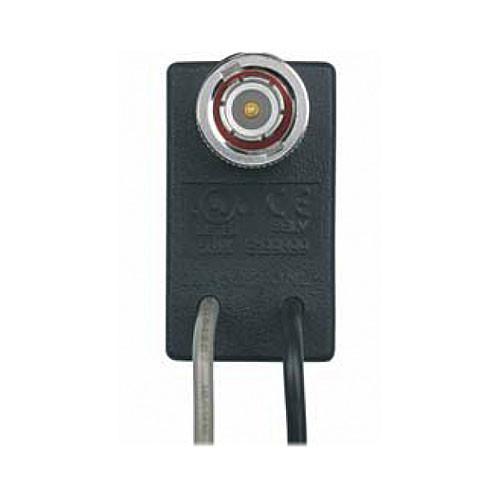

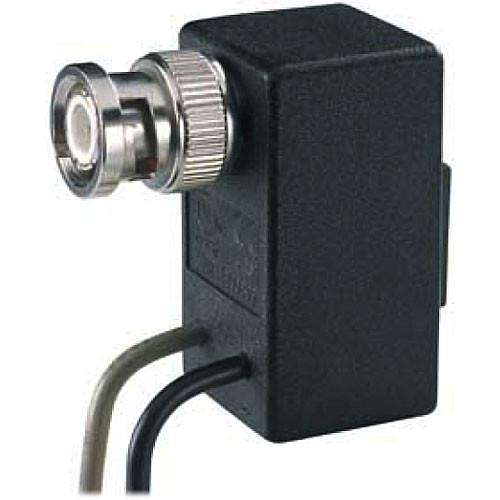

- Male BNC port for direct connection to camera
- Supports Coaxitron (up the coax) PTZ control up to 750' (225 m)
- Built-in interference and transient protection
UPC: 735890002161 In the Box NVT NV-216A-PV Passive Power/Video Transceiver Limited Lifetime Warranty User Manual PDF 780.7kbrqbwqvrzvswduw Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-216A-PV Passive Power Video Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-216A-PV Specs | Video Input | BNC Male x1 | | Video Output | RJ-45 x1
UTP x1 | | Maximum Cable Length | Video/Power: 3000' (1km)
Up the Coax: 750' (225 m) | | Power Requirements | No power required | | Operating Temperature | -22 ~ +167°F (-30 ~ +75°C) | | Dimensions (WxHxD) | 1.6 x 0.8 x 0.8" (41 x 22 x 21mm) | | Weight | 1 oz (30g) | | | | Package Weight | 0.125 lb | | Box Dimensions (LxWxH) | 6.5 x 3.0 x 0.9" |
