User Manual for NVT NV-218A-PVD Video-Power-Data Passive Transceiver Click to enlarge the picture
Contents of the user manual for the NVT NV-218A-PVD Video-Power-Data Passive Transceiver
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
 |
User manual for the NVT NV-218A-PVD Video-Power-Data Passive Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|

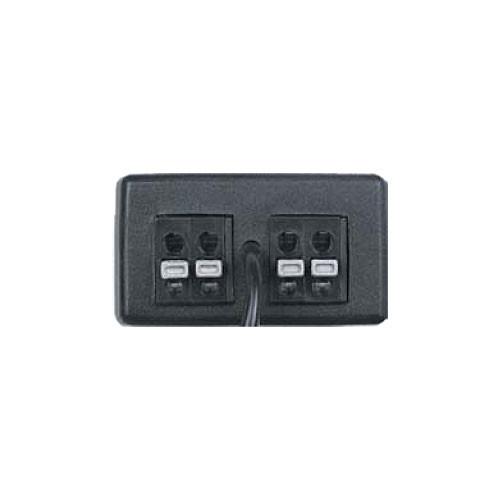

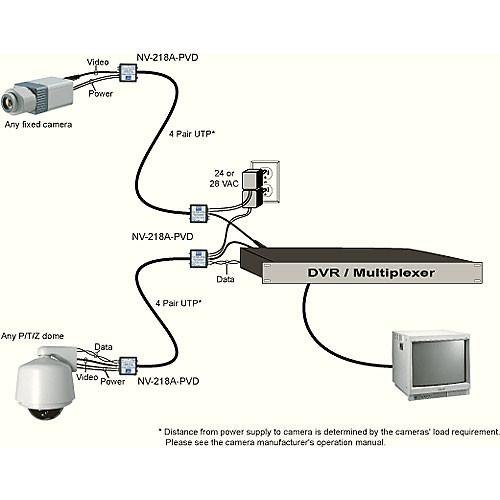

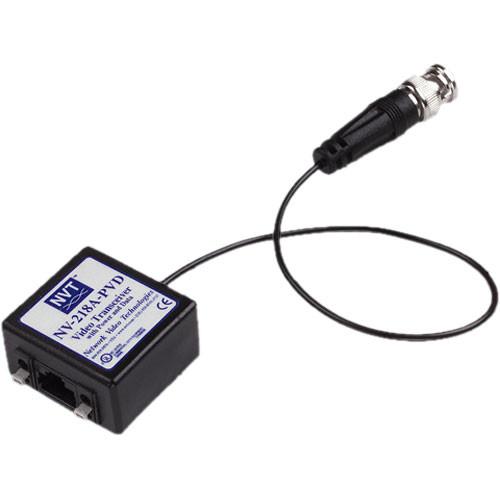

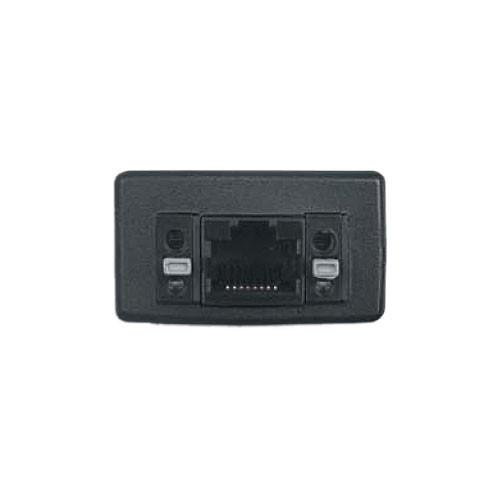

Product description The NVT NV-218A-PVD allows video, power and data to be routed over a UTP cable. For versatile connection options, it features a UTP, RJ-45 and a "Press-Fit" terminal bloc. Its compact profile along with a male BNC port at the end of a 9" pigtail cable provide easy connection to the camera, even inside a dome. Along with color and B/W video, this unit will also transmit Coaxitron signals over the same UTP cable, eliminating the need to run a separate control cable. A built-in transient protection function allows multiple signals to share the same cable without causing electrical interference problems. - Transmits power, video and Data (PVD) over a single UTP cable
- Up to 3000' (1km) when used with an active receiver or hub
- Supports Coaxitron (up the coax) control up to 750' (225 m)
- BNC port with 9" pigtail cable for in-camera mounting in most dome cameras
- Compatible with NV-704J-PVD and NV-716J-PVD for better cable management with IDF
- Built-in transient and interference protection
UPC: 735890002185 In the Box NVT NV-218A-PVD Video-Power-Data Passive Transceiver Limited Lifetime Warranty User Manual PDF 780.7kbdystztdqbwsbbsxxcbtuzerfbxrxba Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-218A-PVD Video-Power-Data Passive Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-218A-PVD Specs | Video Input | BNC x1 | | Video Output | RJ-45 x1
UTP x1
Press-Fit x1 | | Maximum Cable Length | Video/Power/Data: 3000' (1km)
Up the Coax: 750' (225 m) | | Power Requirements | No power required | | Operating Temperature | -4 ~ +167°F (-20 ~ +75°C) | | Dimensions (WxHxD) | 1.5 x 1.5 x 0.8" (38 x 39 x 22mm) | | Weight | 2 oz (60g) | | | | Package Weight | 0.185 lb | | Box Dimensions (LxWxH) | 6.5 x 3.0 x 1.2" |
