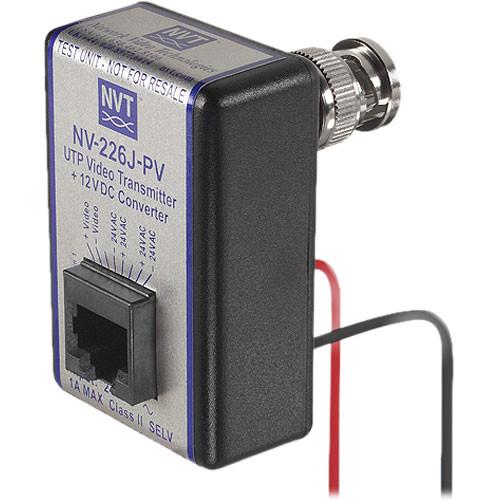

User Manual for NVT NV-226J-PV UTP Video Transmitter 12 VDC Converter Click to enlarge the picture
Contents of the user manual for the NVT NV-226J-PV UTP Video Transmitter 12
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
|
User manual for the NVT NV-226J-PV UTP Video Transmitter 12 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description The NVT NV-226J-PV combines a UTP transmitter with a 24VAC to 12VDC converter into a single compact and low cost unit. It is designed to mount on the rear of a fixed 12VDC camera, allowing the use of a single UTP cable to supply both video and power to the camera. - Compatible with NVT PVD power supply hubs and integrators
- Up to 3000' (1km) when used with an NVT active receiver hub
- Up to 750' (225 m) when used with an NVT passive receiver hub
- Built-in transient protection and interference rejection
UPC: 735890012269 In the Box NVT NV-226J-PV UTP Video Transmitter + 12 VDC Converter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-226J-PV UTP Video Transmitter 12 VDC Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-226J-PV Specs | Power Input | 13-30VAC/DC | | Power Output | 12VDC | | Maximum Cable Length | With Active Receiver: 3000' (1km)
With Passive Receiver: 750' ft (225 m) | | Operating Temperature | -4 ~ +167°F (-20 ~ +75°C) | | Dimensions (WxHxD) | 1.5 x 2.3 x 0.8" (39 x 57 x 21mm) | | Weight | 1.8 oz (50g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 3.6 x 2.2 x 1.9" |
