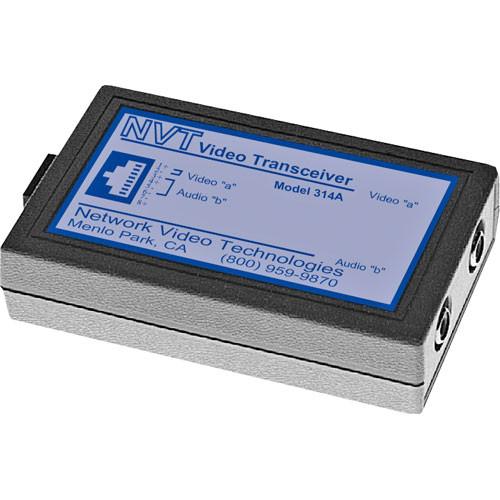

User Manual for NVT NV-314A Single Channel Passive Video Audio Transceiver Click to enlarge the picture
Contents of the user manual for the NVT NV-314A Single Channel Passive Video
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
 |
User manual for the NVT NV-314A Single Channel Passive Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description The NVT NV-314A converts the video and audio signal coming from a single CCTV device so that it can be transmitted over UTP (Unshielded Twisted Pair) telephone wires. Along with color and B/W video, this unit will also transmit Coaxitron (up the coax) PTZ control signals over the same UTP wire, eliminating the need to run a separate control cable. Some of the key advantages UTP has over a BNC cable is a lower cost, less bulkiness and most importantly, the ability to transmit over longer distances without suffering signal attenuation. A UTP transmitter is also an obvious choice for use in buildings already wired for UTP. - Long Distance Transmission

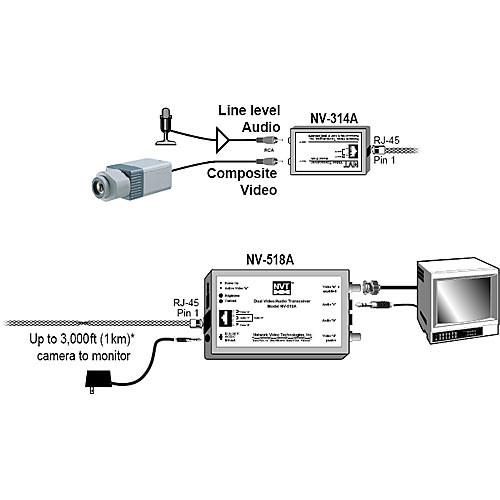

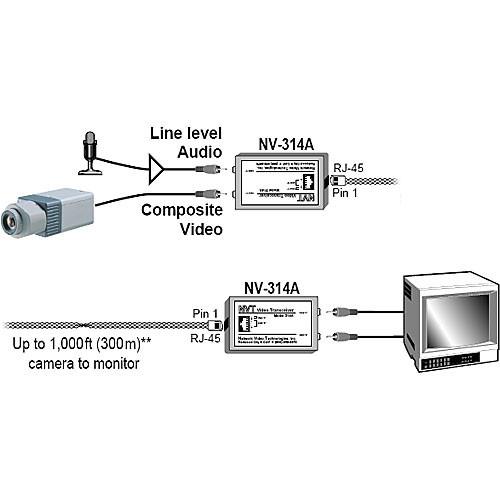

- The maximum UTP cable distance supported by this unit depends on the type of UTP receiver used at the other end of the cable. When used with an active receiver, transmission distances of up to 3000' (1km) are possible. With a passive receiver, signals can be transmitted up to 1000' (300 m). The maximum UTP cable distance for Coaxitron (up the coax) control is 750' (225 m), regardless of the type of receiver or UTP cable in use.
UPC: 735890000921 In the Box NVT NV-314A Single Channel Passive Video/Audio Transceiver Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-314A Single Channel Passive Video Audio Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-314A Specs | Video Inputs | RCA x1 | | Audio Inputs | RCA x1 | | Video Outputs | UTP (RJ-45) | | Maximum Cable Length | With Active Transceiver: 3000' (1km)
With Passive Transceiver: 1000' (300 m)
Up the Coax (Coaxial): 750' (225 m) | | Power Requirements | No external power required | | Operating Temperature | -4 ~ +167°F (-20 ~ +75°C) | | Dimensions (WxHxD) | 3.8 x 2.5 x 0.4" (95 x 64 x 10mm) | | Weight | 4 oz (100g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.7 x 2.7 x 1.8" |
