NVT NV-3242 StubEQ Active Receiver Hub

Search your instruction manual in PDF to download

User Manual for NVT NV-3242 StubEQ Active Receiver Hub

Click to enlarge the picture
NVT NV-3242 StubEQ Active Receiver Hub Contents of the user manual for the NVT NV-3242 StubEQ Active Receiver Hub
  • Product category: Signal Extenders NVT
  • Brand: NVT
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for NVT Signal Extenders

User manual for the NVT NV-3242 StubEQ Active Receiver Hub contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any NVT product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!



Product description

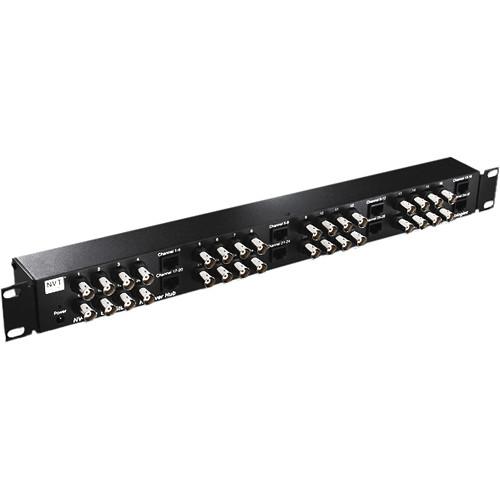

The NVT NV-3242 StubEQ Active Receiver Hub (32 Channels), with adaptive StubEQ fully automatic 2-band equalization, transmits real-time camera video for a maximum distance of 2000' (600m) using Cat2 or a better version of UTP cable, when used with the NV-653T active transmitter. The active hub automatically and continuously conditions the video signal, making up for cable attenuation, voltage transient, and ground loops, thereby saving significant installation and maintenance time. The built-in transient protection and ground-lifting eliminate voltage spikes damage and ground loops respectively. The unique interference rejection and low emissions allow the video and low voltage power circuits to appear within the same wire bundle, thus allowing the use of shared or existing cable plant. Connected through RJ-45, the receiver hub comes with 8 optional NV-RJ-45A RJ-45-to-screw-terminal adaptors. The hub is compatible with qualified UTP cameras and includes a 1U tall and shallow depth 19" rack mount with hardware and rubber stand for desk applications.
  • 32 Channels
  • Adaptive StubEQ fully automatic 2-band equalization provides adjustment-free equalization
  • Transmits real-time camera video for a maximum distance of 2000' (600m) using Cat2 or a better version of UTP cable
  • Built-in transient protection eliminates voltage spikes damage
  • Ground-lifting eliminates ground loops
  • Unique interference rejection and low emissions allow the video and low voltage power circuits to appear within the same wire bundle
  • RJ-45 connectivity with 8 optional NV-RJ45A RJ45-to-screw-terminal adaptors
  • Compatible with qualified UTP cameras
  • High density, 1U tall and shallow depth 19" compact rack mount with hardware
  • Rubber stand for desk applications
UPC: 735890032427 In the Box NVT NV-3242 StubEQ Active Receiver Hub (32 Channels)
  • 12VDC 1 Amp Regulated Power Module with IEC380-8 Inlet and Molded Power Cord
  • Rack mount "L" Brackets (for front, rear, or wall installations)
  • Rubber Feet for Desk Applications
  • 8 x NV-RJ45A RJ45-to-Screw-Terminal Adaptors
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the NVT NV-3242 StubEQ Active Receiver Hub in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    NVT NV-3242 Specs

    Frequency Response DC to 5 MHz
    Equalization 0.5 dB typ

    Automatic (no adjustment) 0 to 1,250' (0 to 380km) for NTSC or PAL standards
    Common Mode Rejection (common-mode / differential-mode rejection)

    15 KHz to 5 MHz: 60 dB typ
    Impedance Coax: female BNC 75 ohms
    UTP: Screw terminal block or RJ45 100 ohms
    Wiring Unshielded Twisted Pair: 0 to 1,500' (457.2 m) 24-16 AWG (0.5 - 1.31mm)
    Category: Type 2 or better
    Impedance: 100 ± 20 ohms
    DC Loop Resistance: 52 ohms per 1,000' (304.8 m) - (18 ohms per 328' / 100 m) Differential Capacitance 19 pF/ft max (62 pF/m max)
    LED Power: Blue=OK / Red=Fault
    Power Voltage: 115 / 230VAC
    Current: 125mA / 60mA
    Wattage: 15 Watts 50 BTU/Hour
    Frequency: 50 / 60 Hz

    (external 12VDC 1 Amp regulated power module with IEC380-8 inlet and molded power cord included)
    Operating Temperature 32 - 122°F (0 - 50°C)
    Dimensions (WxHxD) (excluding brackets and connectors)
    17 x 1.7 x 1.9" (43 x 4.5 x 4.8cm)
    Weight 3 lbs (1.4kg)
    Package Weight 3.0 lb
    Box Dimensions (LxWxH) 20.0 x 7.0 x 3.25"

    Rating

    90% users recommend this product to others. And what about you?
