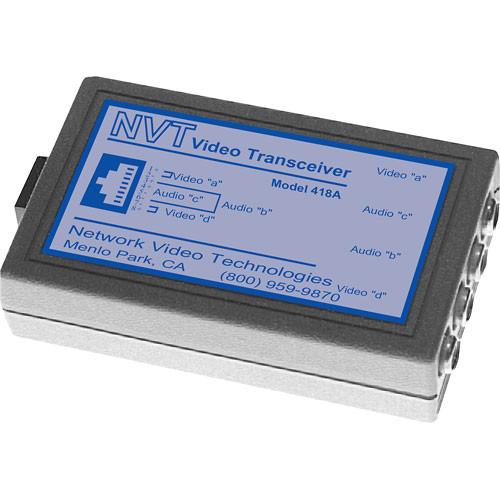

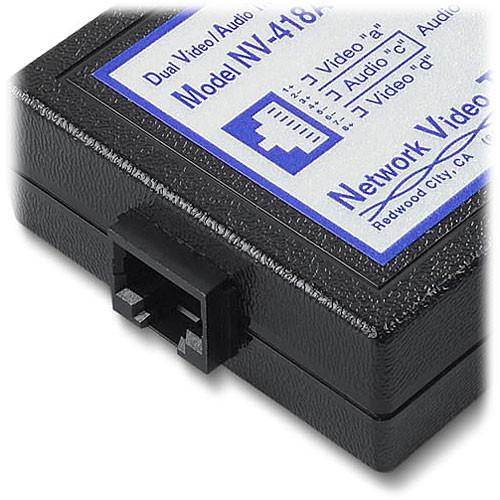

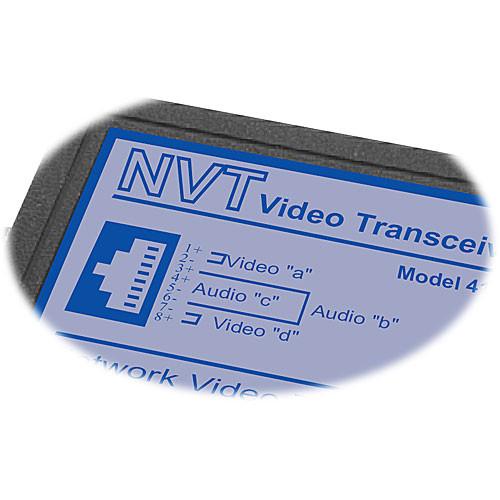

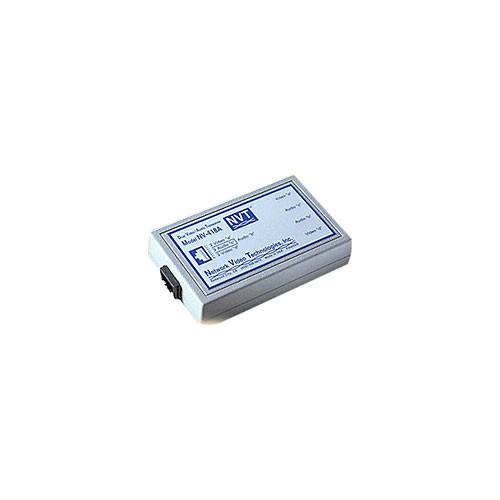

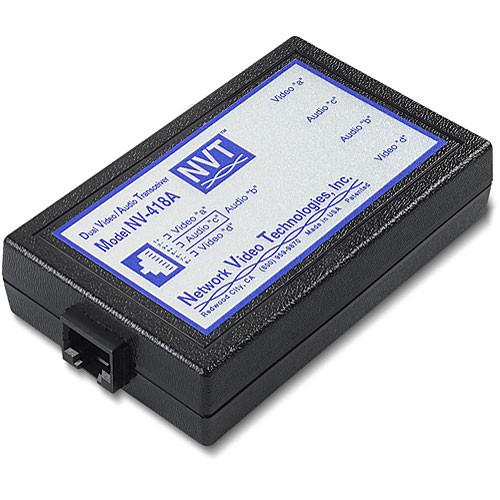

Product description The NVT NV-418A converts the video and audio signals coming from two CCTV devices so that they can be transmitted over UTP (Unshielded Twisted Pair) telephone wires. Along with video and audio, this unit will also transmit Coaxitron (up the coax) PTZ control signals over the same UTP wire, eliminating the need to run a separate control cable. Some of the key advantages UTP has over a BNC cable is lower cost, less bulkiness and most importantly, the ability to transmit over longer distances without suffering signal attenuation. A UTP transmitter is also an obvious choice for use in buildings already wired for UTP. - Long Distance Transmission

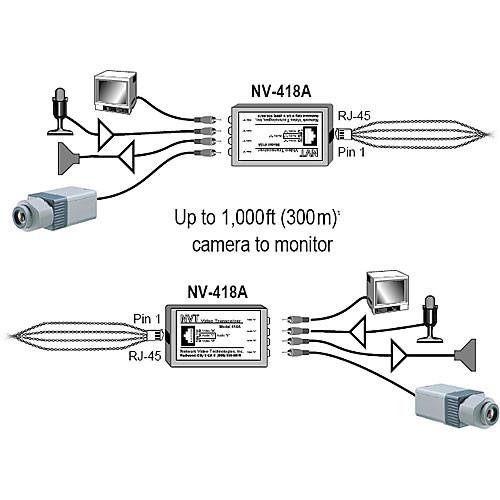

- The maximum UTP cable distance supported by this unit depends on the type of UTP receiver used at the other end of the cable. When used with an active receiver, transmission distances of up to 3000' (1km) are possible. With a passive receiver, signals can be transmitted up to 1000' (300 m). The maximum UTP cable distance for Coaxitron (up the coax) control is 750' (225 m), regardless of the type of receiver or UTP cable in use.
UPC: 735890000242 In the Box NVT NV-418A Dual Channel Passive Video/Audio Transceiver Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-418A Dual Channel Passive Video Audio Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

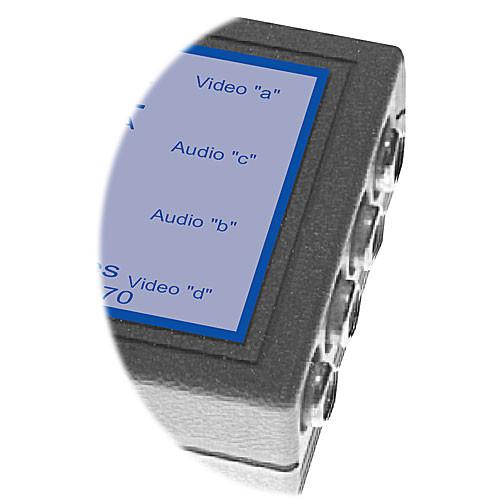

Technical parametersNVT NV-418A Specs | Video Inputs | RCA x2 | | Audio Inputs | RCA x2 | | Video Outputs | UTP (RJ-45) | | Maximum Cable Length | With Active Transceiver: 3000' (1km)
With Passive Transceiver: 1000' (300 m)
Up the Coax (Coaxial): 750' (225 m) | | Power Requirements | No external power required | | Operating Temperature | -4 ~ +167°F (-20 ~ +75°C) | | Dimensions (WxHxD) | 3.8 x 2.5 x 0.4" (95 x 64 x 10mm) | | Weight | 4 oz (100g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.7 x 2.7 x 1.9" |
