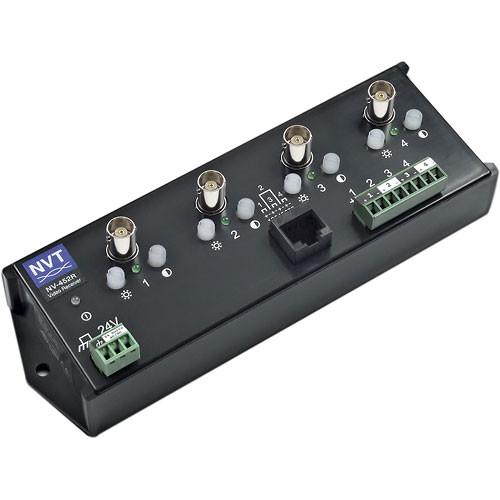

User Manual for NVT NV-452R 4-Channel Active Video Transceiver Click to enlarge the picture
Contents of the user manual for the NVT NV-452R 4-Channel Active Video Transceiver
- Product category: Signal Extenders NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Signal Extenders
|
User manual for the NVT NV-452R 4-Channel Active Video Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|
Product description The NVT NV-452R is an active transceiver capable of transmitting 4 channels of video over a single UTP cable. Transmission distances range between 3000' (1km) and 1.5 miles (2.4km), depending on the type of receiver and cable used - Up to 3000' (1km) when used with a passive transceiver
- Up to 5280' (1.6km) when used with the NV-653T transmitter and Cat2/3 cable
- Up to 1.5 miles (2.4km) when used with an NV-653T and Cat5 cable
- Brightness & sharpness controls plus blue power LED and green active LEDs
- Built-in transient protection and ground lifting
- Two units can be rack mounted using the NV-RM8/10 rack panel kit
UPC: 735890007647 In the Box NVT NV-452R 4-Channel Active Video Transceiver Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-452R 4-Channel Active Video Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-452R Specs | Video Input | BNC x4 | | Video Output | UTP x1 | | Maximum Cable Length | With Passive receiver: 3000' (1km)
With Active Receiver (NV-653T) & Cat2/3 Cable: 5280' (1.6km)
With Active Receiver (NV-653T) & Cat5 Cable: 1.5 miles (2.4km) | | Power Requirements | 24VAC/DC | | Power Consumption | 250mA | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (WxHxD) | 7.3 x 2.4 x 1.7" (184 x 60 x 41mm) | | Weight | 11.2 oz (318g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 7.8 x 2.7 x 2.2" |
